Description:

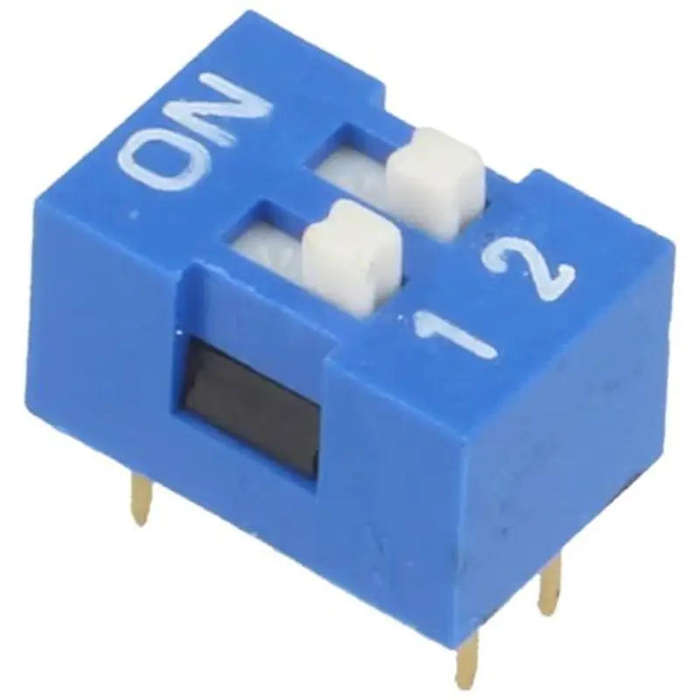

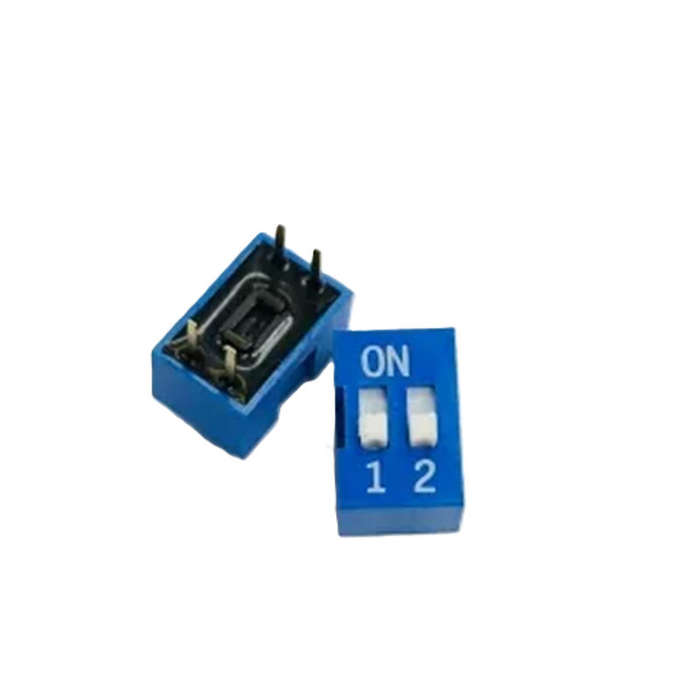

• A 2-Way DIP Switch (Blue) is a tiny, dual-position sliding switch used on printed circuit boards (PCBs) to regulate the flow of power between circuits.
• Compact size: Ideal for applications where space is restricted.
• Ease of use: A simple sliding mechanism allows for effortless operation.
• Reliability: Intended for long-term use with little wear and tear.
• Mounting Options: Available in right-angle and straight versions to accommodate various PCB layouts.

Specifications:

• Model: 2-Way DIP Switch (Blue).
• Material: Durable plastic housing, metal contacts.
• Switch Type: Slide (On-Off).
• Contact Rating: Up to 0.5A at 24V DC.
• Contact Resistance: Less than 1 ohm when closed.
• Insulation Resistance: Greater than 100M ohms at 500V DC.
• Operating Voltage: 24V DC.
• Pitch: 2.54mm (standard DIP spacing).
• Mounting Type: Through-hole or surface mount.
• Dimensions: Length: 6.5mm, Width: 10mm, Height: 7mm.
• Lifespan: Up to 2000 cycles.
• Features: Waterproof, dustproof, anti-static, and oil-resistant.
• Colour: Blue.
