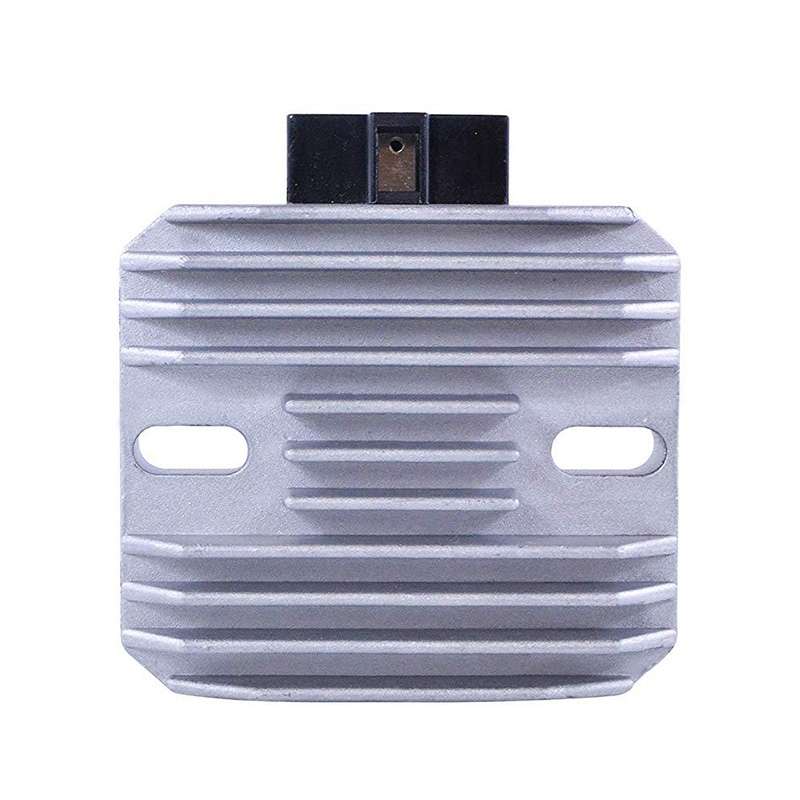

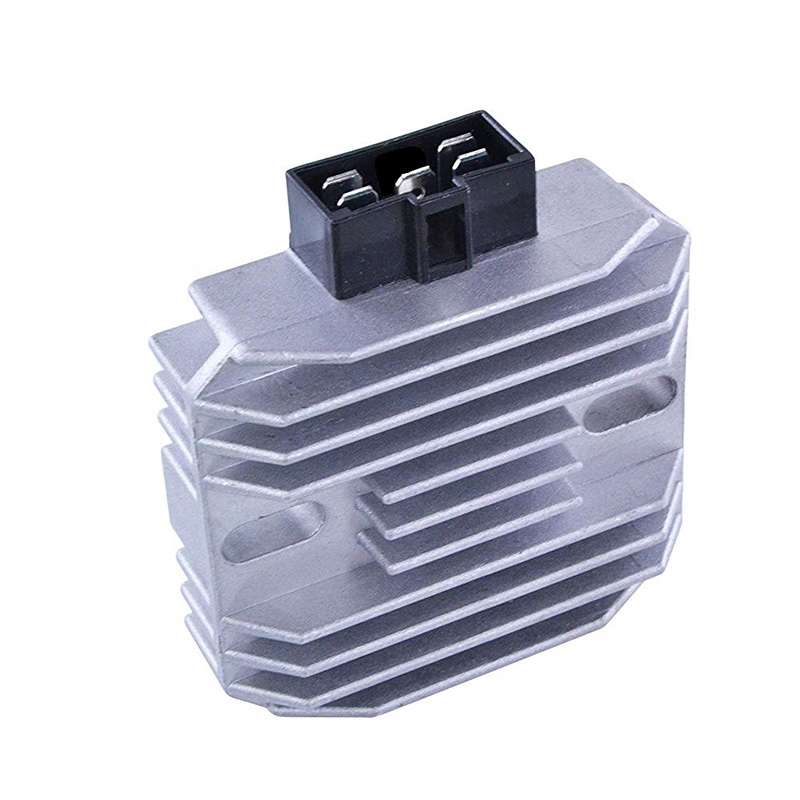

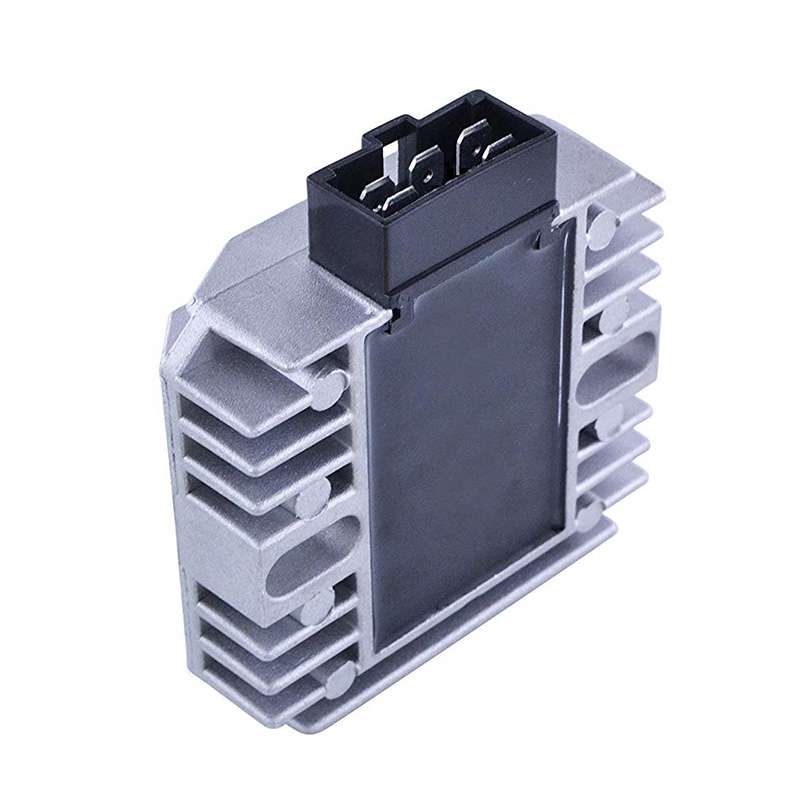

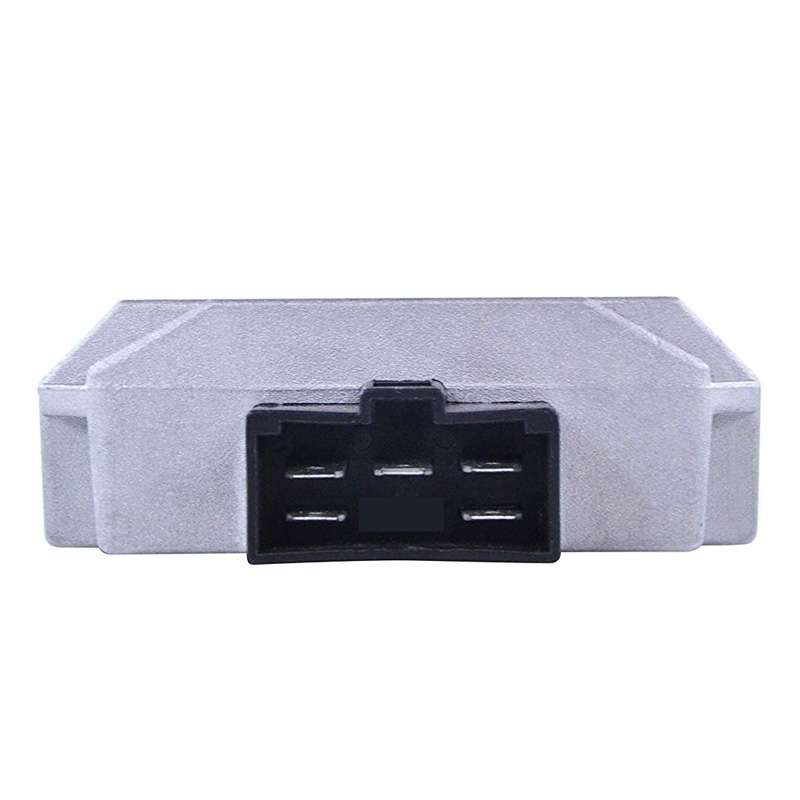

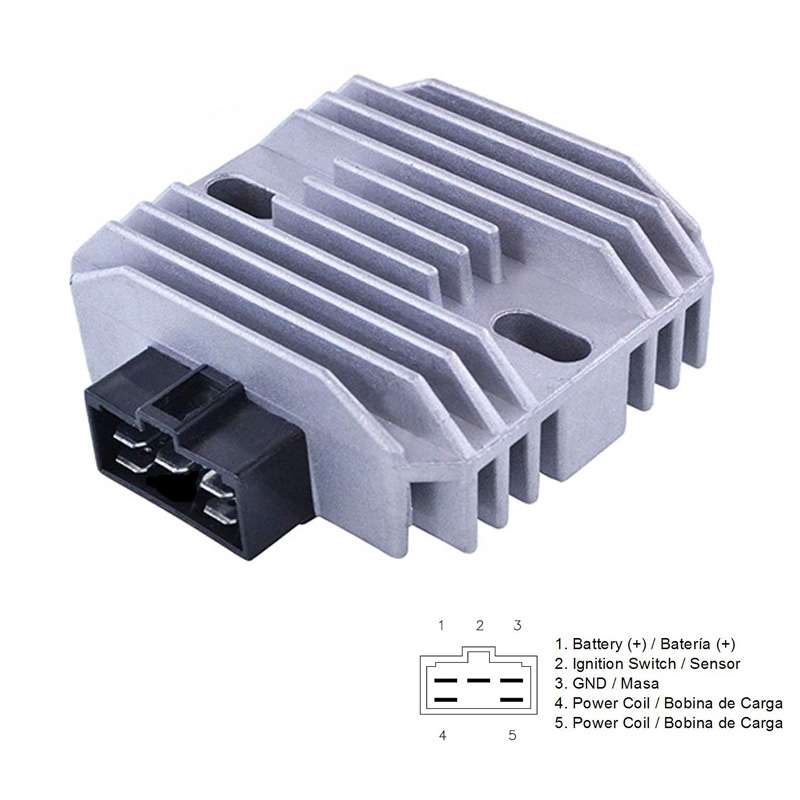

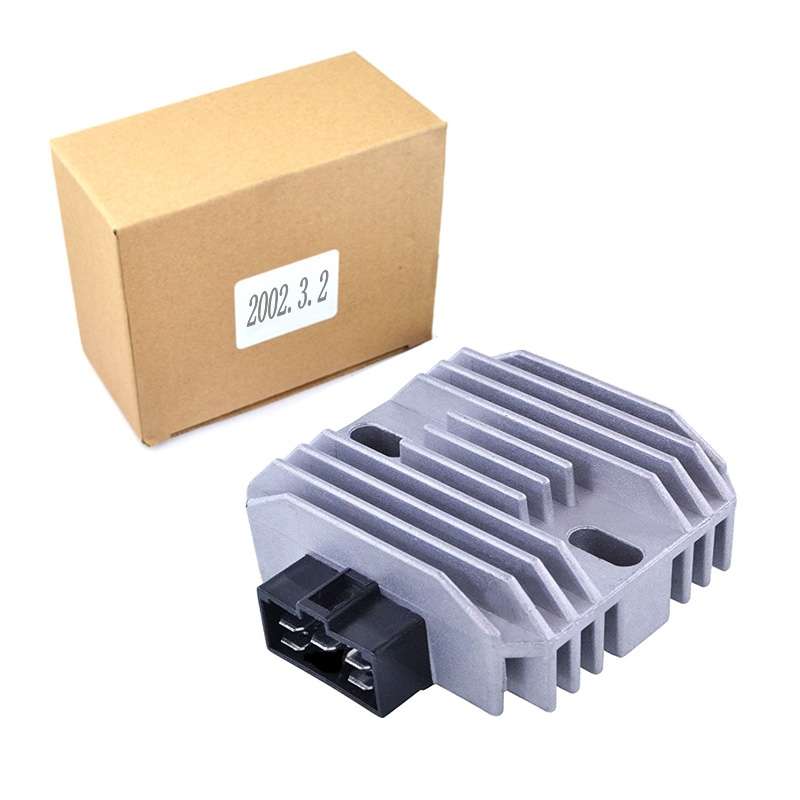

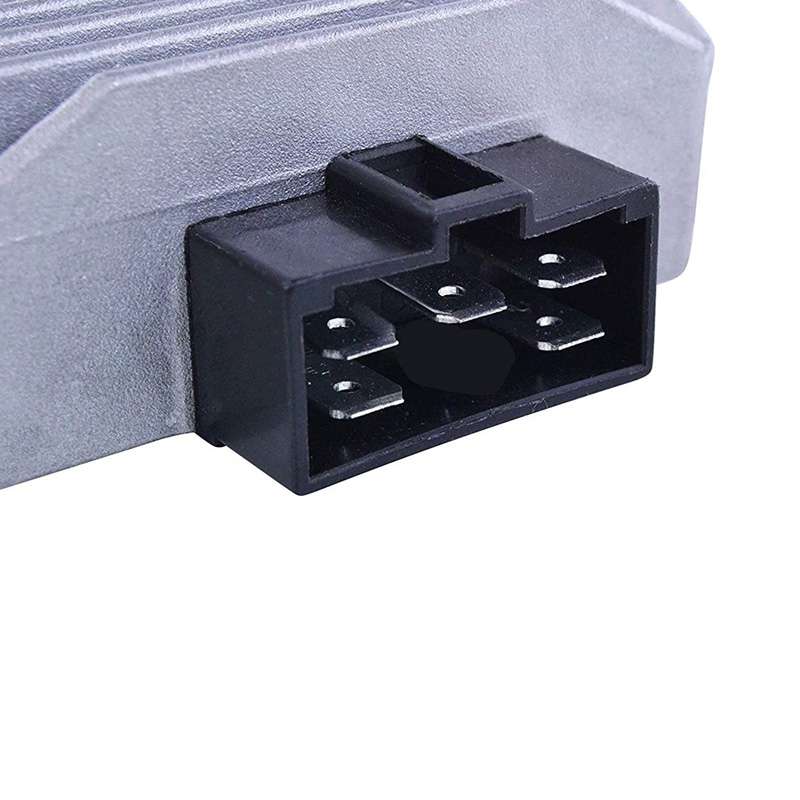

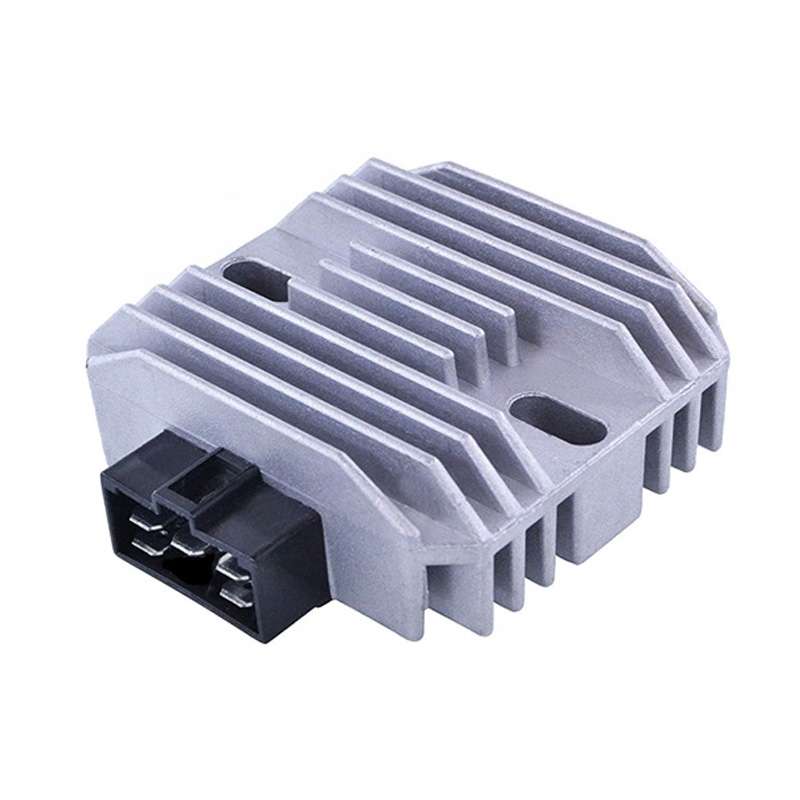

2002.3.2 Motorcycle Rectifier For Honda HT 4213 3810 381331600-890-951 / SH547-12

TBD0546533101

1. Weight: 230G
2. Category: Three-phase full-wave rectifier
3. Output current: 20A
4. Output voltage: 14.5V

Installation precautions:
1. The rectifier should be installed in a location with good ventilation and good heat dissipation. High temperature will be generated when the rectifier is working, and poor heat dissipation will damage the rectifier
2. The installation steps of the rectifier are to connect the AC input line, the positive and negative output are not connected, start the locomotive, measure the positive and negative output voltage, and when the voltage range is reasonable, plug in the positive and negative wires, and then test the positive and negative of the battery or rectifier If the voltage range is unreasonable, stop using it and give feedback. The entire installation process should be recorded and saved.
3. Pay attention that the rectifier should be closely attached to the frame when installing it, which is good for heat conduction. You can also add thermally conductive glue between the rectifier and the frame
4. No other wires should be pressed between the rectifier and the frame
5. There should be a fuse fuse between the positive outlet of the rectifier and the battery to prevent the overvoltage from burning out other electrical devices when the rectifier is damaged.

Applicable models:
For Honda H 5013 A2/AC2 A4/AC4 31600-890-951 / SH547-12
For Honda HT 3810 Lawn Tractor 31600-890-951 / SH547-12
For Honda HT 3813 Lawn Tractor 31600-890-951 / SH547-12
For Honda HT 4213 Lawn Tractor 31600-890-951 / SH547-12
For Honda RT 5000 31600-890-951 / SH547-12 31600-ZE2-861
