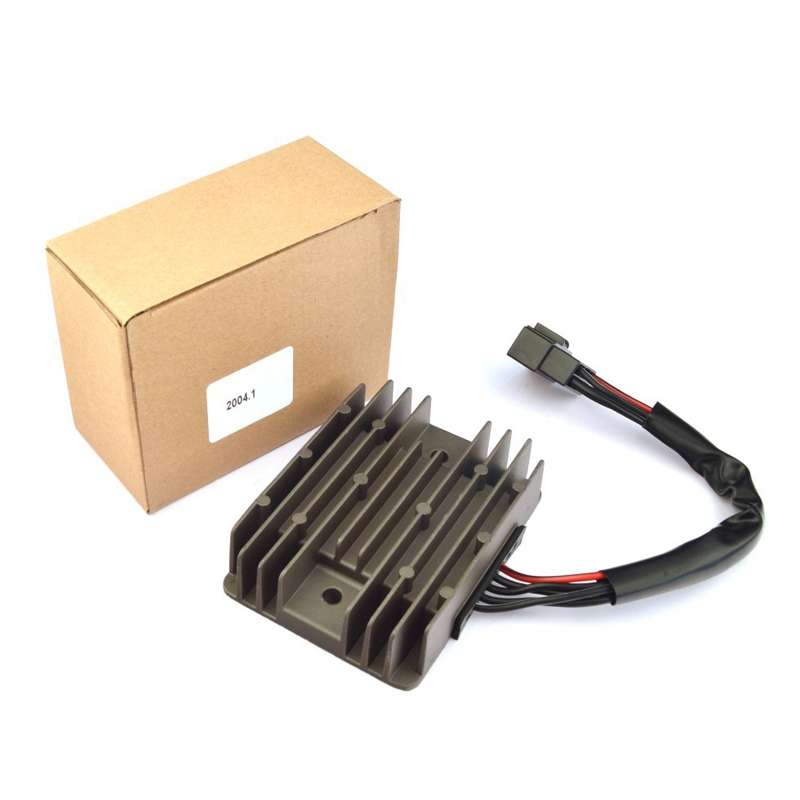

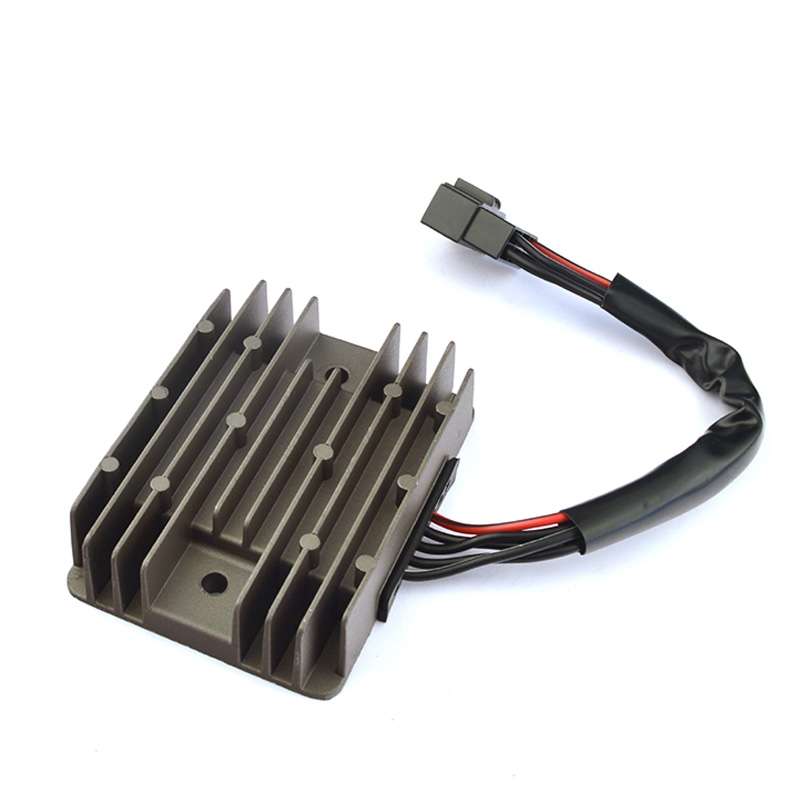

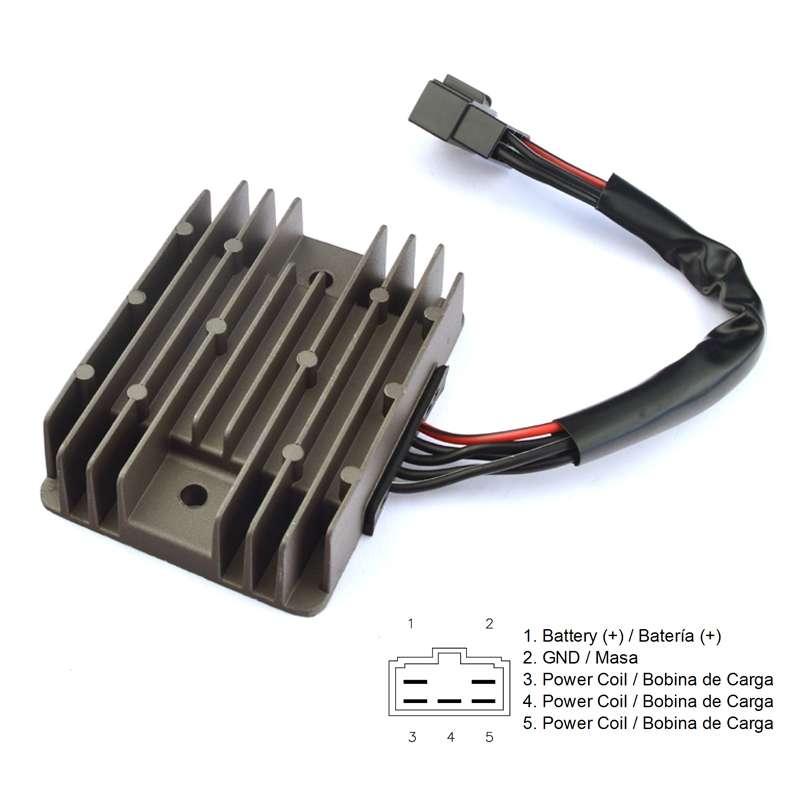

2004.1 Motorcycle Rectifier For Suzuki GSXRGSF / 600 / 650 / 750 / 1000 / 1250

TBD05476001

1. Weight: 300G
2. Output voltage: 14.5V
3. Output current: 35A
4. Wire length: 1.5 square meters x 25CM

Installation Precautions:
1. The rectifier should be installed in a location with good ventilation and good heat dissipation. High temperature will be generated when the rectifier is working, and poor heat dissipation will damage the rectifier
2. The installation steps of the rectifier are to connect the AC input line, the positive and negative outputs are not connected, start the locomotive, measure the positive and negative output voltages, and when the voltage range is reasonable, plug in the positive and negative wires, and then test the positive and negative of the battery or rectifier If the voltage range is unreasonable, stop using it and give feedback. The entire installation process should be recorded and saved.

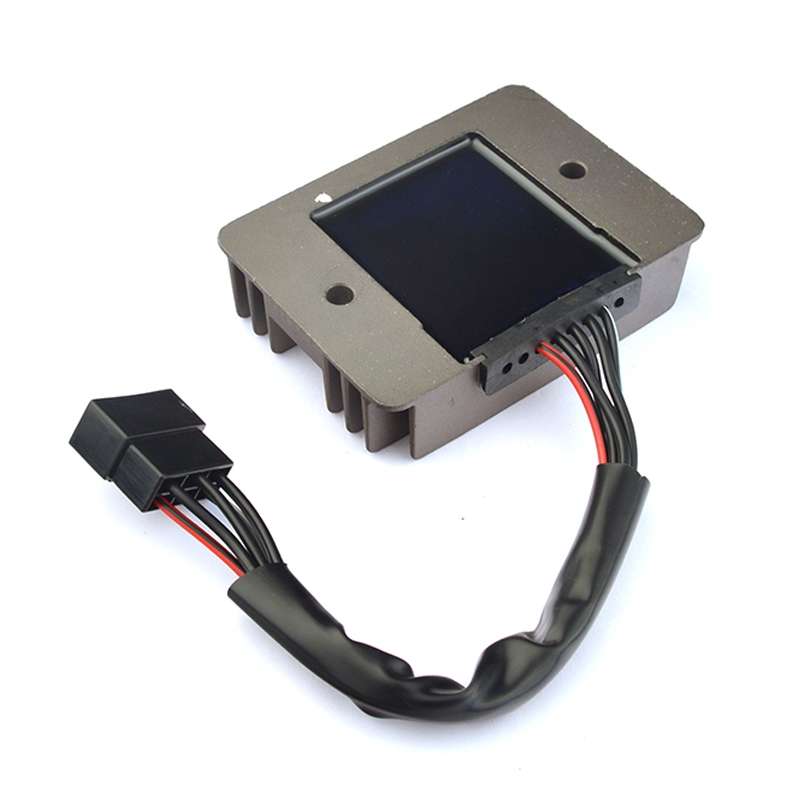

3. Note that the rectifier should be closely attached to the frame when installing it, which is good for heat conduction. You can also add thermal conductive glue between the rectifier and the frame
4. No other wires should be pressed between the rectifier and the frame
5. There should be a fuse fuse between the positive outlet of the rectifier and the battery to prevent the rectifier from being damaged when the voltage is too large and other electrical components will be burned.

Applicable models:
For 2312
For Reemplazo Kokusan Nki RS41-29
For Suzuki-32800-33E21
For Suzuki GSX R 600 2001 2005 32800-33E20
For Suzuki GSX R 750 1998 2005 32800-33E20
For Suzuki GSX R 1000 2001 2004 32800-33E20
For Suzuki GSX R 600 1997 2000 32800-33E00
For Suzuki GSX R / RZ-Hayabusa 1300 1999 2003 32800-33E10
For Suzuki GSX R 1000 2001 2002 32800-33E10
For Suzuki GSX R-Hayabusa 1300 1999 2006 32800-33E20
For Suzuki GSX R 750 1996 1999 32800-33E00
For Suzuki VL Intru r 1500 1998 2004 32800-44D10
