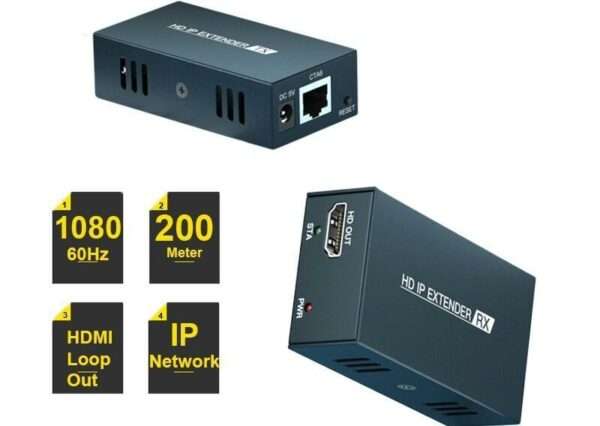

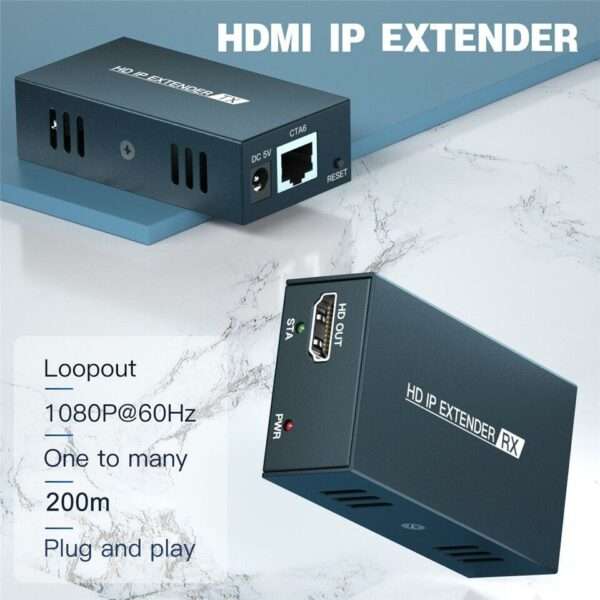

200m HDMI Over IP Extender

ZY-DT236,Navceker HDMI extender provides extension of HDMI signals long distances over a single CAT5/5e/6 cable, it supports high resolution up to 1080P signal transmission. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.

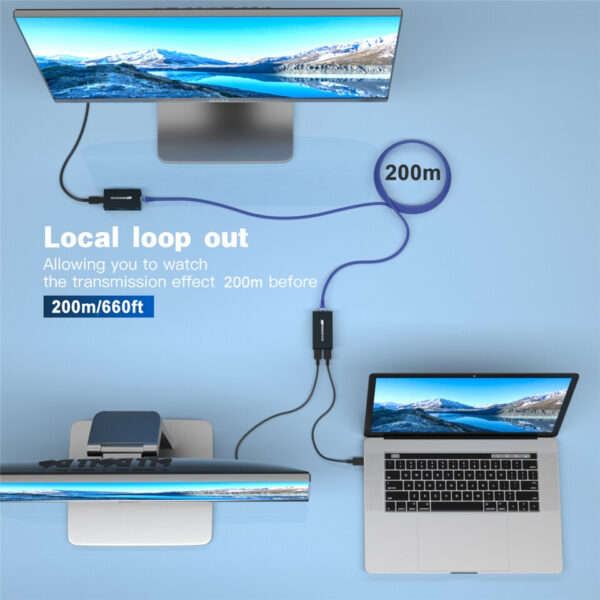

Long range transmission: up to 200m/660ft over a single CAT6 cable,
Video resolution:480P,576P,720P,1920×1080@60Hz,
Audio sampling rate:32kHz, 44.1kHz and 48kHz ,
Audio Format: DTS-HD/Dolby-true HD/LPCM7.1/DTS/DSD ,

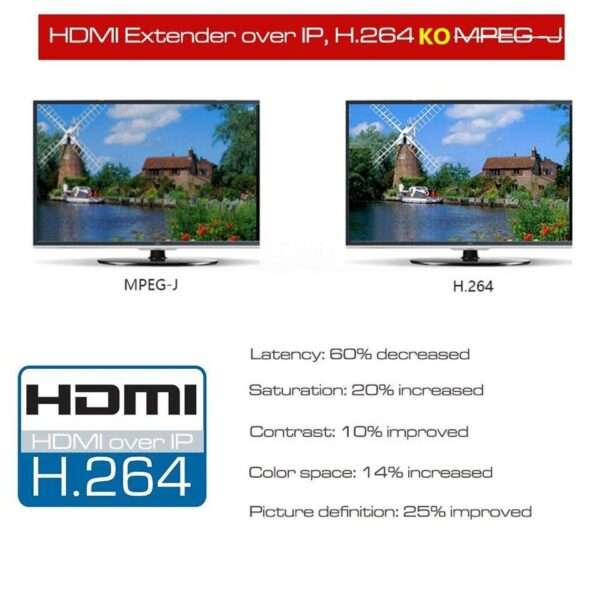

Compressed mode:H.264 technology,
Male to male: one TX to one RX application,

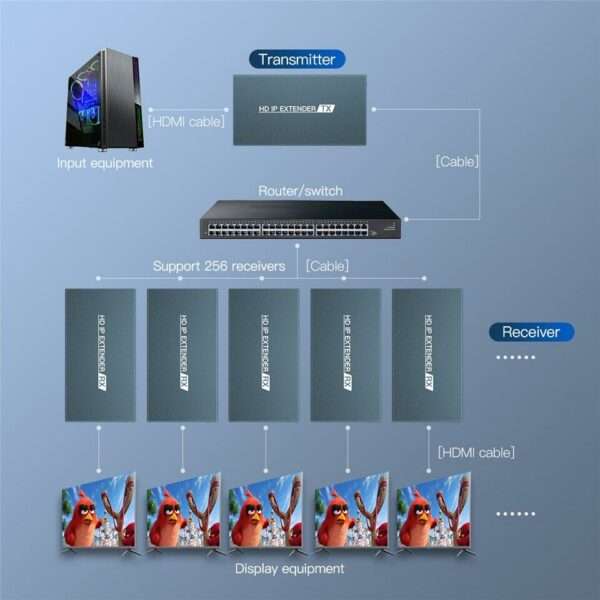

Male to female: TCP/IP, one TX to N RX(Max:253 pcs RX) application with Ethernet switch/Router,
IEEE-568B:standard 802.3 Ethernet 10/ 100/ 1000Mbps,
Video standard: compliance with HDMI 1.3 and HDCP 1.2 standard,
Local EDID function :match many kinds of display devices,
Built-in automatic adjustment system: make the image smooth, clear and stable,
Built-in ESD protection system make transmission much safer. Perfect HDMI extension adapter for large homes, factories, construction sites, data control centers etc. plug and play
Simple to install, plug and play

Barcode: 8901835288828

Package Weight: 438g

Package Dimension: 10,7cm x 14,3 x 6,5 (L x W x H)

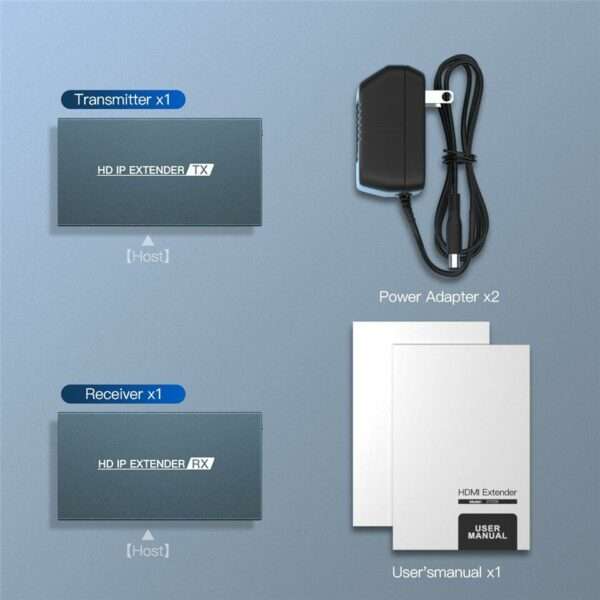

Package Includes:
1 x 200M HDMI Over IP Extender
