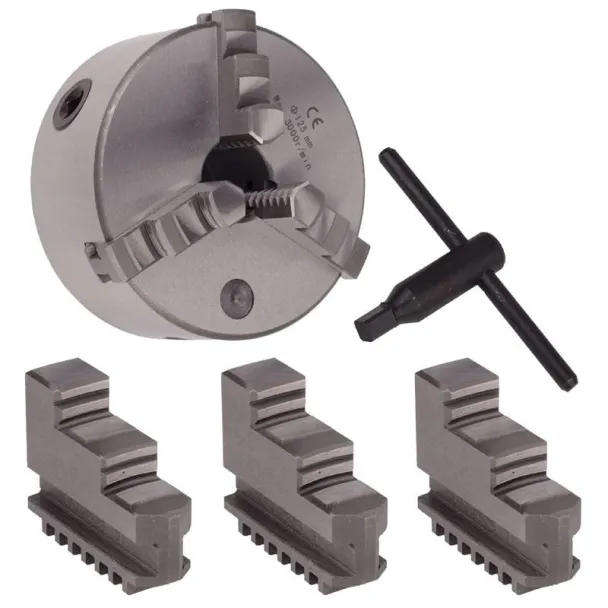

200mm 3-Jaw Self-Centering Chuck
This high-precision 3-jaw self-centering chuck is designed for use with engineering lathe machines. Its self-centering design ensures even clamping on cylindrical workpieces, while the included reverse jaws and chuck key allow for quick and versatile adjustments. Built for accuracy and durability, it's a reliable choice for machining operations.
Features
Precision-machined 3-jaw self-centering design
Ensures balanced clamping on round workpieces
Includes reverse jaws for wider clamping range
Comes with chuck key for fast and easy adjustments
Compatible with a range of engineering lathes
Specifications
Chuck Diameter (D): 200 mm
Registration Recess Diameter (D1): 165 mm
Bolt Circle Diameter (D2): 182 mm
Center Hold (D3): 65 mm
Registration Recess Depth (h): 5 mm
Max Height (H): 109 mm
Body Thickness (H1): 75 mm
Number of Bolts: 3
Size of Bolts: M10
Maximum RPM: 3,000
Handle Length: 160 mm
