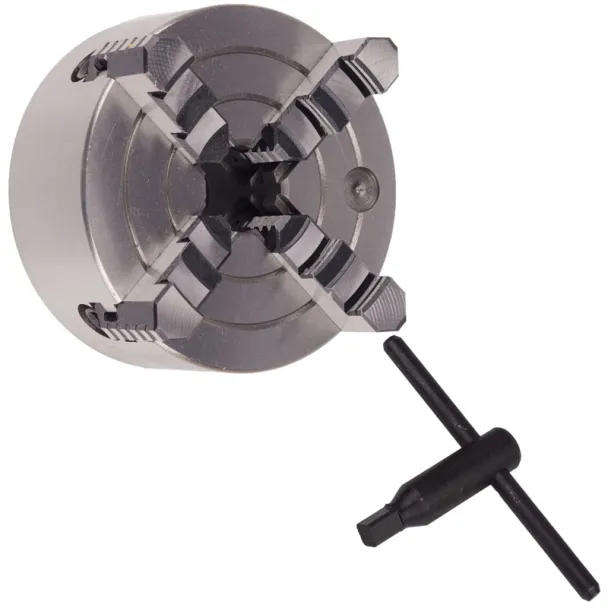

200mm 4-Jaw Independent Chuck
This high-precision 4-jaw independent chuck is commonly used on engineering lathe machines. Each jaw is separately adjustable, making it ideal for gripping irregular, square, or off-center workpieces. Built for reliable and accurate performance, it is a valuable tool for versatile turning operations in any machine shop.
Features
High-precision lathe accessory
Independently adjustable 4-jaw design
Suitable for clamping non-cylindrical and off-center parts
Designed for use with engineering lathes
Includes chuck key for easy jaw adjustment
Specifications
Chuck Diameter (D): 200 mm
Registration Recess Diameter (D1): 75 mm
Bolt Circle Diameter (D2): 95 mm
Center Hold (D3): 56 mm
Registration Recess Depth (h): 6 mm
Max Height (H): 110 mm
Body Thickness (H1): 75 mm
Number of Bolts: 4
Size of Bolts: M10
Handle Length: 160 mm
