20x20mm MAMBA Stack DJI F722 Mini MK2 Flight Controller F40_BLS MINI / F40... (VERSION: F40_BLSMINI)
Closed

20x20mm MAMBA Stack DJI F722 Mini MK2 Flight Controller F40_BLS MINI / F40... (VERSION: F40_BLSMINI)

New 12 were available
R1,870.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
617621146

SELECTED OPTION:
VERSION: F40_BLSMINI

Description:

Brand: Diatone

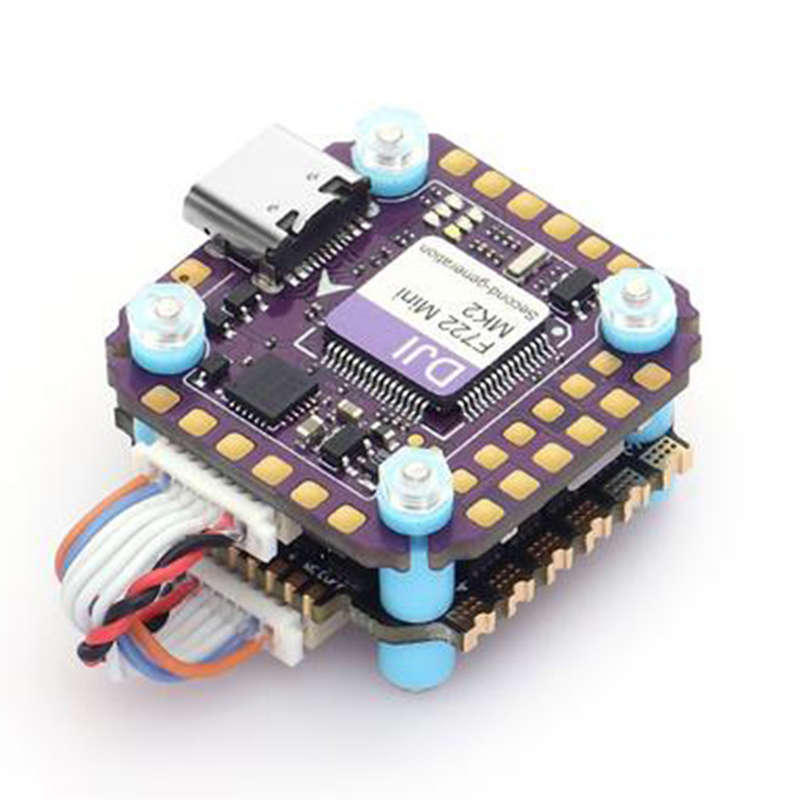

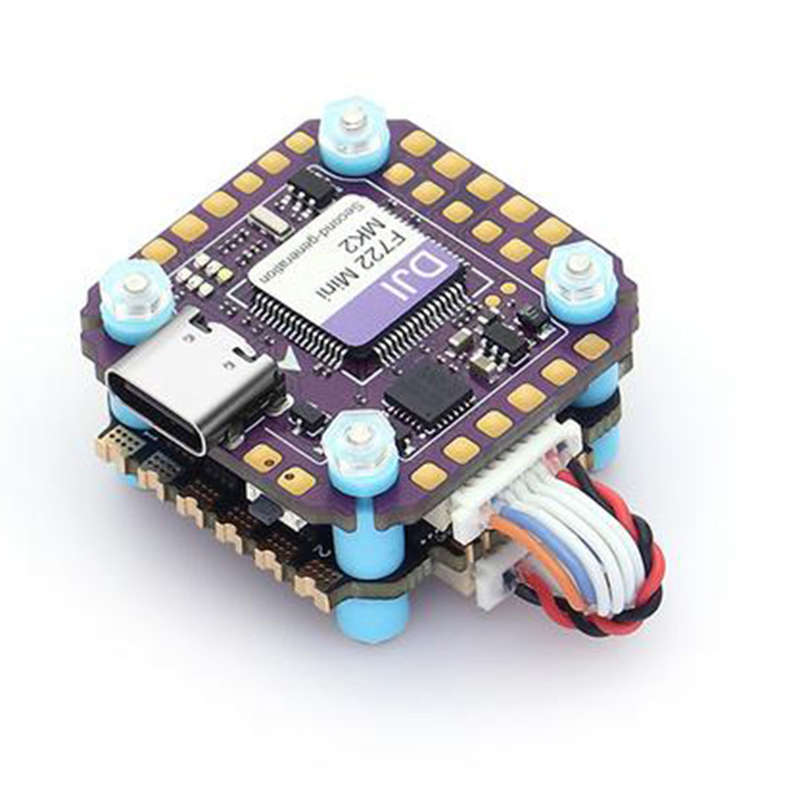

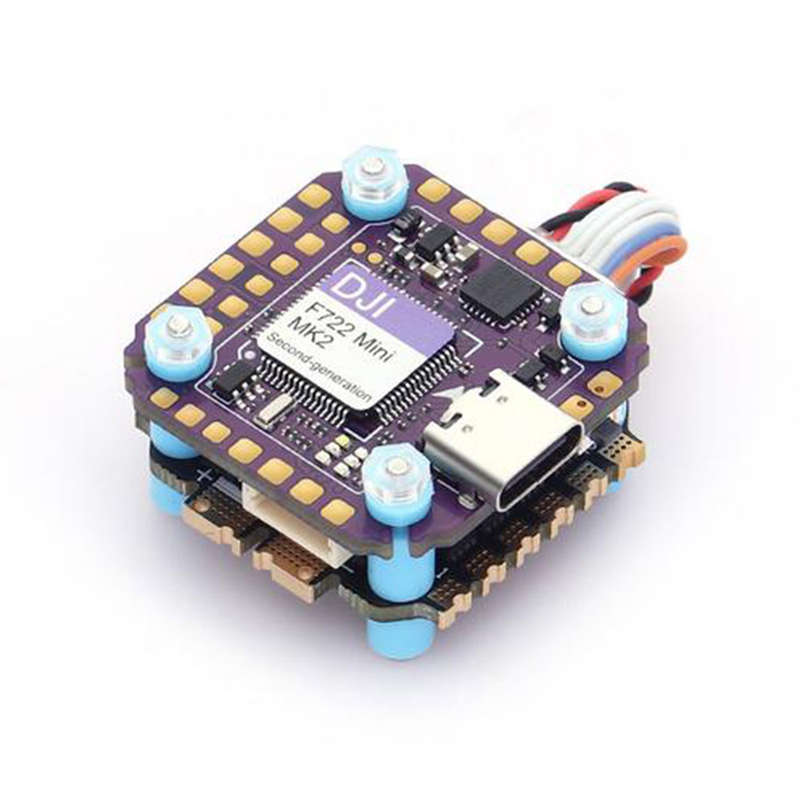

Item Name: MAMBA DJI F722 MINI MK2 FC F40 MINI PRO/F40_BLS MINI Stack

Monting: 20x20mm,M2

Size: 29x30.5x8mm

Weight: 6g

?DJI F722MINI MK2

MCU: 216MHz STM32F722RET6

GYRO: MPU6000

Barometer: Yes

OSD: Yes

Blackbox: NO

Uarts: 6 Set

ESC Soft: Dshot300/600/1200

ESC Telemetry: Yes

Power Led: Yes

LED Controller: BF LED

F.Port: Yes

RSSI: NO

Buzz: Yes

Input: 2~6S Lipo (8.4~25.2V)

TVS Protection: Yes

BEC: 3.3V 0.5A&? 5V 2.5A &???DJI??? 9V 2A?

MOUNTING: 20mm, M2

F40 MINI PRO

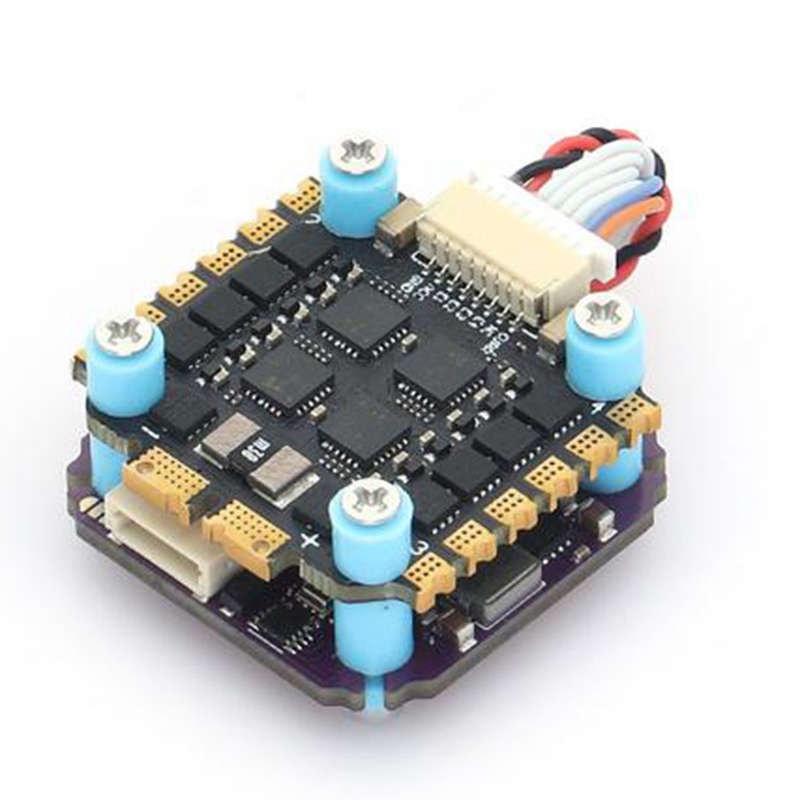

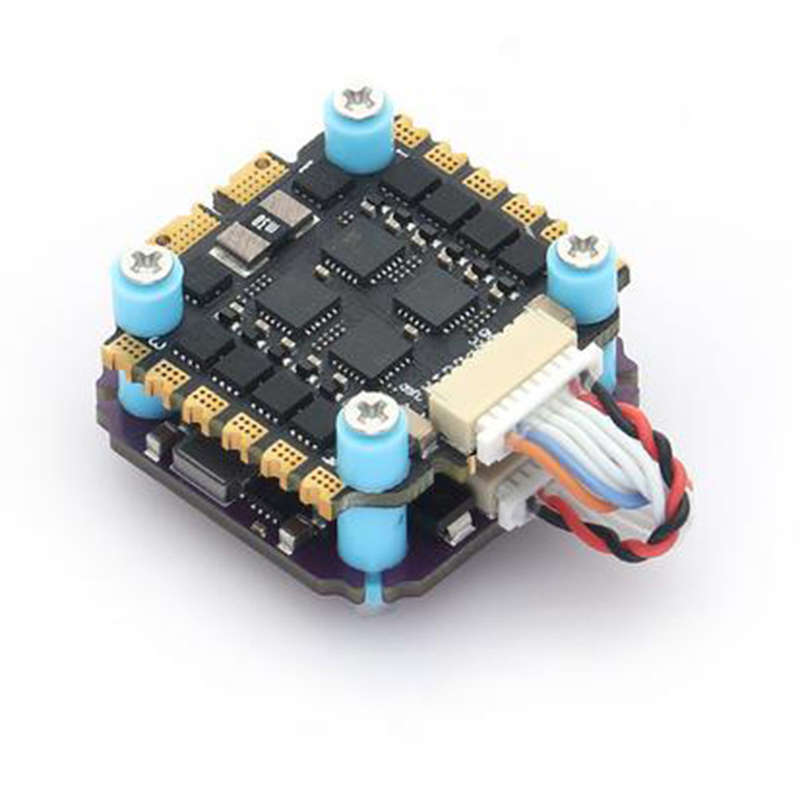

MAMBA F40 MINI PRO

INPUT VOLTAGE: 2~6S Lipo (8.4V~25.2V)

CONTINUE CURRENT: 40A??4

BURST CURRENT: 45A (10S)

BEC: No

Target: MAMBA F40MINIPRO

Firmware: Blheli_32

SOFT: Dshot300/600/1200

TVS Protection: Yes

MOUNTING: 20mm, M3/M2

F40_BLS MINI

INPUT VOLTAGE: 2~5S Lipo (8.4V~25.2V)

CONTINUE CURRENT: 40A??4

BURST CURRENT: 45A (10S)

BEC: No

Target: BLHeli_S CH40

Firmware: Blheli_S

SOFT: Dshot300/600

TVS Protection: Yes

MOUNTING: 20mm, M3/M2


Package Included:

1x MAMBA DJI F722 MINI MK2 Flight Controller

1x MAMBA F40 MINI PRO/F40_BLS MINI ESC(Optional)

1x High-Frequency 470uF/35V

2x 8pin sh1.0

1x DJI 8pin

2x 16AWG 60mm?

1x AMASS Original XT60
