24-PORT 10/100 IRON ETHERNET

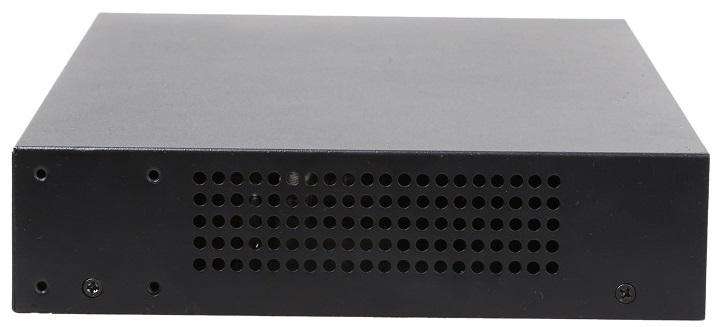

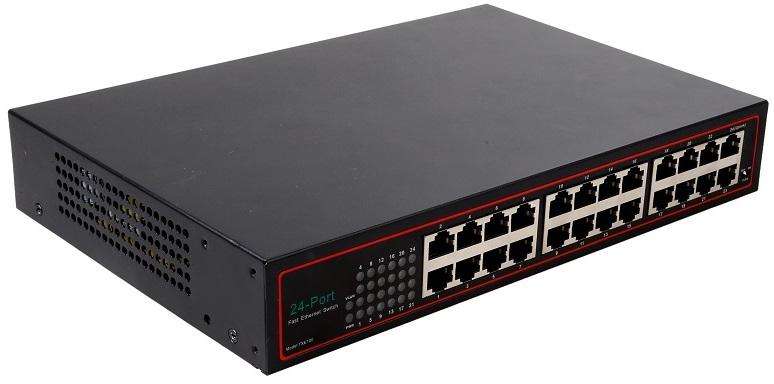

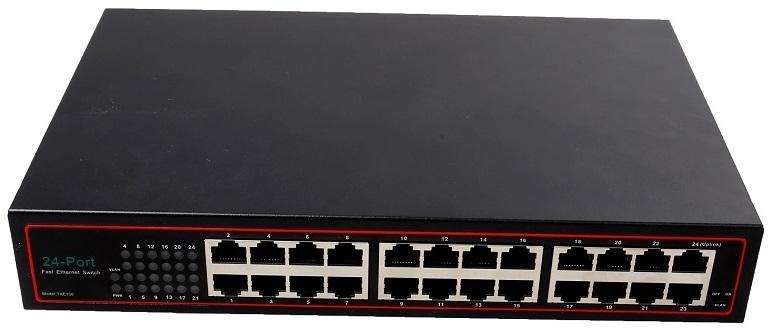

24-PORT 10/100 IRON ETHERNET - TXE100

24 10/100 Mbps Fast Ethernet Switch

With the TXE100 Fast Ethernet Switch

You can easily expand your business or home network by adding more computers and devices

Each achieving speeds up to 200 Mbps per port in full-duplex mode

Easy of Use

The TXE100 does not require any configuration or software, making installation simple and hassle-free

With Auto-MDI/MDI-X support, there is no need for crossover Cables when you are connection to another switch or to a Computer

Additionally, the TXE100 will automatically sense if the connected network devices are running at 10Mbps or 100Mbps

And adjust accordingly

Equipped with a comprehensive LED display, you can monitor the status and activity of every port at a glance

Model: TXE100

Hardware Features

Standards and Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x

Interface: 24 10/100Mbps RJ45 Ports, Auto Negotiation/Auto MDI/MDIX

Forwarding Mode: Store-and-Forward

Network Media: 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

100BASE-TX: UTP category 5, 5e or above cable (maximum 100m

Power Supply: 100-240VAC, 50/60H

LED: Power, Port Isolation, Link/Act

Fanless: Yes

Performance

Switching Capacity: 4.8Gbps

Packet Filtering/Forwarding Rate:148,800 pps for 100M

14,880 pps for 10M

MAC Address Table: 8K

Certifcation: CE, FCC, RoHS

Environment

Operating Temperature: 0 deg C - 40 deg C (32 deg F-104 deg F)

Storage Temperature: -40 deg C-70 deg C (-40 deg F-158 deg F)

Operating Humidity: 10%-90% RH non-condensing

Storage Humidity: 5%-90% RH non-condensing
