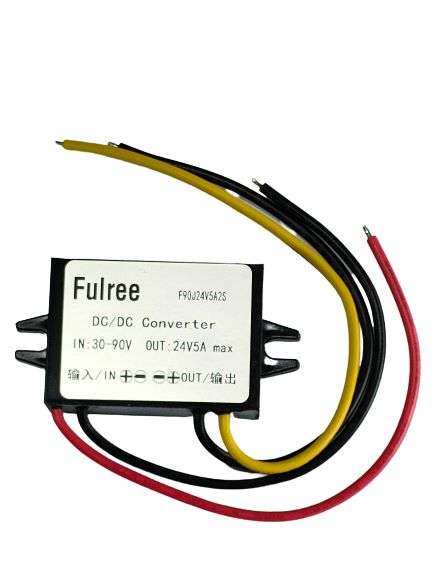

This DC to DC stepdown converter is special it have an wide range input,
giving you a 24V 5A out from a input volts of 30-90Volts ideal for high volts solar systems were you need to have a lower voltage to power electronics boards.
Brand: Fulree / CPT
Model: F90J12V10A3S
Input: 30 to 90V DC
Output: 24V DC 5A at 80 Watts
Recommended load: 0~5A
Working Environment: -25 to 80 (Do not fully load If the ambient temperature exceeds 40)
Protection: Overload, Overheat & Short Circuit Idle
Power Consumption: 10mA Max Efficiency/Conversion Rate: >90%
Dimension (LxWxH): 58x 40 x 22 mm
Weight: 100g
Cable Length: 13cm
Input: Red = (+) |Black = (-)
Output: Yellow = (+), Black = (-)
Please Note: Make sure not to swap the polarity of the wires on the unit.
