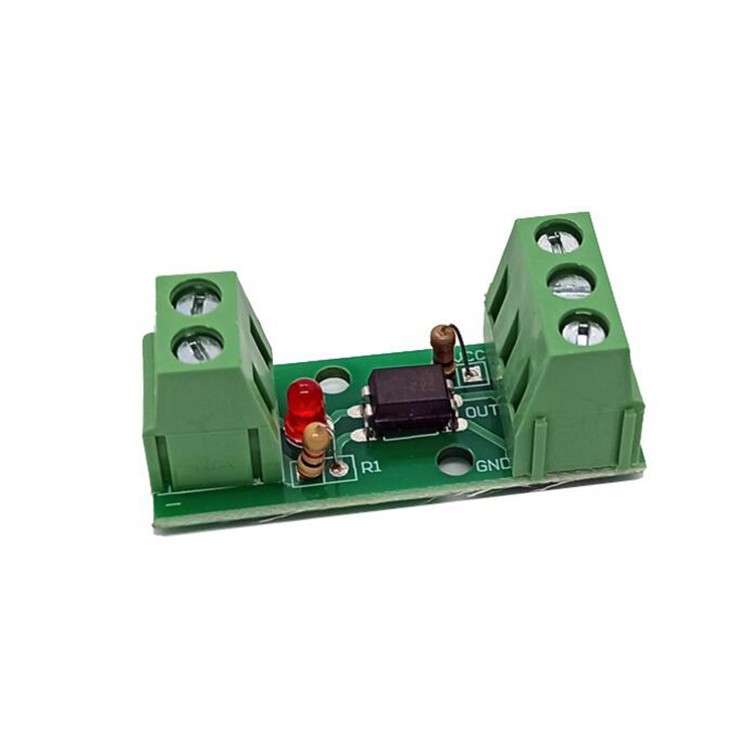

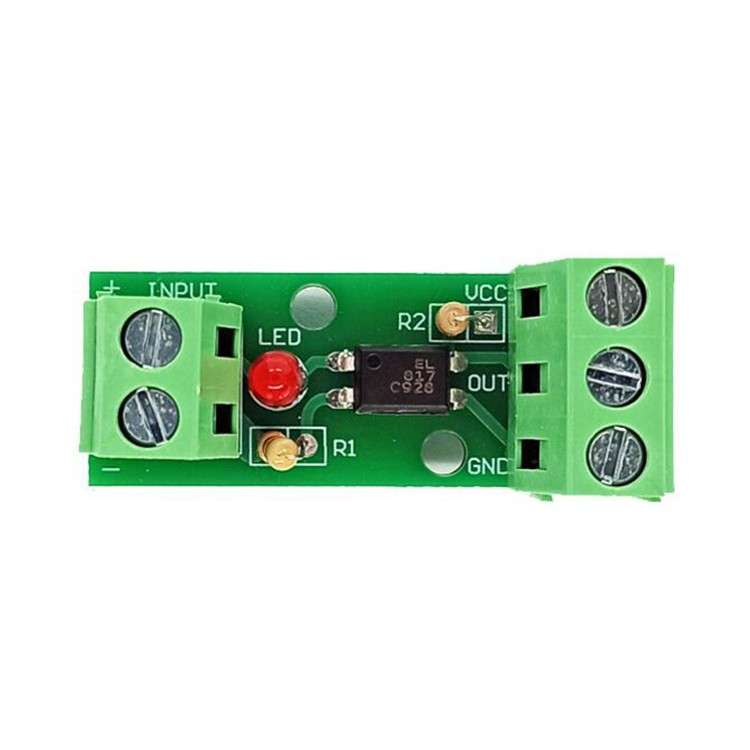

24V Input Optocoupler Isolation Module

Enhance the performance and safety of your electronic projects with our 24V Input Optocoupler Isolation Module. This versatile module utilizes optocoupler isolation technology to ensure reliable signal transmission and protection against interference, making it ideal for applications where level matching and isolation are crucial.

Key Features:

• Optocoupler Isolation: The module incorporates optocoupler isolation to provide stable and reliable signal transmission, protecting sensitive circuits from electrical noise and interference.
• Wide Input Signal Compatibility: Accepts DC input signal voltages ranging from 3V to 5V, 12V, or 24V (selectable), making it compatible with various microcontroller or PLC output levels.
• Flexible Output Voltage: Provides a wide range of output signal voltage suitable for DC loads from 1.8V to 24V, ensuring compatibility with different control systems and devices.
• Versatile Applications: Enables level shifting and isolation for driving inductive components such as motors, converting voltage levels for PLC inputs (e.g., converting 3V or 5V to 24V), inverter signal inversion, and current amplification.
• High Isolation Voltage: Offers isolation voltage greater than 3000V, ensuring robust protection against voltage spikes and surges.
• Efficient and Durable Design: Built to withstand a wide range of temperatures (-55C to 110C) and featuring a maximum application signal frequency of 5KHz, suitable for demanding industrial and automation applications.

Product Parameters:

• Input Signal Voltage: 24V (DC)
• Output Signal Voltage: Wide voltage range suitable for DC 1.8V to 24V
• EL817 Features:
  • Maximum Isolation Voltage: >3000V
  • Input Current: Max 50mA
  • Working Current: >1mA
  • Maximum Output Current: 50mA (input current must be 15-20mA)
  • Working Temperature: -55C to 110C
  • Maximum Application Signal Frequency: 5KHz

Applications:

• Industrial Automation Systems
• Motor Control and Drives
• PLC (Programmable Logic Controller) Interfacing
• Sensor Signal Conditioning
• Microcontroller Output Level Shifting and Protection

Ensure reliable and efficient signal isolation and level matching in your electronic designs with the 24V Input Optocoupler Isolation Module. This module offers a robust solution for interfacing different voltage levels, protecting sensitive components, and enhancing the overall performance of your projects.

Note: Please ensure proper configuration and compatibility with your specific application requirements before use.
