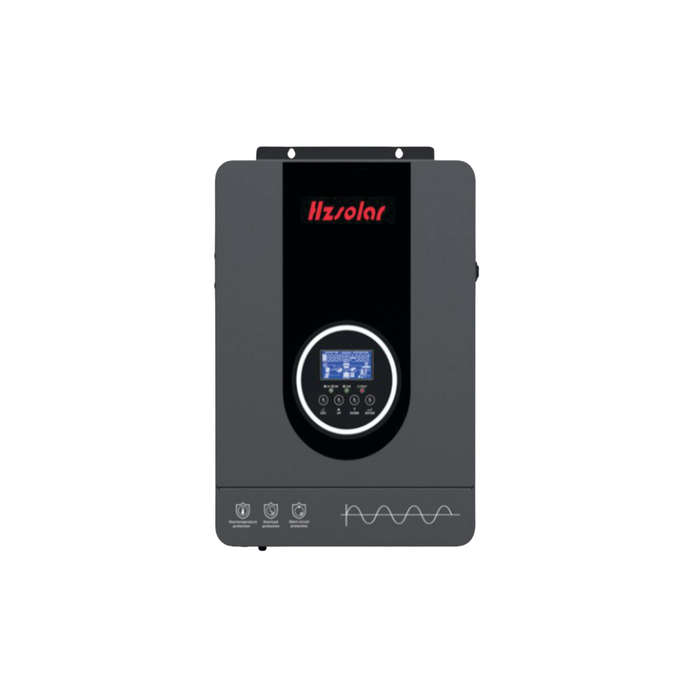

3.2KW HZ Solar MPPT Hybrid Pure Sine Wave Inverter

The HZ 3kW Hybrid Inverter is designed for high-efficiency power conversion across various modes, making it an ideal solution for residential and commercial solar installations. Engineered with robust features to enhance energy management and ensure consistent performance.

Inverter Mode

• Rated Power: 3200VA / 3000W

• DC Input: 24VDC, 125A

• AC Output: 230VAC, 50/60Hz, 21.3A

AC Charger Mode

• AC Input: 230VAC, 50/60Hz, 21.3A

• DC Output: 27VDC (Max 60A, Default 30A)

• AC Output: 230VAC, 50/60Hz, 13A

Solar Charger Mode

• Rated Power: 3000W

• Max Charger Current: 80A

• Nominal Operating Voltage: 240VDC

• Max Solar Voltage (VOC): 450VDC

• MPPT Voltage Range: 55-450VDC

Protection & Durability

• Ingress Protection: IP21 (Protection against solid objects over 12mm and limited protection against water)

• Protection Class: Class 1 (Requires grounding for safety)

Warranty & Installation Requirements

• All inverters must be installed by a qualified electrician or Master electrician registered with the Department of Labour.

• A valid Certificate of Compliance (COC) specific to the solar system installation must be issued upon completion.

• Installation must comply with SANS 10142 and all its parts.

• Warranty claims will be void if the installation was not conducted by a qualified installer, lacks valid COC, or does not include required installation photos.
