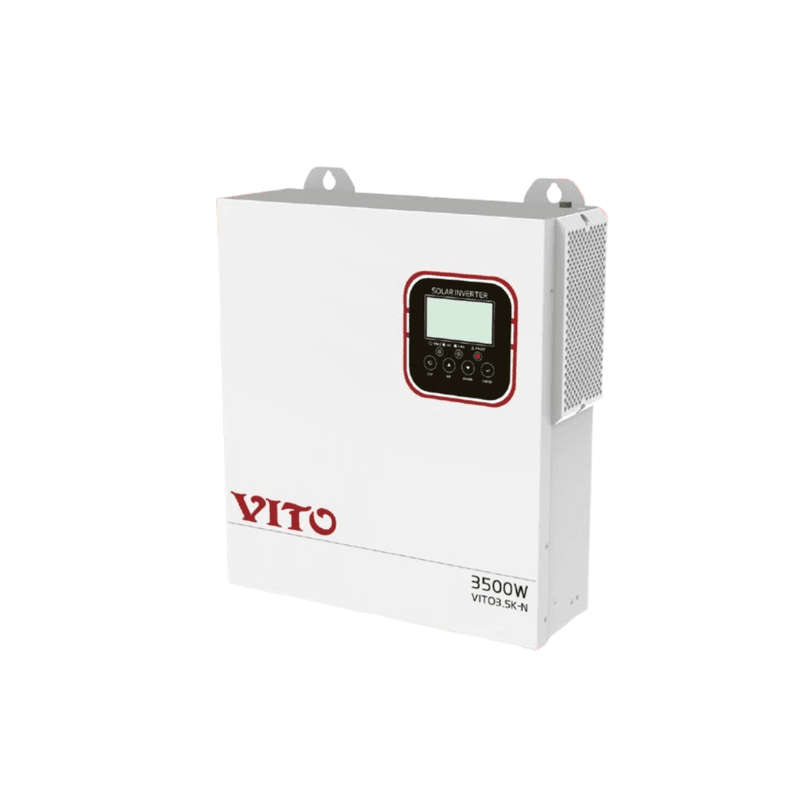

VITO 3.5KVA / 3500W Pure Sine Wave MPPT Hybrid Inverter 24V

Grid Solutions SA| 3.5kVA VITO Hybrid Inverter | 24V, 100A MPPT, 500V PV Input

Description:

Professional 3.5kVA Hybrid Inverter for Advanced Solar Systems

The VITO SH3.5K24 from GridSolutions is a high-efficiency, multi-functional inverter engineered for professional backup power, hybrid solar systems, and off-grid installations. It integrates a pure sine wave inverter, a 100A MPPT solar charger, and an intelligent battery charger into one robust unit.

Built with a 500V PV input capacity and a wide MPPT range (30500V), this inverter maximizes solar yield and enables compatibility with diverse panel configurations. Its user-configurable LCD display and EQ battery optimization features make it ideal for technical users who require precision control and dependable performance.

Key Features:

• Pure Sine Wave Output for stable energy supply

• 100A Built-in MPPT controller with 500Vdc PV input max

• Multiple output priority modes: UTL, SOL, SBU, SUB

• EQ function to enhance battery lifecycle and performance

• Supports up to 4000W solar array capacity

• Wi-Fi monitoring capability via RJ45 (optional)

• Detachable dust cover for use in harsh environments

Battery & Charging:

• Battery Voltage: 24V

• Charging Method: Constant Current / Constant Voltage (CC/CV)

• Floating Charge Voltage: 27V

• Overcharge Protection: 28.2V

• AC Charger Current: Up to 60A

• Solar Charge Current: Up to 100A combined (AC + PV)

Technical Specifications:

• PV Input Voltage Range: 30500Vdc

• Max PV Array Open Circuit Voltage: 500V

• Max PV Input Power: 4000W

• Dimensions: 330 x 278 x 98 mm

• Package Size: 400 x 365 x 174 mm

• Weight: 4.4kg

• Communication: RJ45 port for Wi-Fi module (optional)

Warranty & Compliance: Includes a 2-year repair warranty. Installation must be completed by a certified electrical wireman or master electrician and conform to SANS 10142 regulations. Warranty claims must include a valid COC, proof of qualified installation, and supporting documentation.
