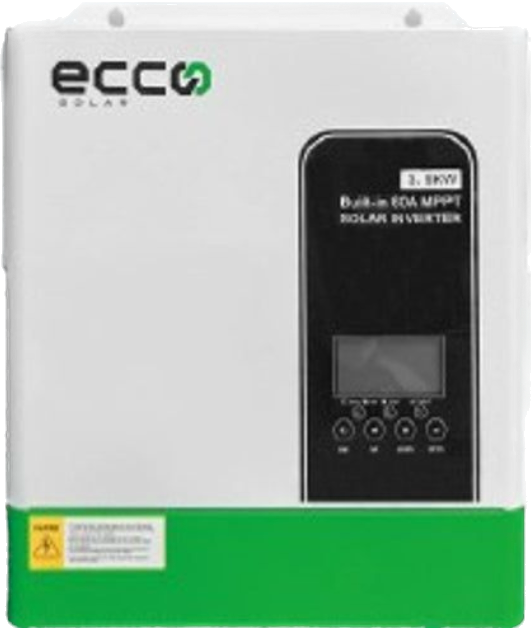

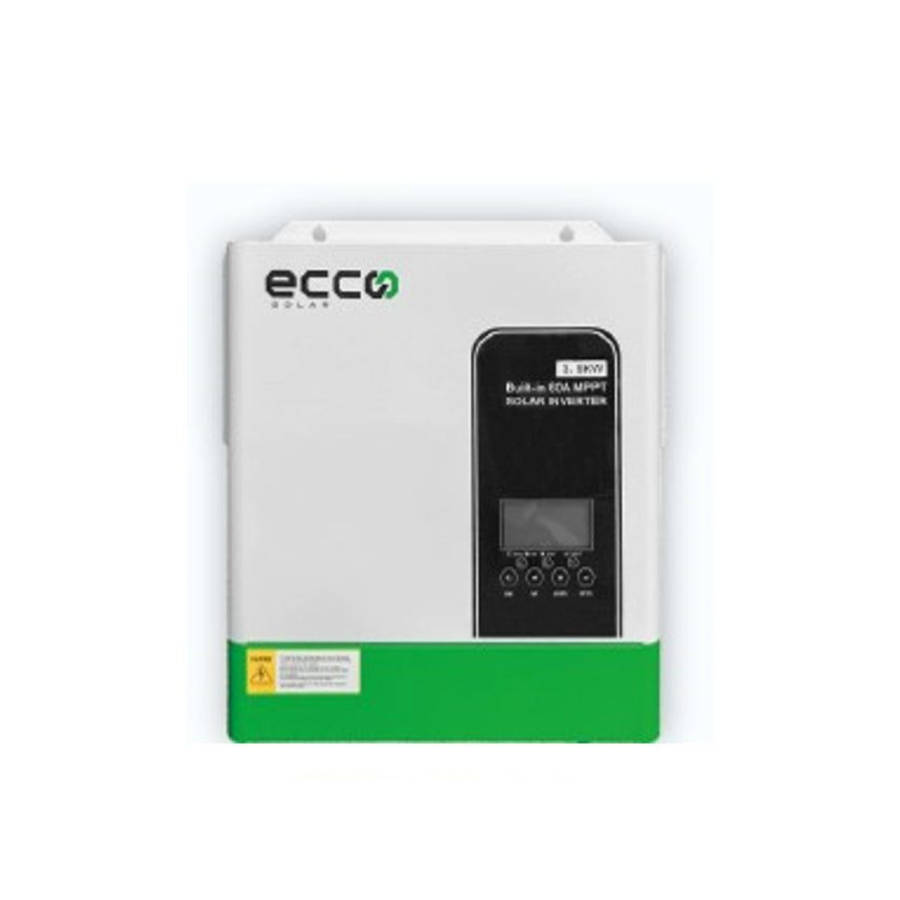

3.5KVA / 3500W 24V MPPT 100A Ecco Hybrid Inverter Pure Sine Wave

Ecco 3.5KVA 3500W 24V Hybrid Inverter 100A MPPT, Pure Sine Wave

Description:

Efficient and Versatile Hybrid Inverter for Solar Power Solutions

The Ecco 3.5KVA 3500W Hybrid Inverter is designed for reliable energy conversion, seamlessly integrating solar, battery, and grid power. This pure sine wave inverter ensures stable and efficient power output, making it ideal for homes, small businesses, and off-grid installations. With an integrated 100A MPPT solar charge controller, this inverter optimizes energy harvesting and supports multiple output priority modes for flexible power management.

Key Features:

• 3500VA / 3500W Pure Sine Wave Output Provides clean, stable power for sensitive electronics.
• 100A MPPT Solar Charge Controller Maximizes solar energy efficiency.
• Wide PV Input Voltage Range (30VDC - 160VDC) Ensures flexibility in solar panel configurations.
• Smart Load Management:
  • Supports UTL, SOL, and SBU priority modes for power distribution.
  • Lithium Battery Activation for extended battery performance.
  • RS485 BMS Communication for intelligent battery monitoring.
• WiFi Remote Monitoring (Optional) Enables real-time tracking and system adjustments.
• Detachable Dust Cover Protects components in harsh environments.
• Advanced Protection Features:
  • Overload, short-circuit, and deep discharge protection.
  • Surge protection for safe appliance operation.

Technical Specifications:

Inverter Specifications:

• Rated Power: 3500VA / 3500W
• DC Input Voltage: 24VDC (158A)
• AC Output: 230V AC, 50/60Hz (23.5A)

AC Charger:

• Input: 230V AC, 50/60Hz (23.5A)
• DC Output: 27V DC
• Max AC Charge Current: 60A (Default: 30A)
• Max Charge Current (PV + AC): 100A

Solar Charge Controller:

• Max PV Array Power: 4000W
• Min Solar Voltage: 120VDC
• Max Solar Voltage (VOC): 500VDC
• Max MPPT Charge Current: 100A

Size & Weight:

• Dimensions: 359mm × 295mm × 100mm
• Weight: 7kg

Warranty & Installation Requirements:

• 5-Year Repair Warranty covering manufacturing defects.
• Must be installed by a qualified electrician and comply with SANS 10142 regulations.
• A valid Certificate of Compliance (COC) must be provided for warranty validation.
