3.5KVA / 3500W 24V ECCO Hybrid Inverter 100A Plug & Play System + 2.56kWh LITHIUM BATTERY (SOLAR ...

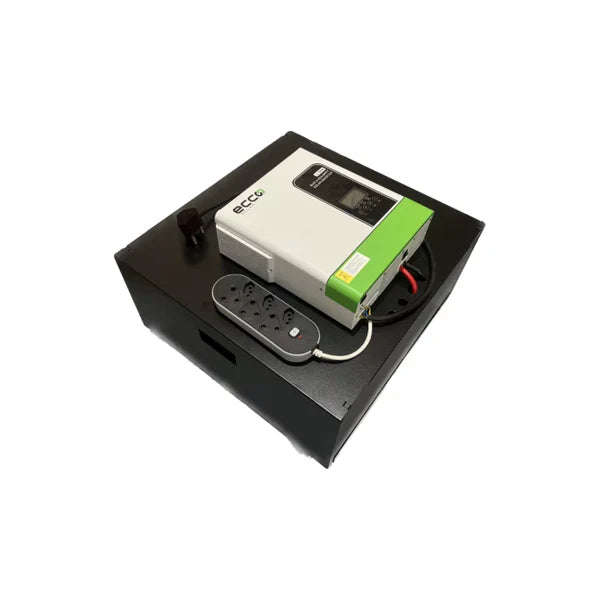

The all-in-one portable back-up inverter battery system .

Description:

Reliable Power Backup for Load Shedding
This all-in-one portable inverter system ensures uninterrupted power during outages. Designed for homes and small businesses, it integrates a 3.5kVA pure sine wave inverter with a 24V lithium-compatible battery system, providing stable electricity for essential devices like TVs, WiFi routers, lights, and chargers.

A plug-and-play power system is a simple backup solution that provides electricity during load shedding or power outagesno complex installation required.

How It Works:

1. Plug it into a wall socket  The system charges its built-in battery while the power is on.
2. Automatic Power Switching  When the electricity goes off, the system instantly switches to battery power.
3. Keep Essentials Running  You can plug in WiFi, TV, lights, laptops, and chargers directly into the system.
4. Recharge When Power Returns  Once the electricity comes back, the system automatically recharges for the next outage.
5. Solar Ready (Optional)  You can add solar panels to charge the system even when there is no grid power.

Key Features:

Efficient Power Management

• Pure sine wave output ensures stable power for sensitive electronics
• Built-in MPPT 100A charge controller for efficient solar charging
• Supports multiple output priority modes: UTL, SOL, SBU
• Lithium battery activation for extended battery life

Flexible Charging & Compatibility

• PV Input Voltage: 30Vdc - 160Vdc
• Solar Power Capacity: Up to 4000W for solar integration
• AC & Solar Charging: Max combined charge current of 100A
• RS485 BMS Communication for battery management

ECCO 24V LITHIUM BATTERY

Key Features:

• 25.6V 100Ah Capacity  Stores 2560Wh of energy for backup and solar applications.
• Lithium Iron Phosphate (LiFePO4) Technology  Offers enhanced safety, longevity, and efficiency.
• Up to 4X Longer Lifespan  Outperforms lead-acid batteries in durability and cycle life.
• High Charge & Discharge Rates  Supports 100A max charge/discharge for efficient power management.
• Wide Application Compatibility:
  • Solar & Backup Systems  Ensures reliable power storage.
  • UPS & Inverters  Provides uninterrupted energy supply.
  • Portable Power Solutions  Ideal for off-grid, RV, marine, and camping use.
• Fast Charging & High Efficiency  Reduces downtime with quick recharge capabilities.
• Compact & Lightweight Design  Easier to install and transport compared to traditional lead-acid alternatives.
• Maintenance-Free & Environmentally Friendly  No harmful chemicals or frequent maintenance required.

Technical Specifications:

• Energy Storage Capacity: 2560Wh
• Nominal Voltage: 25.6VDC
• Rated Capacity: 100Ah
• Bulk Absorption Voltage: 28.4V - 29.2V
• Equalize Voltage: 28.8VDC
• Float Charge Voltage: 27.2VDC
• Maximum Charge Current: 100A
• Maximum Discharge Current: 100A

User-Friendly Design

• Portable steel enclosure with 2 lockable wheels for mobility
• Detachable dust cover for protection in harsh environments
• Surge plug (1m power cable, 2.5mm cabtyre)
• Double-sided female plug socket for easy appliance connection

Power Backup Duration

• Powers 150W load (TV, WiFi, Lights) for 19-20 hours
• Recharge batteries via solar panel (optional) or grid power

Installation & Maintenance

• Keep system plugged in and switched on to maximize battery lifespan
• Suitable for homeowners, small businesses, and DIY solar users
• Weight: ~65kg
• Unit Dimensions: 60cm x 60cm x 49cm

Warranty & Compliance

• Must be installed by a qualified electrician
• Valid COC (Certificate of Compliance) required
• Installation must adhere to SANS 10142 regulations
