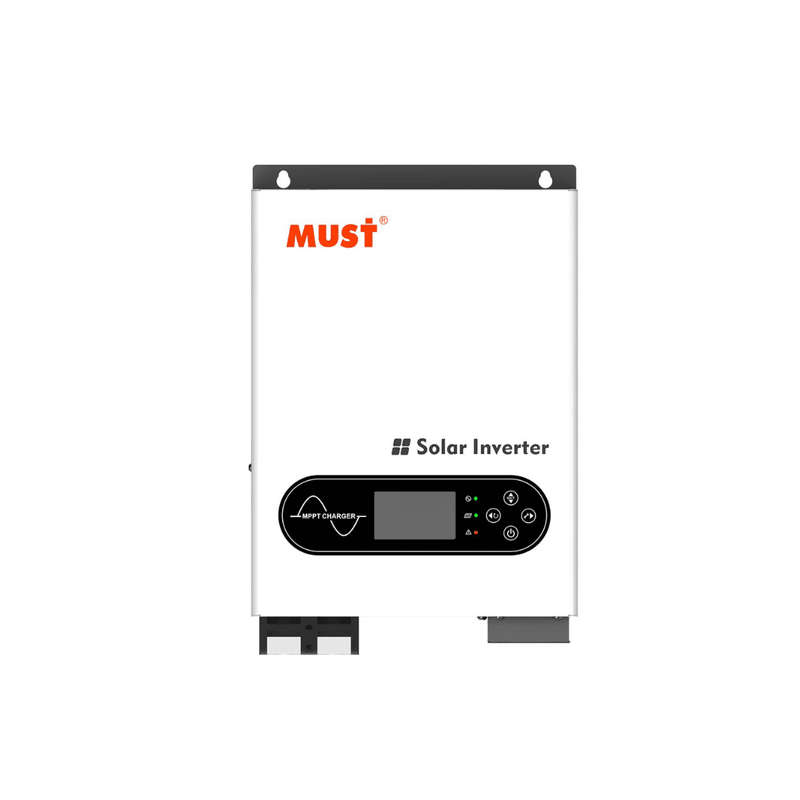

Must 3.6kW 100A 24V MPPT Solar Hybrid Inverter PV1800 ECO
Versatile Off-Grid & Hybrid Power Solution
The Must PV1800 ECO 3.6kW Hybrid Inverter is a multi-functional energy solution, integrating an inverter, MPPT solar charge controller, and battery charger into a compact unit. Designed for off-grid and hybrid applications, it provides reliable, uninterrupted power by efficiently managing solar energy, AC utility, and battery storage.
With a high PV input voltage range (up to 400V/450V/500V), this inverter maximizes solar energy utilization and can function without a battery, making it a cost-effective and flexible solution for renewable power needs.
Features:
- Pure Sine Wave Output: Provides stable power for sensitive electronics.
- Smart LCD Interface: Allows configuration of operating modes, charge current, and voltage settings.
- Integrated MPPT Solar Charge Controller: Enhances solar energy efficiency.
- Broad PV Input Voltage Range: Supports high solar voltages for increased compatibility.
- Battery-Free Operation: Can power loads directly from solar panels.
- Dual Output for Smart Load Management: Prioritizes critical loads for optimized performance.
- Advanced Protection System: Overload, short circuit, and deep discharge protection.
- Cold Start Function: Enables startup without grid power.
- Remote Monitoring: Compatible with RS485 and CAN communication for lithium battery integration.
Technical Specifications:
Inverter Mode:
- Rated Power (Main + Secondary Load): 3600VA / 3600W
- DC Input Voltage: 24VDC, 135A
- AC Output Voltage: 230VAC, 50/60Hz, 15.7A
- Power Factor: 1.0
AC Charger Mode:
- AC Input Voltage: 230VAC, 50/60Hz, 17.7A
- DC Output Voltage: 24VDC, 60A
Solar Charger Mode:
- Maximum MPPT Charge Current: 100A
- MPPT Voltage Range (Typical): 30-320VDC
- Maximum PV Input Voltage (VOC): 400VDC
- Maximum PV Input Current: 18A
- Maximum MPPT Power: 4000W
- Maximum Charge Current: 100A
What's Included:
- 1 × Must 3.6kW 24V MPPT Hybrid Inverter
- 1 × User Manual
Warranty:
- 1-Year Manufacturer Warranty
Installation & Warranty Requirements:
- Professional Installation Required: Must be installed by a qualified electrical wireman or master electrician registered with the Department of Labour.
- Compliance Certification: A Certificate of Compliance (COC) must be issued upon installation.
- Warranty Conditions: Claims require installation photos, a valid COC, and proof of installation by a qualified professional. Claims without these documents may be rejected.
Why Choose This Hybrid Inverter?
The Must PV1800 ECO 3.6kW Hybrid Inverter is an efficient, reliable, and scalable power solution for homes and businesses looking for solar energy independence. With high-performance MPPT technology, battery flexibility, and remote monitoring capabilities, it is an ideal choice for uninterrupted and cost-effective power management.
