GROWTECH 3.6KVA / 3600W Pure Sine Wave Hybrid Inverter MPPT

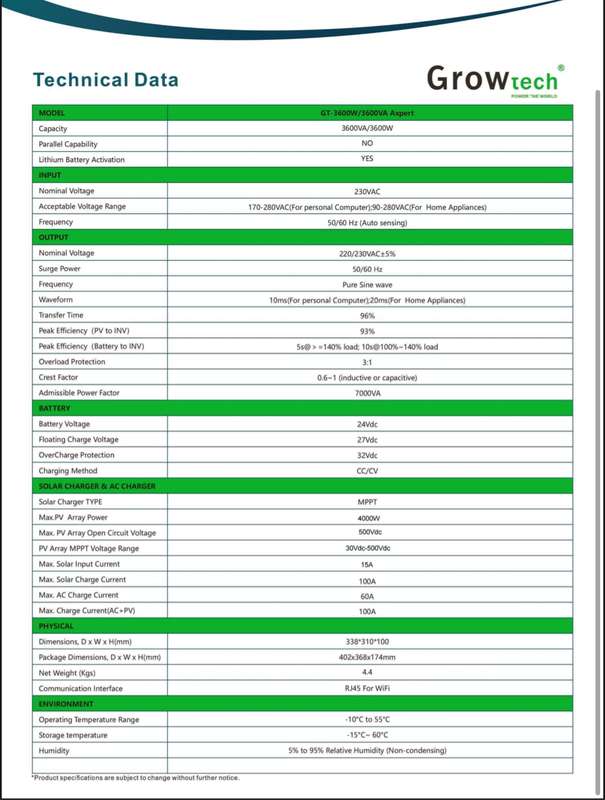

PDF DATASHEET Axpert GT-3600W

The GroWtech® GT-3600W/3600VA Axpert Inverter is a compact, lightweight, and efficient power solution, perfect for load-shedding and small off-grid setups. With pure sine wave output, MPPT solar charging, and high efficiency (96%), it ensures stable and reliable power for essential appliances. Designed for easy installation, it supports both solar and AC charging, making it an ideal backup power option for homes and businesses.

Capacity & Performance

• Rated Power: 3600VA / 3600W
• Parallel Operation: NO
• Lithium Battery Activation : YES

Input Specifications

• Nominal Voltage: 230VAC
• Voltage Range:
  • 170-280VAC (For Personal Computers)
  • 90-280VAC (For Home Appliances)
• Frequency: 50/60 Hz (Auto Sensing)

Output Specifications

• Nominal Voltage: 220/230VAC ±5%
• Surge Power: 7000VA
• Frequency: 50/60 Hz
• Waveform: Pure Sine Wave
• Transfer Time:
  • 10ms (For Personal Computers)
  • 20ms (For Home Appliances)
• Efficiency:
  • PV to Inverter: 96%
  • Battery to Inverter: 93%
• Overload Protection: 3:1
  • 5s @ 140% Load
  • 10s @ 100%-140% Load
• Crest Factor: 0.6 ~ 1 (Inductive or Capacitive)
• Admissible Power Factor: 7000VA

Battery Specifications

• Battery Voltage: 24VDC
• Floating Charge Voltage: 27VDC
• Overcharge Protection: 32VDC
• Charging Method: CC/CV (Constant Current / Constant Voltage)

Solar & AC Charger Specifications

• Solar Charger Type: MPPT
• Maximum PV Array Power: 4000W
• Maximum PV Array Open Circuit Voltage: 500VDC
• MPPT Voltage Range: 30VDC - 500VDC
• Maximum Solar Input Current: 15A
• Maximum Solar Charge Current: 100A
• Maximum AC Charge Current: 60A
• Maximum Total Charge Current (AC + PV): 100A

Physical Specifications

• Unit Dimensions (D x W x H): 338 × 310 × 100 mm
• Package Dimensions (D x W x H): 402 × 368 × 174 mm
• Net Weight: 4.4 kg
• Communication Interface: RJ45 (WiFi Compatible)

Environmental Conditions

• Operating Temperature Range: -10°C to 55°C
• Storage Temperature: -15°C to 60°C
• Humidity: 5% to 95% Relative Humidity (Non-Condensing)
