ECCO - Hybrid Inverter 48v 11 Kva 11000w MPPT 160A Inverter Pure Sine Wave

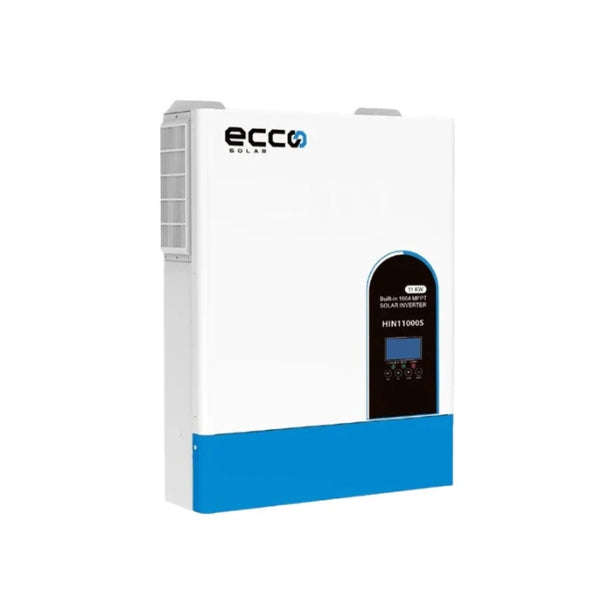

ECCO Hybrid Inverter 48V 11 KVA 11000W MPPT 160A Pure Sine Wave Inverter

The ECCO Hybrid Inverter delivers exceptional efficiency with its MPPT (Maximum Power Point Tracking) charge control technology. Compared to PWM systems, MPPT is up to 30% more efficient, ensuring optimal charging performance. This inverter is designed to work seamlessly with both lithium batteries and traditional solar systems, offering superior reliability and performance.

Key Features:

• Dual MPPT Functionality: Built-in 2 MPPT charge controllers for maximum solar energy harvesting.
• Lithium Battery Activation: Supports activation via PV (solar) or utility power.
• RS485 Communication: Fully compatible with LiFePO4 batteries for enhanced performance.
• Pure Sine Wave Output: Delivers clean, stable power with a power factor of 1.0.
• Wide PV Input Range: Maximum 500VDC input for flexible system design.
• Detachable Dust Cover: Ideal for harsh environments to protect internal components.
• WiFi Remote Monitoring: Optional WiFi dongle for remote monitoring and control.
• Multiple Output Priority Settings: Choose between SUB, SBU, and SUF for versatile output management.
• EQ Function: Optimizes battery performance and extends battery life.

Specifications:

Model: HIN11000S
Capacity: 11KVA / 11KW
Maximum PV Input Power: 11KW
Lithium Battery Activation: Yes (via PV or Utility)
Lithium Battery Communication: Yes (RS485)
Parallel Capability: Not supported

Input:

• Nominal Voltage: 230VAC
• Acceptable Voltage Range:
  • 170-280VAC (for computers)
  • 90-280VAC (for home appliances)
• Frequency: 50/60 Hz (Auto-sensing)

Output:

• Nominal Voltage: 220/230/240VAC
• Surge Power: 22,000VA
• Frequency: 50/60 Hz
• Waveform: Pure Sine Wave
• Transfer Time: 10ms (for computers), 20ms (for home appliances)
• Peak Efficiency: 94%
• Overload Protection: 5s at 140% load

Battery:

• Battery Voltage: 48V
• Maximum Discharge Current: 220A
• Floating Charge Voltage: 54VDC
• Overcharge Protection: 63VDC
• Charging Method: CC/CV

Solar Charger & AC Charger:

• Solar Charger Type: MPPT
• Max PV Array Power: 5500W x 2
• Max PV Array Open Circuit Voltage: 500VDC
• MPPT Voltage Range: 60VDC - 500VDC
• Max Solar Input Current: 18A x 2
• Max Solar Charge Current: 160A
• Max AC Charge Current: 120A
• Max Charge Current: 160A

Physical:

• Dimensions (D x W x H): 540 x 415 x 122 mm
• Net Weight: 15kg
• Communication Interface: RS232/RS485/DRY Contact
• LCD Display: Yes

Environmental:

• Operating Temperature: -10°C to 55°C
• Storage Temperature: -15°C to 60°C
• Humidity: 5% to 95%

What's in the Box:

• 1 x ECCO 11KW Hybrid Inverter
• 1 x Communication Cable
• 1 x User Guide
• 2 x MC4 Connectors
• 1 x 200A Fuse

Warranty: 5-Year Repair Warranty
