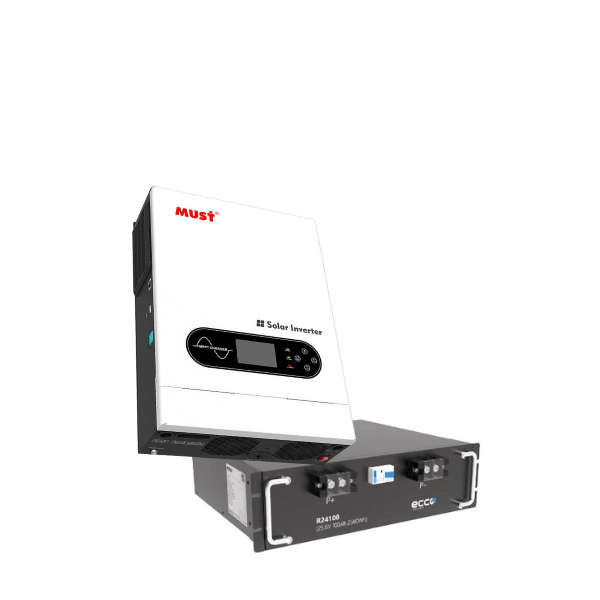

3.6kW MPPT Hybrid Solar Inverter & 2.56kWh LiFePO4 Lithium Battery Combo

Ecco 2.56 KWh LiFePO4 Battery & PV1800 ECO 3KVA 3600W MPPT Hybrid Solar Inverter Combo 24V, 100A Output, High-Efficiency Energy Storage & Solar Power System

Maximize your solar energy system with the Ecco 2.56 KWh LiFePO4 Battery and PV1800 ECO 3KVA Hybrid Solar Inverter combo. This high-efficiency energy storage solution is perfect for both residential and off-grid solar applications, providing reliable, continuous power for homes, businesses, or backup power systems. Ecco 2.56 KWh Lithium battery (Model R24100) pairs seamlessly with the PV1800 3KVA hybrid inverter to create an optimal solar energy storage system.

Designed for high-capacity solar power, this combo integrates MPPT solar technology with LiFePO4 lithium battery technology to ensure peak performance, reliability, and longevity. Whether you're looking to power your home, business, or remote system, this combination offers the perfect solar inverter and battery storage solution.

Key Features of the Ecco 2.56 KWh LiFePO4 Battery (R24100):

• 2.56 KWh Energy Capacity: Designed for efficient storage of solar energy, ensuring power during the night or cloudy days.
• LiFePO4 Lithium Technology: Offers long cycle life, higher efficiency, and better safety compared to other lithium-ion chemistries.
• >5000 Cycles at 80% DOD: Over 10 years of reliable power storage, perfect for residential, commercial, or off-grid solar applications.
• Built-in BMS (Battery Management System): Ensures safe operation, protects against overcharge, over-discharge, and balances cell performance.
• 99% Charge Efficiency & 98% Discharge Efficiency: Maximize solar power storage and minimize energy loss.
• Compact & Easy to Install: Designed for easy integration with solar systems; rack-mountable for easy setup.
• IP54 Protection: Dust and water-resistant, suitable for indoor and outdoor environments.
• Expandable Capacity: Connect up to 16 batteries in parallel to scale up the battery bank capacity for larger power needs.
• Global Certifications (UL & TUV): Complies with international safety standards for peace of mind.

Technical Specifications of Ecco R24100 LiFePO4 Battery:

• Nominal Voltage: 25.6V
• Nominal Capacity: 100Ah
• Total Energy: 2.56 KWh
• Max Continuous Output Power: 2560W
• Max Momentary Output Power: 3200W
• Cycle Life: >5000 cycles at 0.5C, 80% DOD
• Dimensions: 442 x 400 x 133 mm
• Weight: 25.5 kg
• Protection Rating: IP54

Key Features of the PV1800 ECO 3KVA Hybrid Solar Inverter:

• 3600W Power Output: A powerful solar inverter for residential, commercial, and off-grid systems, ensuring reliable and efficient energy conversion.
• Pure Sine Wave Output: Provides clean, stable power for sensitive electronics and home appliances.
• MPPT Solar Charge Controller: Maximizes solar panel energy conversion, ensuring optimal solar charging efficiency.
• Wide PV Input Voltage Range: Supports solar panels with voltage ranges from 30-320VDC, with a max VOC of 400VDC.
• Hybrid Power System: Integrates solar energy, battery storage, and AC utility for continuous power, even during grid outages.
• Smart LCD Display: Easily adjust working modes, charge current, and voltage settings for efficient power management.
• Dual Outputs: Enables smart load management and ensures battery longevity.
• Advanced Protection: Includes overload, short circuit, deep discharge, and cold start protection.
• CAN Port Support: Communicates with lithium-ion batteries for enhanced energy management and monitoring.
• RS485 Monitoring: Real-time system performance tracking for smarter solar energy management.

Technical Specifications of PV1800 ECO 3KVA Hybrid Inverter:

• Inverter Mode:

  • Rated Power: 3600W (Main + Secondary Load)
  • DC Input: 24VDC, 135A
  • AC Output: 230VAC, 50/60Hz, 15.7A
  • Power Factor: 1.0

• AC Charger Mode:

  • AC Input: 230VAC, 50/60Hz, 17.7A
  • DC Output: 24VDC, 60A

• Solar Charger Mode:

  • Rated MPPT Charger Current: 100A
  • Max Solar Voltage (VOC): 400VDC
  • Max MPPT Power: 4000W
  • Max Charge Current: 100A

Why Choose the Ecco 2.56 KWh LiFePO4 Battery & PV1800 ECO 3KVA Hybrid Inverter Combo?

• Complete Solar Solution: The combo of the Ecco 2.56 KWh lithium battery and PV1800 ECO 3KVA inverter offers a full solar energy storage system for uninterrupted, reliable power.
• Enhanced Energy Efficiency: With MPPT technology and LiFePO4 battery chemistry, you'll get the most efficient energy storage and conversion.
• Expandable Capacity: Add more Ecco batteries in parallel to increase your system's capacity, providing scalable power for larger energy needs.
• Long-Term Reliability: The Ecco R24100 battery is designed for over 5000 cycles, offering an efficient energy source for off-grid power systems and solar backup for years to come.
• Safe & Eco-Friendly: Built with LiFePO4 cells, this combo provides a safe, stable, and environmentally-friendly energy storage solution.
