Description: 3-way PWM output, wide frequency range, duty cycle can be adjusted independently and in real time. Frequency is divided into four ranges, automatic switching:
1. XXX (no decimal point): the smallest unit is 1Hz, the range of values is 1Hz ~ 999Hz; 2. The smallest unit of X.XX (decimal point in 100 bits) is 0.01 Khz, ranging from 1.00 Khz to 9.99 Khz. 3. XX.X (decimal point in ten places): the smallest unit is 0.1Khz; the range of values is 10.0KHz~99.9KHz. 4. X.X.X (decimal point in 10 and 100 bits): the smallest unit is 1Khz; the range of values is 1KHz~150KHz E.g. Frequency display: 100 represents the output pulse of 100 Hz from PWM; 1.01 represents the output pulse of 1.01K from PWM. 54.1 indicates that the PWM outputs 54.1KHz pulses. 1.2.4 indicates that the PWM outputs 124KHz pulses.
The duty cycle ranges from 0% to 100%, of which 100% is represented by A0%. All setting parameters, power down save.
Features: 1. 3-way PWM output, frequency adjustable, 3-way frequency output consistent, duty cycle can be independently adjusted, suitable for most occasions; 2. LCD LCD display frequency and duty cycle, very clear, easy to adjust. 3. Wide frequency range and high accuracy; 4. Serial Communication
Used as a square wave signal generator to generate square wave signals for experimental development and use; Square wave signal used to control motor driver; Generate adjustable pulses for MCU use. Generate adjustable pulses and control related circuits (PWM dimming and speed regulating applications).

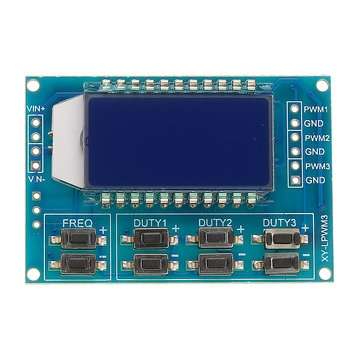

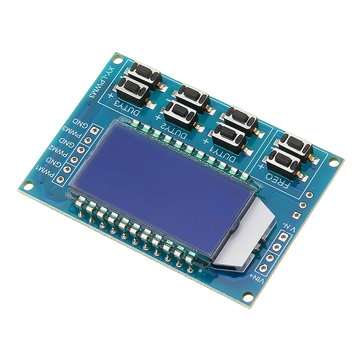

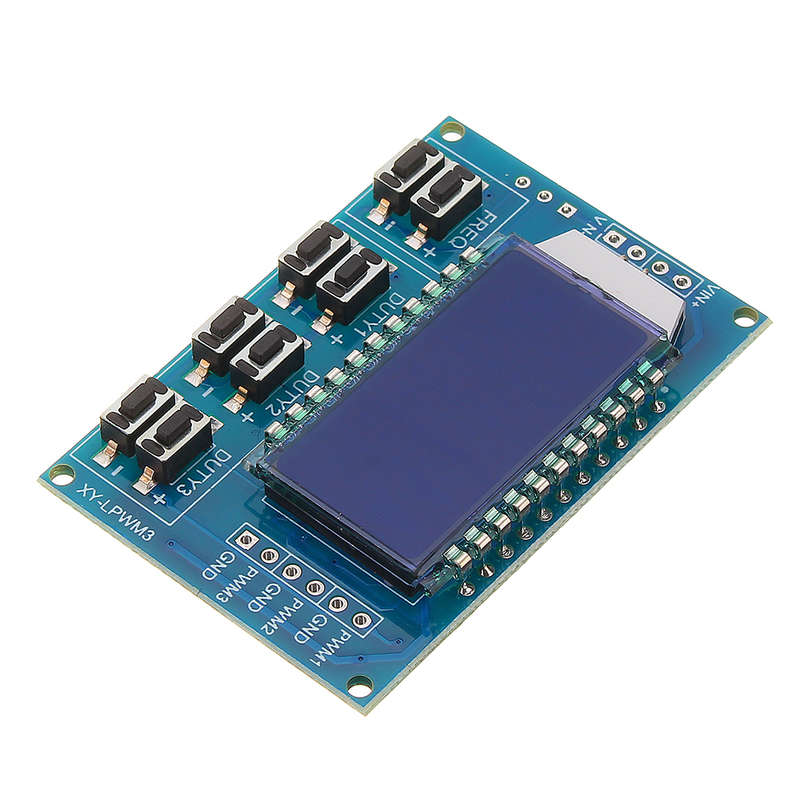

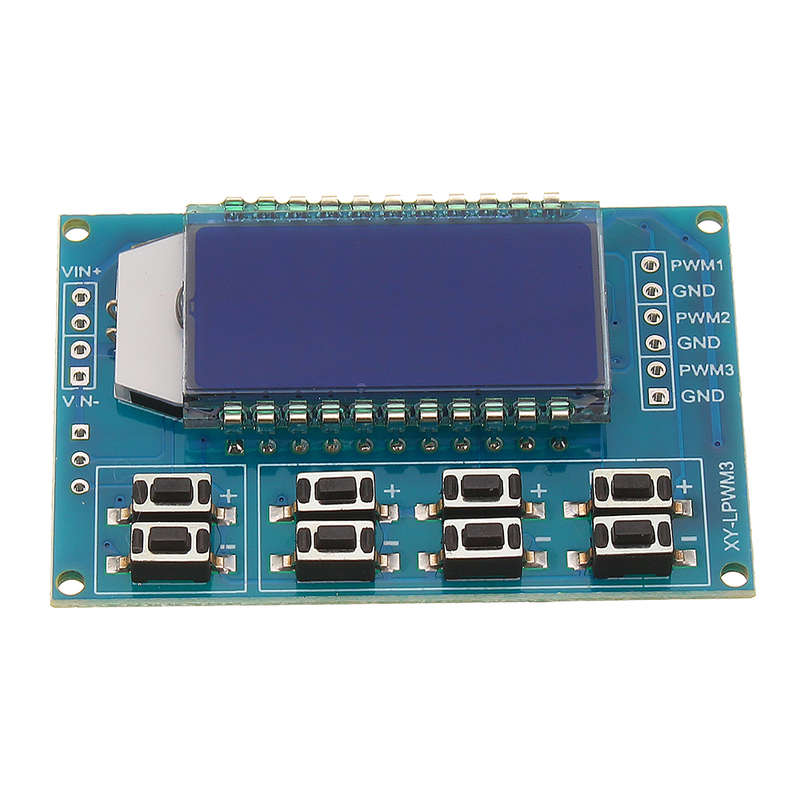

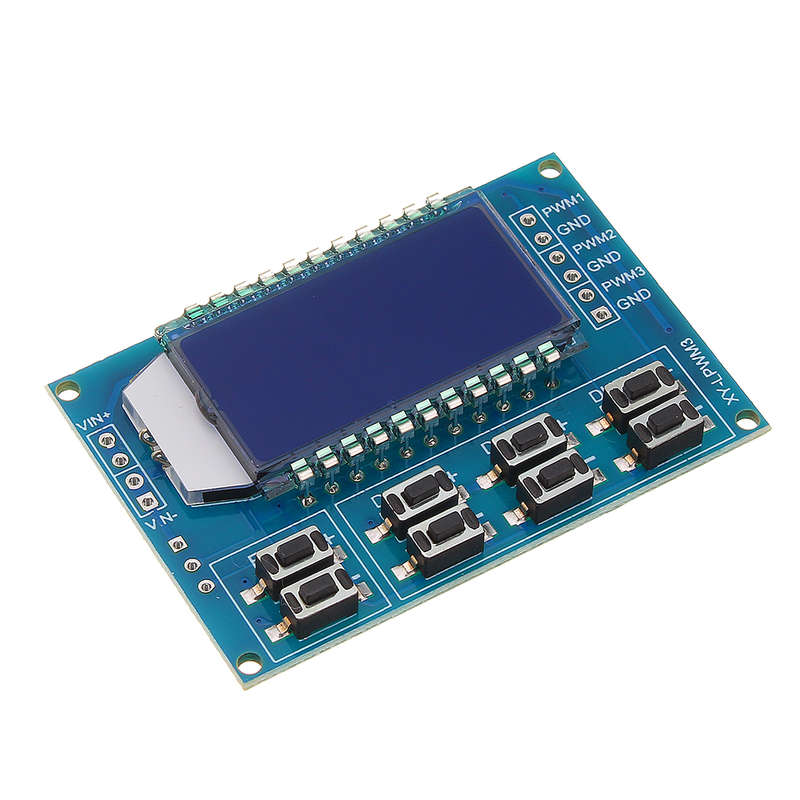

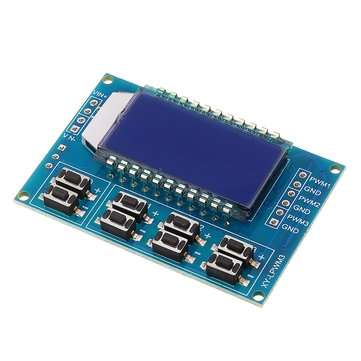

The module has 8 independent keys to set the frequency and duty cycle. It supports short press (increase or decrease a unit) and long press (increase or decrease quickly). It is very simple. After setting parameters, it can save automatically without losing power. 3-way duty cycle button can be pressed at the same time, real-time adjustment, LCD display is the last pressed button duty cycle, real-time performance is very strong, can be used as a simple scan of several ways duty cycle.

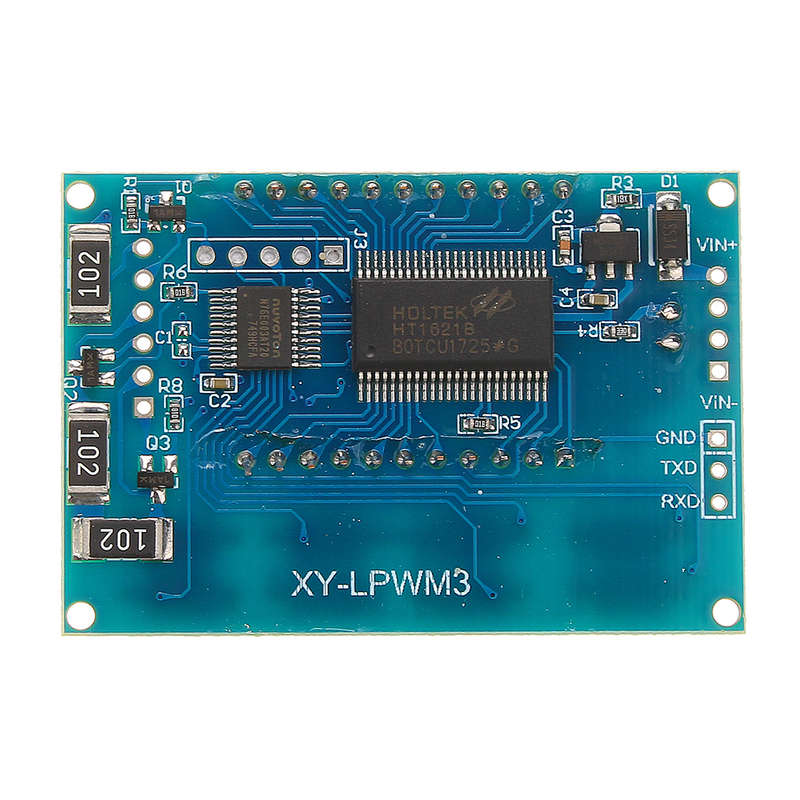

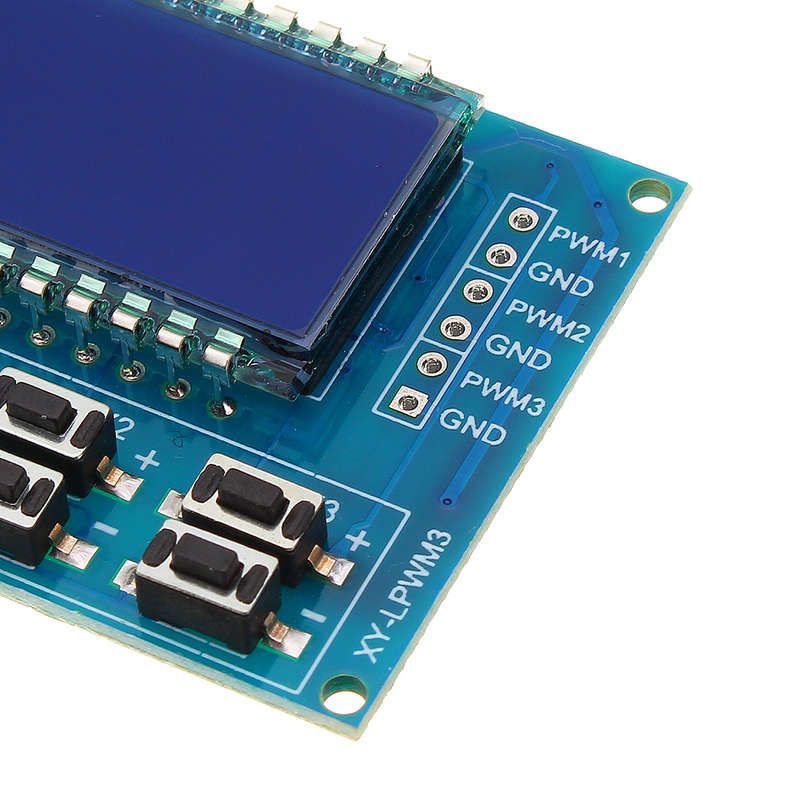

Specification: Working voltage: 3.3-30V Frequency range: 1Hz~150KHz Frequency accuracy: the accuracy in each range is about 2% Signal load capacity: the output current can be about 5-30 ma Output amplitude: PWM amplitude is equal to supply voltage Ambient temperature: - 20ﾣ~ + 70ﾣC
Package included: 1 x Controller Module
