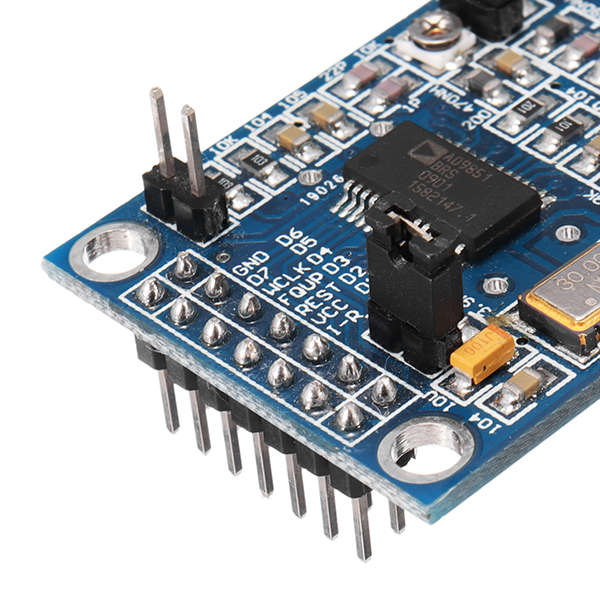

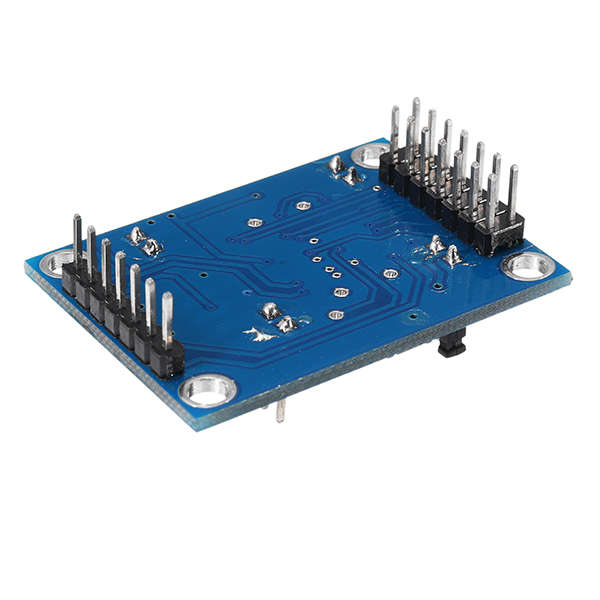

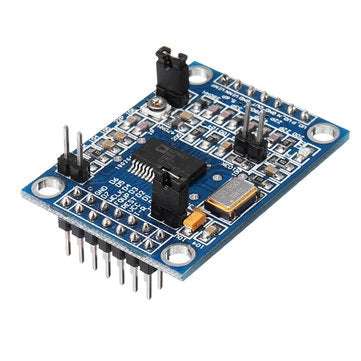

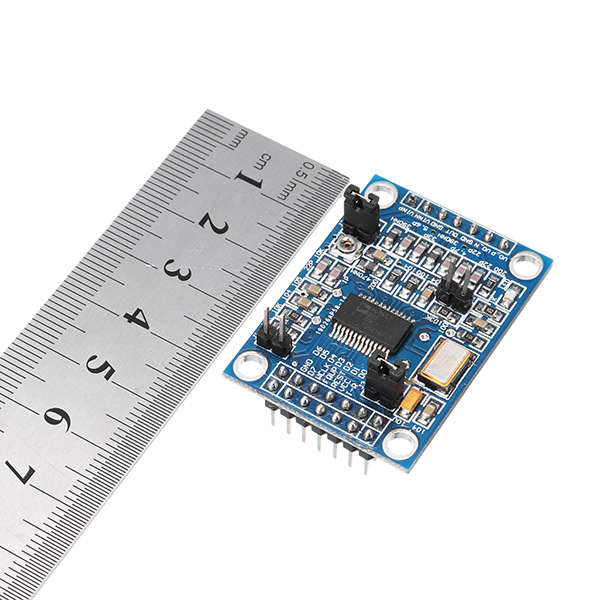

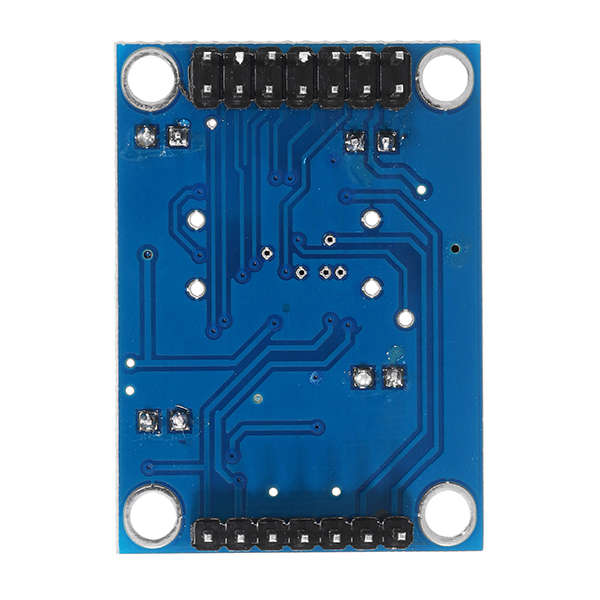

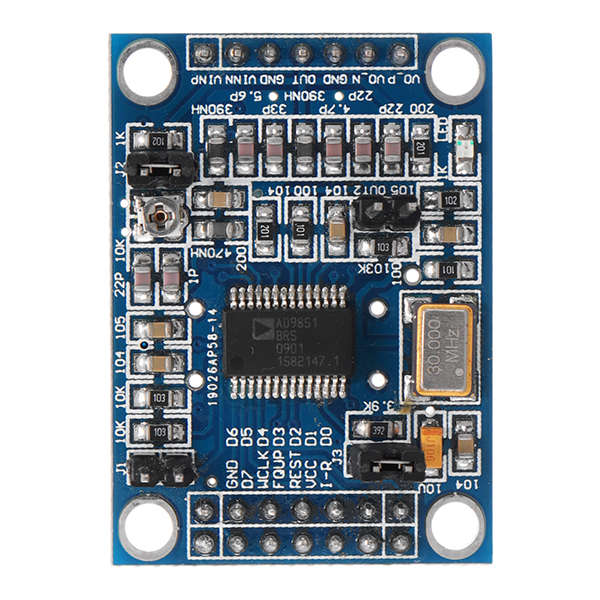

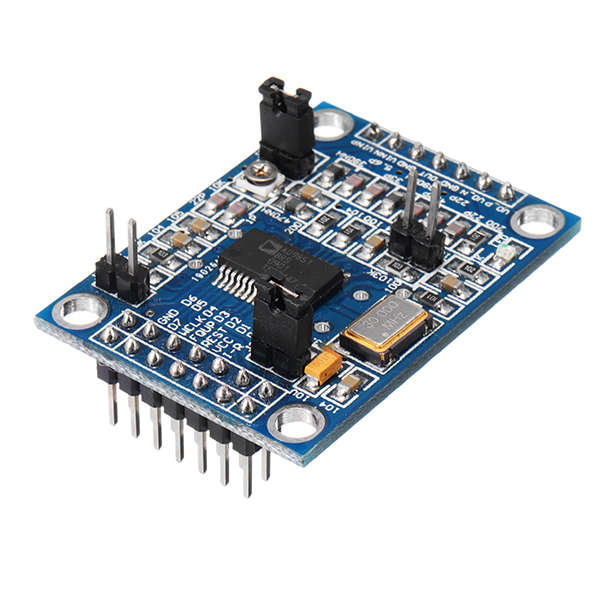

AD9851 DDS Signal Generator Module 2 Sin Wave(0-70MHz) And 2 Square Wave(0-1MHz)

20 available / new

R914.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3513

93.42 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

643372314

Description:
DDS information Description:Output 2 sine wave and 2 square wave - AD9851: 0-70MHz - Harmonics increases frequency increases after the 20-30MHz, the waveform Getting worse - Square Wave: 0-1MHz - Use 70MHz Low-pass filter, make Waveform SN ratio Better - Parallel and serial data input can be selected via a jumper - DA benchmark Pin (PIN12) output, Convenient to do the output waveform Rate adjustment application. - Comparator reference input voltage is Generated by the variable resistor, - Adjustment this resistance can get different duty cycle square wave - AD9851 module Using 30MHZ Active crystal - AD9851 Clock frequency up to 180MHz, AD9851 has 6 octave

Package included:

1 xAD9851 DDS Signal Generator Module
