315MHz XD-FST XD-RF-5V Wireless Transmitter Receiver Module Board

20 available / new

R379.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3466

93.51 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

641107107

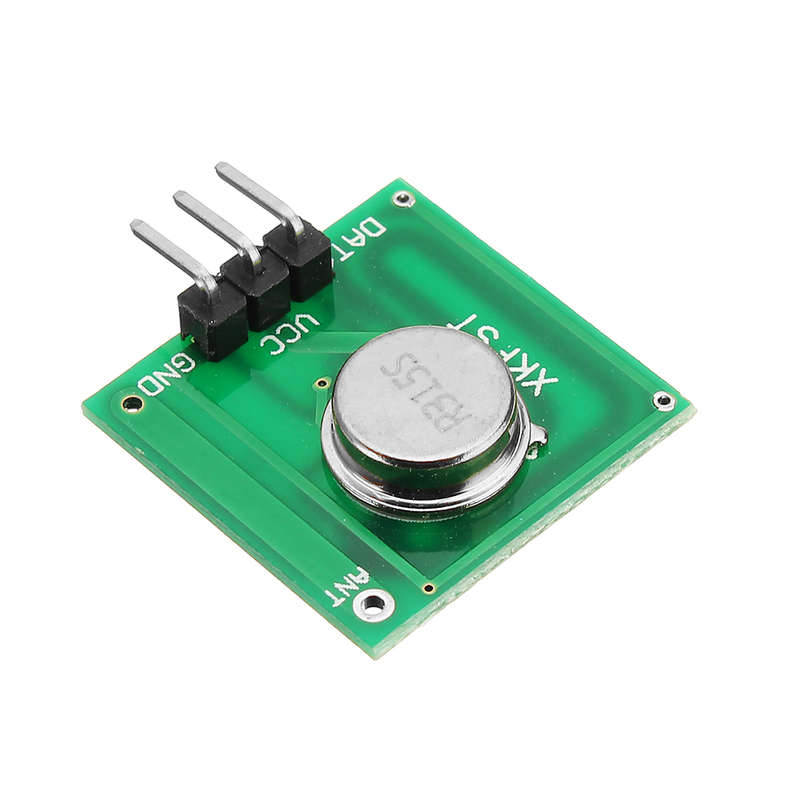

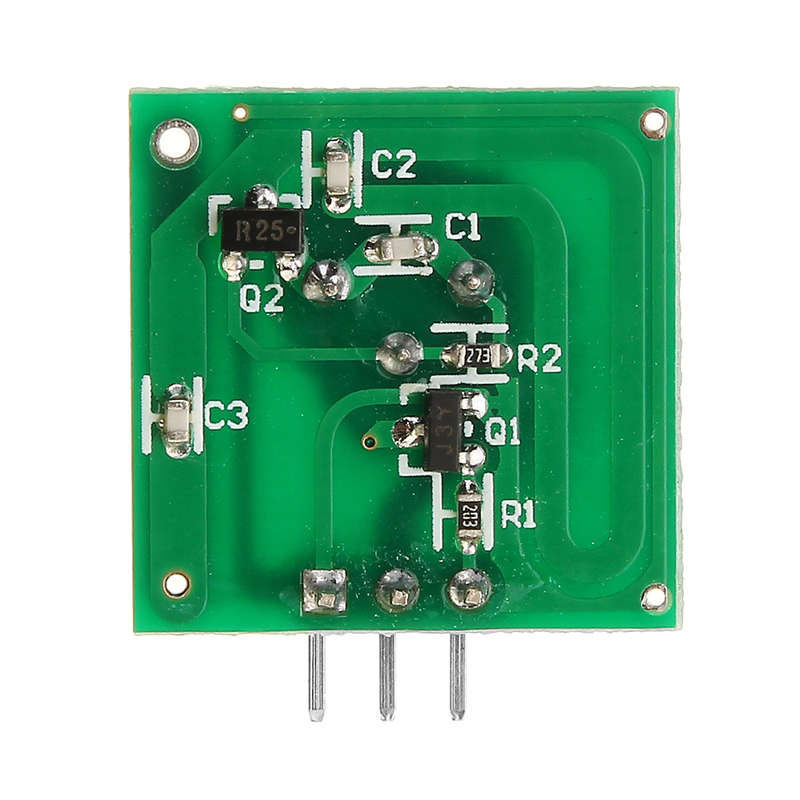

Transmitter Module

Specification:

Working voltage: 3V ~ 12V
Working current: 20mA ~ 28mA
Standby current: 0mA
Working frequency: 315MHz
Transmitter distance: >500m (sensitivity can be above -103dBm if in wide field)
Output power: 16dBm (40mW)
Transmitter rate: <10Kbps
Modulation mode: OOK (AM)
Working temperature: -10ﾣC ~ +70ﾣC

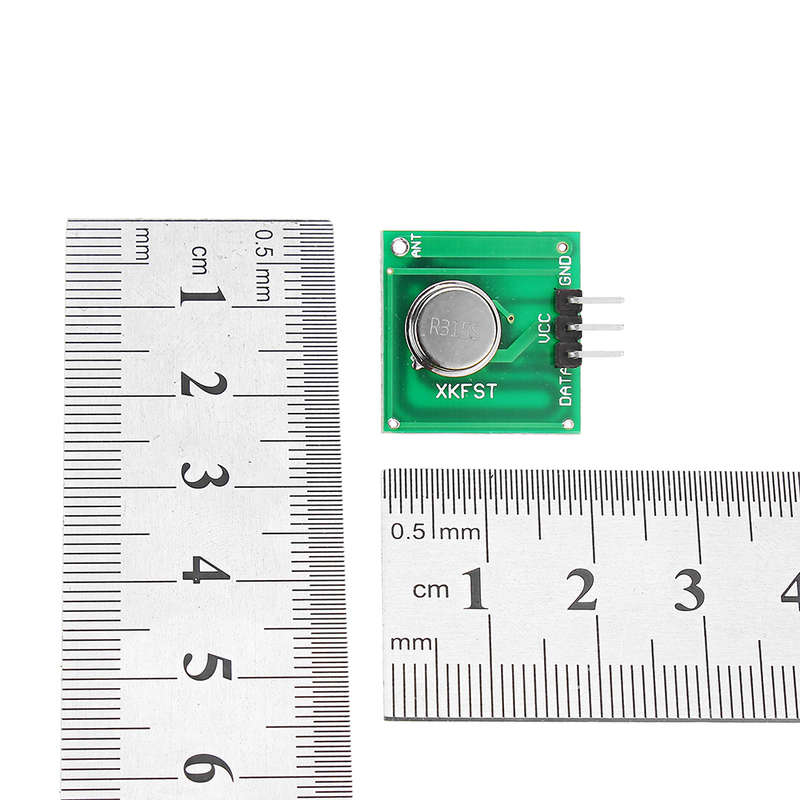

Size: 19 x 19 x 8mm
Stable performance
Wider range of working voltage

Pins:

PIN1 ATAD: data input
PIN2 VCC: power +
PIN3 GND: power -

Application:

Wireless calling system, burglar alarm, wireless data transmission, automated data acquisition system

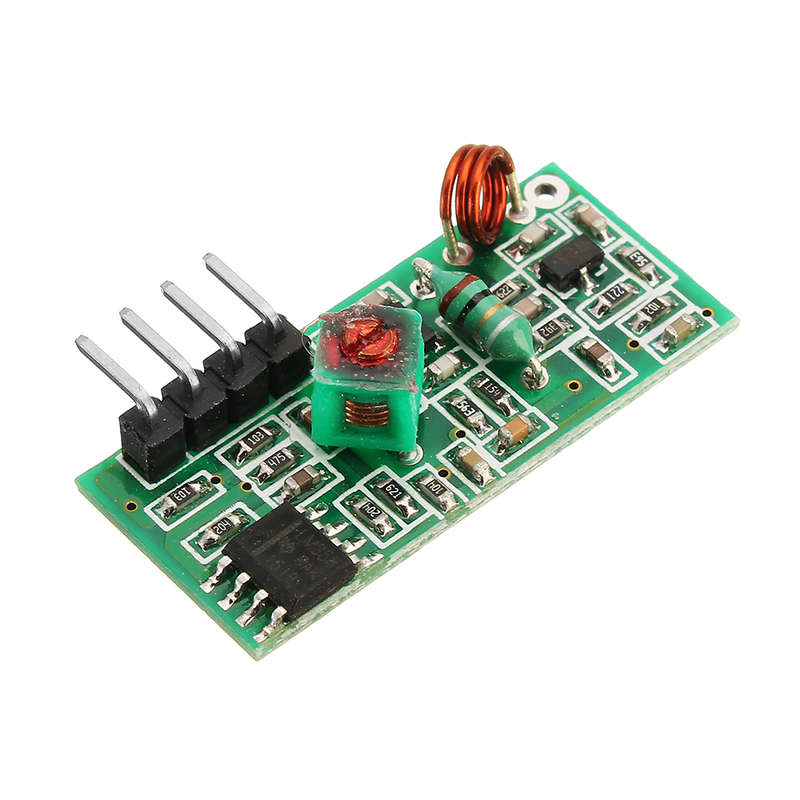

Receiver Module (5V super-regeneration)

Specification:

Working voltage: DC 5V
Working current: 4mA
Modulation mode: OOK (AM)
Working temperature: -10ﾣC ~ +70ﾣC
Receiving sensitivity: -110dB
Working frequency: 315MHz

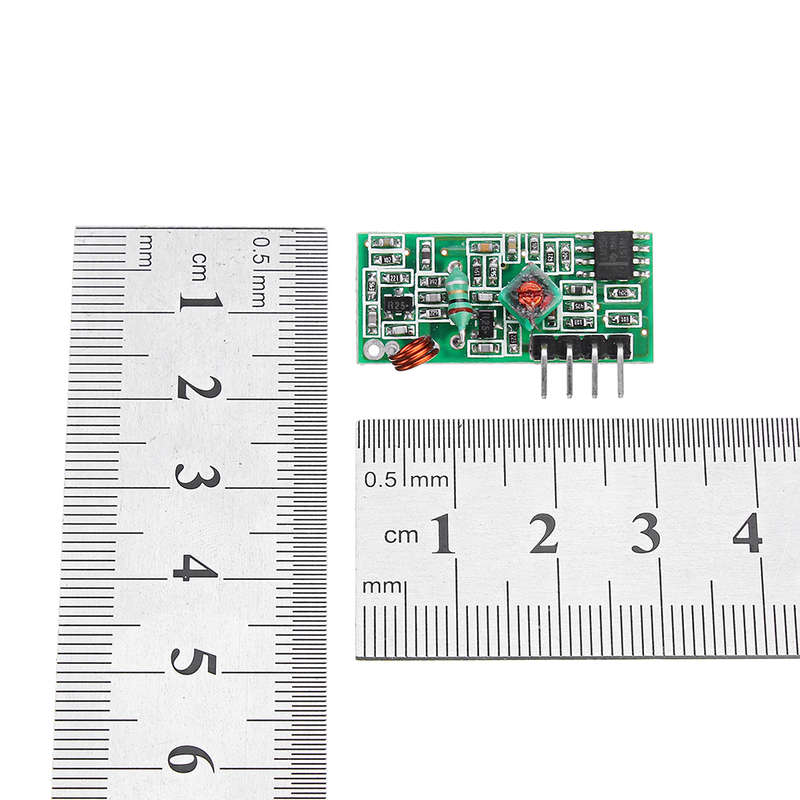

Size: 30 x 14 x 7mm
Using LC oscillating circuit, include amplification
Output data signal is TTL level
Connect to decoder directly

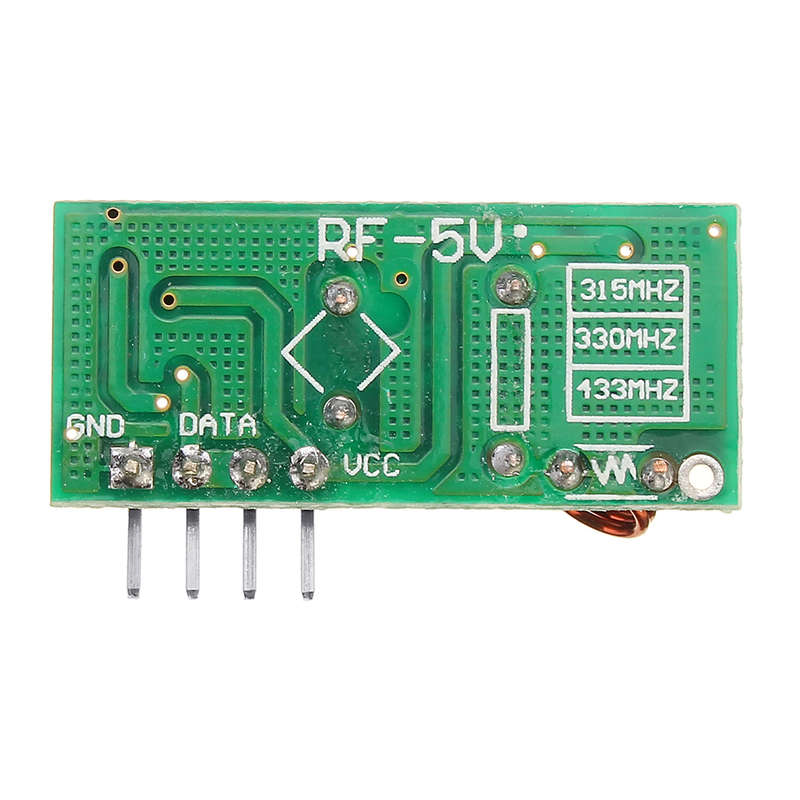

Pins:

PIN1 ANT: antenna
PIN2 VCC: power +
PIN3/4 DATA: data output
PIN5 GND: power -

Application:

Wireless remote control switch, remote control socket, data transmission, remote control toys, anti-theft alarm host

Note:

The antenna has large impact on reception of the module, the best antenna wavelength is 1/4, and generally use 50Ohm single wire, the antenna length of 315M one is about 23cm.
Also the position of the antenna affect the reception of the module, keep the antenna stretched and away from the shield, high pressure, and interference source as far as possible.

Package included:

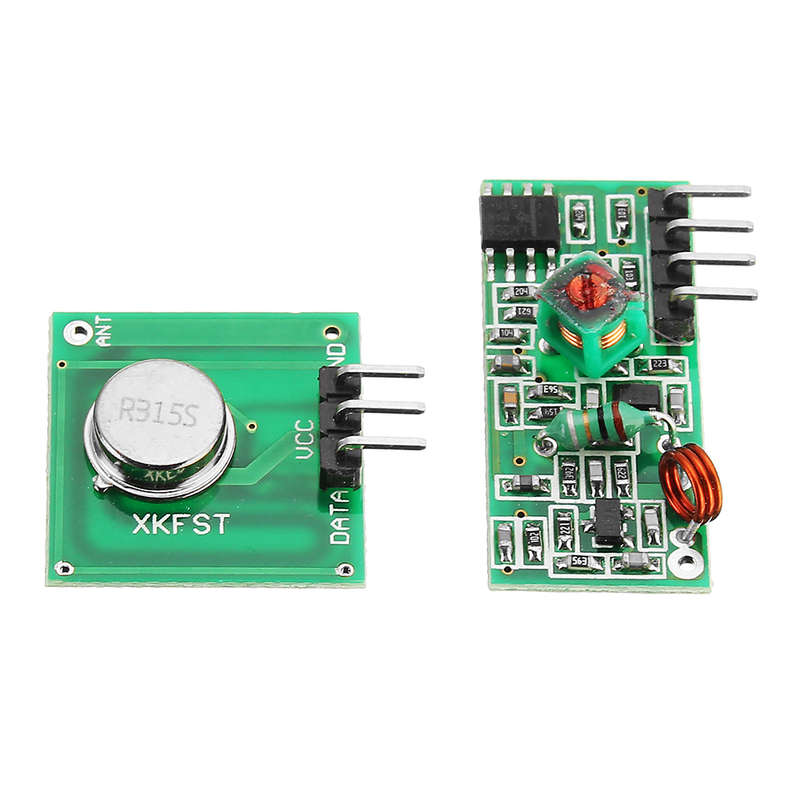

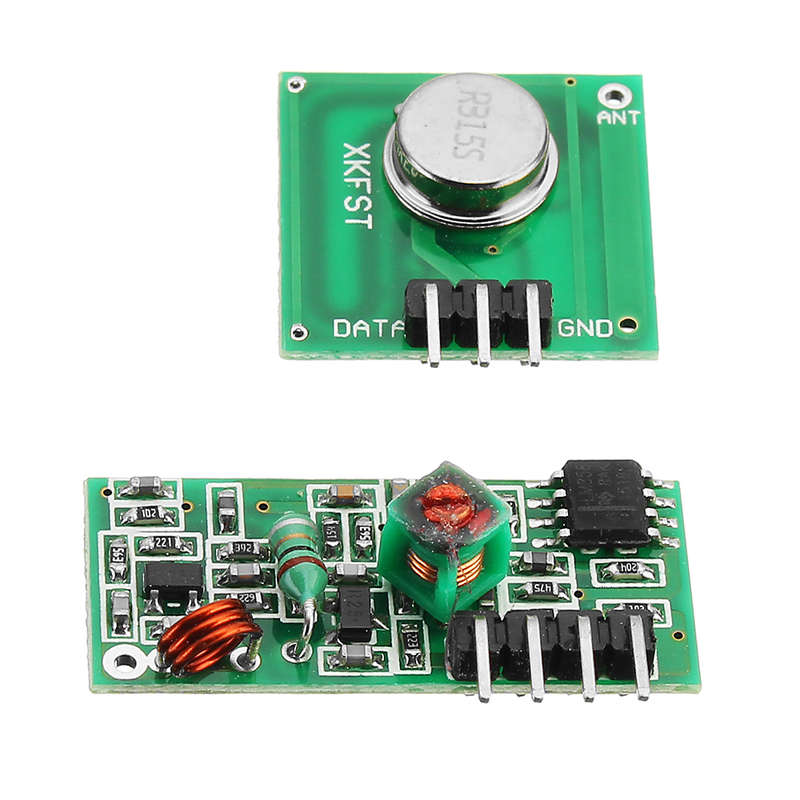

1 x 315MHz RF Wireless Receiver module
1 x 315MHz RF Wireless Transmitter module
