DC3-9V 315MHz/433MHZ Wireless Receiver Module High Power RF Wireless Transmis... (FREQUENCY: 315MHZ)

20 available / new

R364.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3465

93.39 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

641121319

SELECTED OPTION:
FREQUENCY: 315MHZ

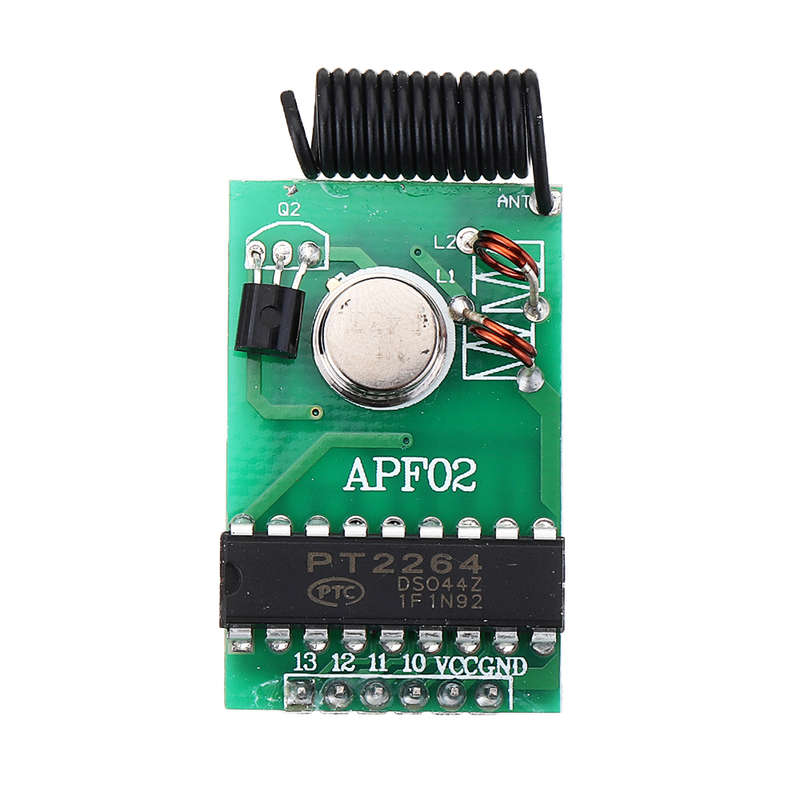

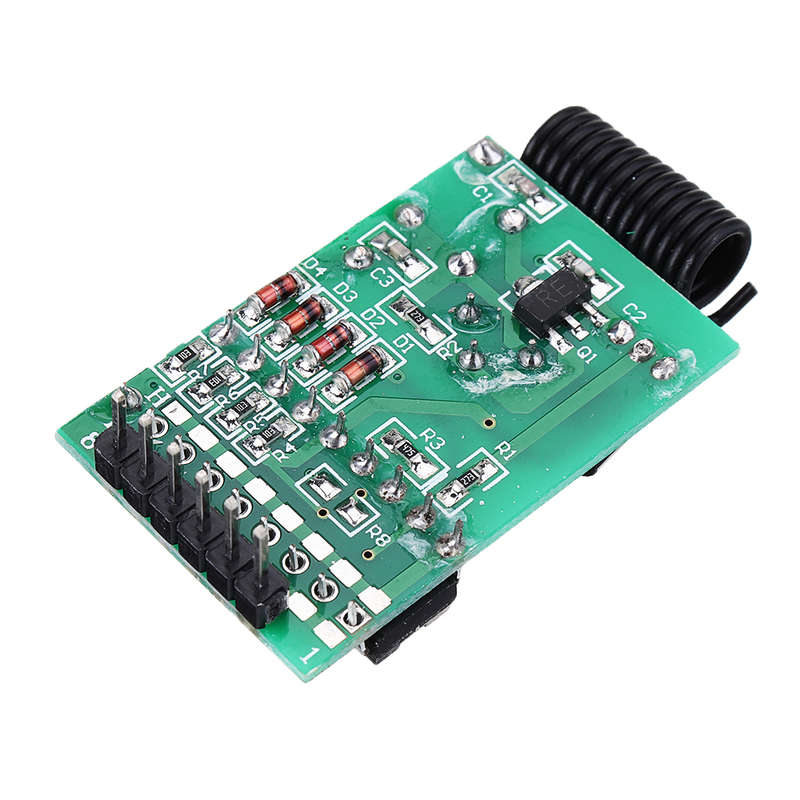

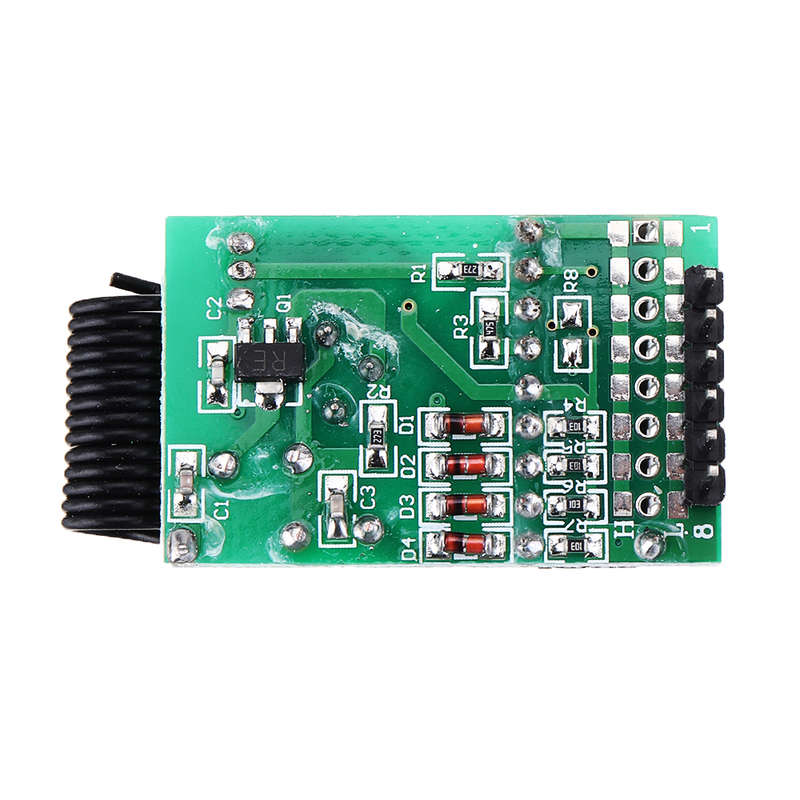

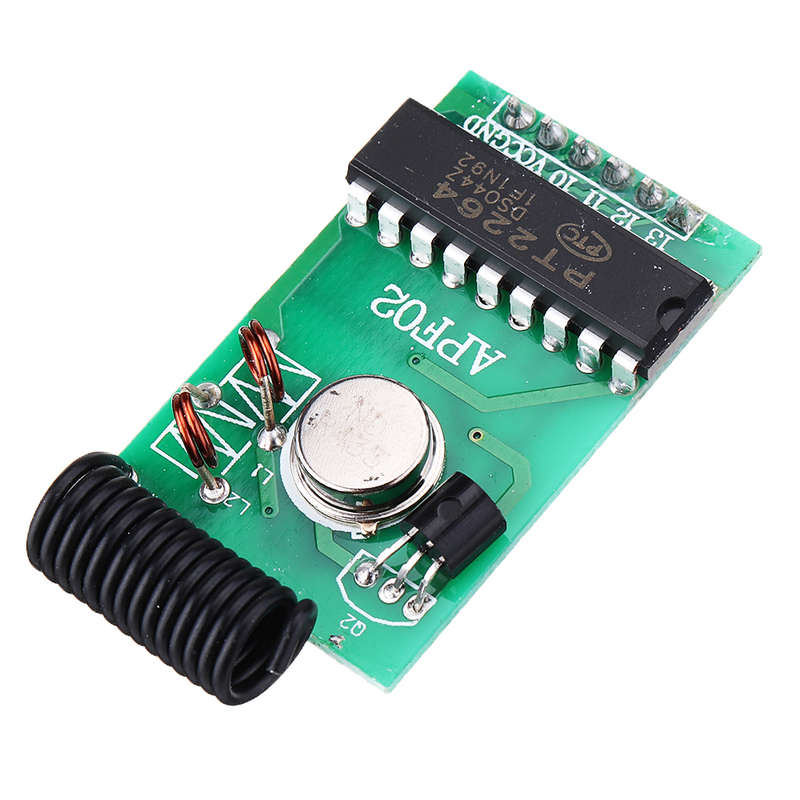

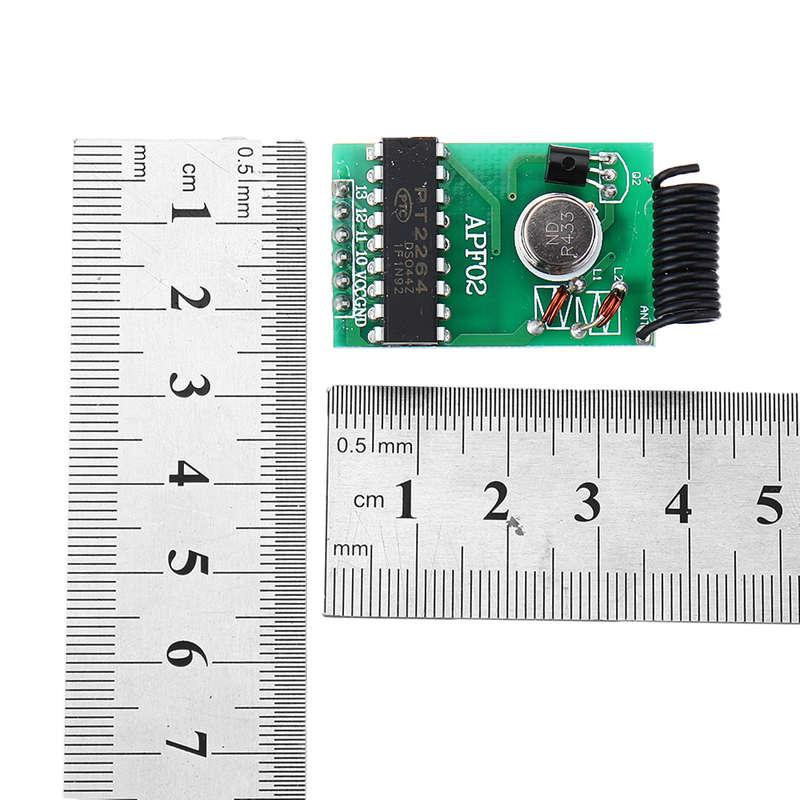

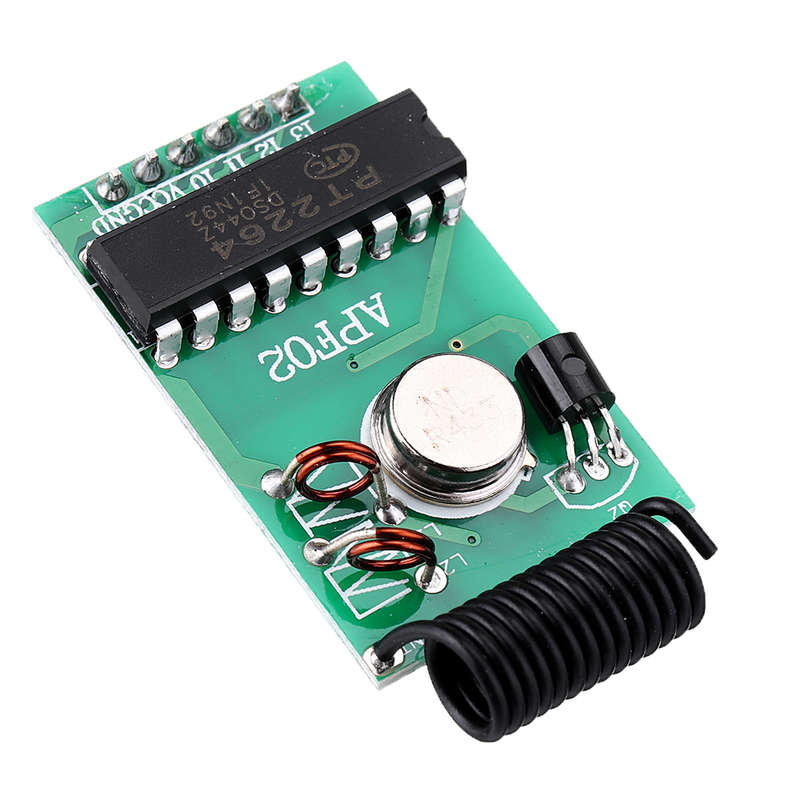

Description: Stable performance; Wide operating voltage range; Good product consistency and high cost performance; The on-board coding chip is easy to use. Technical parameter: Working voltage: DC3-9V Working frequency: 315MHz/433MHZ (optional) Standby current: 0mA Working current: 15mA Coding method: Fixed code Transmission distance: >500m (opening board sensitivity is above -103dBm) Output power: 15dBm (32mW) Transmission rate: <10Kbps Modulation method: OOK (amplitude modulation) Working temperature: -10ﾣC~+70ﾣC Size: 36 23 8mm

PIN	NAME	Function
1	13	Data pin
2	12	Data pin
3	11	Data pin
4	10	Data pin
5	VCC	Power +
6	GND	Power -
7	ANT	Antenna end

Precautions for use: 1. Use a flexible wire or other hard metal (such as a whip antenna) for the antenna to a length of approximately 28 cm (315 MHz) / 24cm (433MHz) and use it as straight as possible. Do not approach metal objects. 2. The power supply voltage is stable and the ripple factor is low. Multi-stage filtering is required (such as adding beads, inductors, capacitors, etc.). 3. If the MCU clock frequency is below 4MHZ and the crystal is as far away as possible from the RF receiver module, the higher harmonics of the crystal will affect the communication distance. 4. Note that the rate of the encoding IC and the decoding IC is the same and the format of the code is the same (that is, the oscillating resistance is matched), otherwise the distance will be affected and the communication will not be possible.
Package includes:

1 xReceiving Board
