The perfect solution for load shedding!

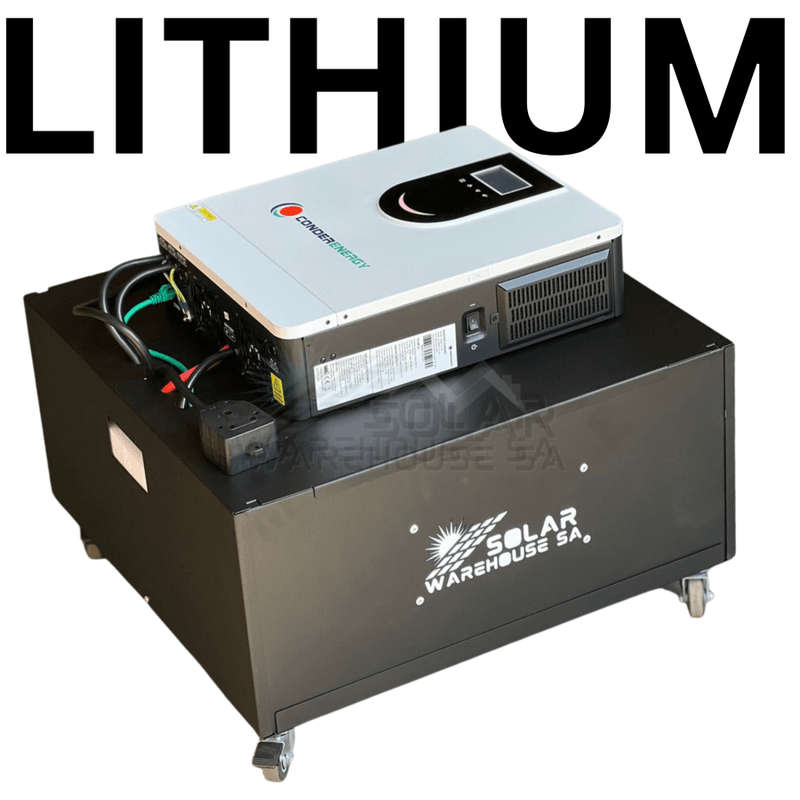

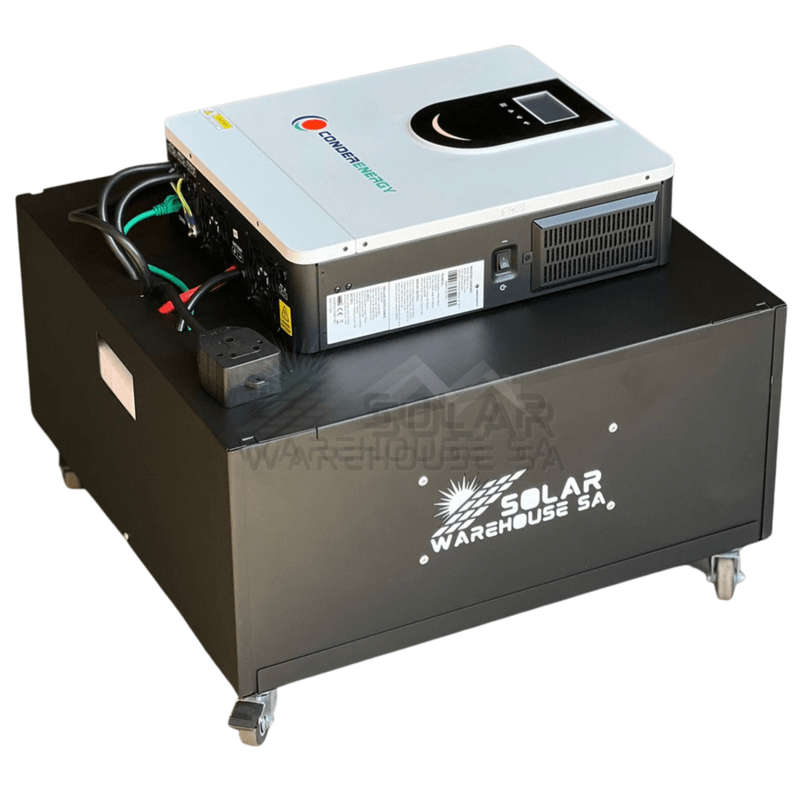

The all-in-one portable plug & play inverter battery trolley system (Heavy Duty Inverter Trolley) Easy portable compact unit with lock wheels as well as handles to carry the system.
PLEASE NOTE TROLLEYS TAKE 2-3 HOURS TO ASSEMBLE
What is an all-in-one portable plug & play Solar Ready inverter system and what does it do?
It is an inverter unit connected to a battery that provides power when there is load shedding. It will charge your battery once the power is on. As soon as load shedding hits, your inverter system instantly transfers over to battery power. This will allow you to keep your lights, TV, computers, chargers, and wifi running during load shedding. Solar ready: Add a solar panel and charge your batteries when there is no power.
How much battery backup power will I have when the power is off?
If you connect 100w which is usually a TV, Wifi, Lights, etc. This portable system will last 25-27 Hours With a 100% DOD.

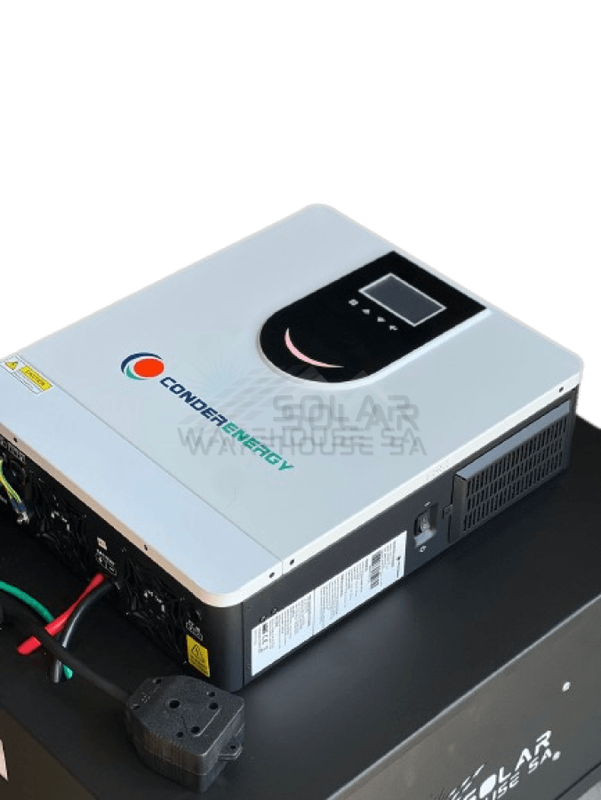

Inverter Specifications & Fixtures:
Maximum PV Input Power 6200W
RATED OUTPUT POWER 3500W/3500VA
GRID-TIE OPERATION
PV INPUT(DC).
Nominal DC Voltage/Maximum DC Voltage 2400VDC/500VDC
MPPT Voltage Range 60VDC/450VDC
Maximum Solar Charge Current 120A
Number of MPPT Trackers/Maximum Input current 1/27A
GRID OUTPUT(AC)
Nominal Output Voltage 220/230/240VAC
Output Voltage Range 195.5-253VAC
Nominal Output Current 15.7A
Frequency Range 49-5121Hz/59-61±1Hz >0.99
Power Factor 0.99
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage 230VAC 5%
Output Waveform Pure sine wave
Efficiency (DC to AC) 94%
PHYSICAL
Dimension, D*W*H(mm) 500 X 415 X 180
Net Weight(kgs) 10KG
INTERFACE
Communication Port RS232/GPRS/WIFI
OPERATING ENVIRONMENT
Humidity 5% to 95% Relative Humidity (Non-condensing)
Operating Temperature -10C TO -50C
Storage Temperature -10C TO -60C
Add a wifi dongle:
https://solarwarehousesa.com/products/vito-hybrid-inverter-wifi-dongle?_pos=2&_sid=39492697d&_ss=r
What's in the box
1 x Inverter
1 x User Manual
Battery Specifications:
The SVOLT A-Grade Lithium Battery is manufactured by a world-leading manufacturer SVOLT which is joined with the Haval groups which we all know are extremely recognized for their vehicles, using A-Grade Battery cells. This allows superior performance, capacity, and reliability. Using state of high power A-Grade cell technology, the Lithium Battery is designed for environmentally sensitive areas and is committed to recycling.

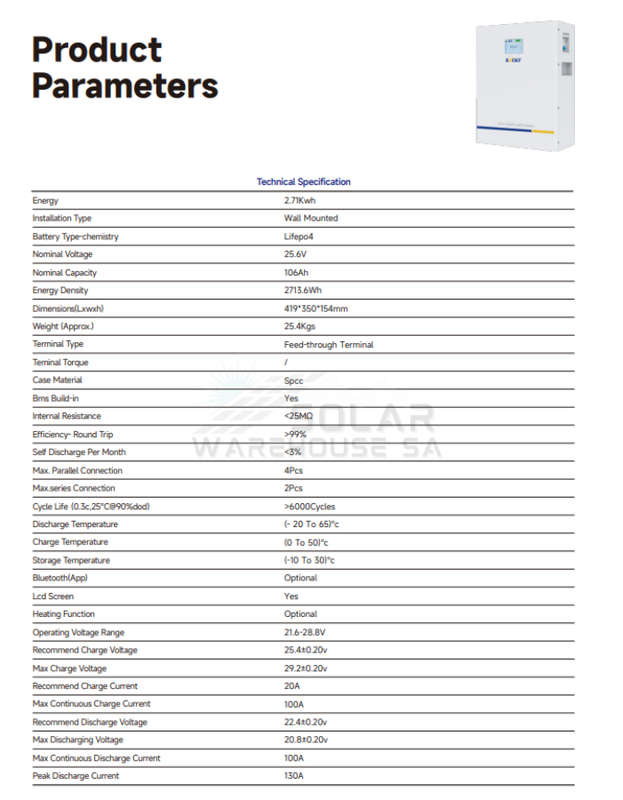

Specifications:
Energy: 2.71 kWh
Installation Type: Wall Mounted
Battery Type-Chemistry: Lifepo4
Nominal Voltage: 25.6V
Nominal Capacity: 106Ah
Energy Density: 2713.6 Wh
Dimensions (LxWxH): 419 x 350 x 154 mm
Weight (Approx.): 25.4 Kgs
Terminal Type: Feed-through Terminal
Case Material: SPCC
BMS Built-in: Yes
Internal Resistance: <25 m
Efficiency- Round Trip: >99%
Self Discharge Per Month: <3%
Max. Parallel Connection: 4 Pcs
Max. Series Connection: 2 Pcs
Cycle Life (0.3c, 25 @ 90% DOD): >6000 Cycles
Discharge Temperature: (-20 to 65)°C
Charge Temperature: (0 to 50)°C
Storage Temperature: (-10 to 30)°C
Bluetooth (App): Optional
LCD Screen: Yes
Heating Function: Optional

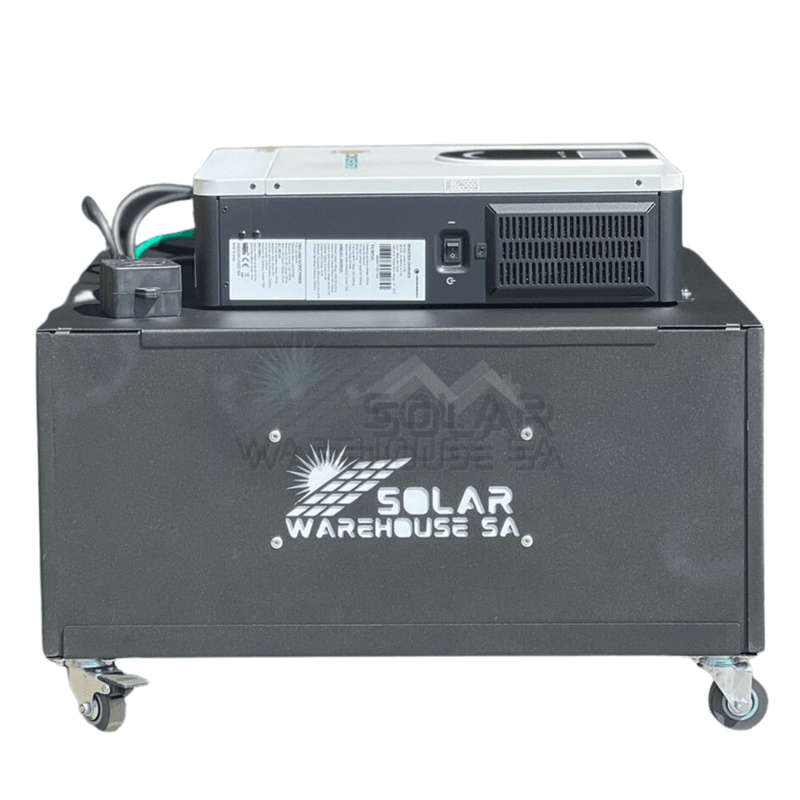

Size Of The Trolley:
50cm (H) x 61 (L) x 61 (W)
38kg
What's In the Box:
- 1 x SVOLT 24V 106Ah 2.71 kWh A-Grade Lithium Battery
- 1 x Red (Positive) Battery Cable
- 1 x Black (Negative) Battery Cable
- 1 x Ethernet cable
- 1 x Manual
What's In the Box:
1x SVOLT 24V 106Ah 2.71 kWh A-Grade Lithium Battery Without Comms CNN2511 (XEA25A) (5 Years Warranty)
1x Hybrid Inverter 3.5 KVA 3500 Watt MPPT 24V- Conderenergy S-2435(12 Months Repair Warranty)
1x Battery Fuse
1x 1m Power Cable With a Power Surge Wall Plug
1x 1m Cable With Power Socket
1x Heavy Duty Steel Portable Box With Lock Wheels & Handles
