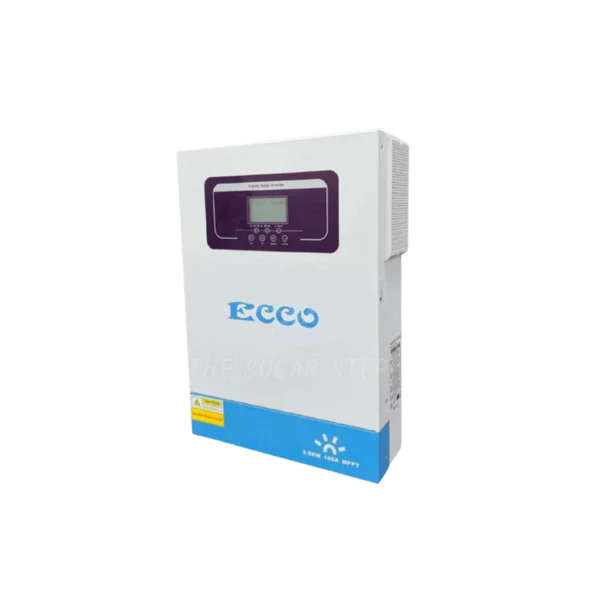

ECCO 5500W 48V MPPT 100A Pure Sine Wave Hybrid Solar Inverter

Experience efficient solar energy conversion with the ECCO 5500W 48V MPPT Pure Sine Wave Hybrid Inverter. Ideal for optimizing solar installations with high voltage, achieving your renewable energy goals with ease.

• Output: 5500VA/5500W with a power factor of 1, ensuring consistent performance.
• Wide PV input voltage range: 120VDC to 500VDC for versatile solar applications.
• Built-in 100A MPPT solar controller for efficient energy management.
• Flexible output priority options: UTL, SOL, SBU, SUB for customized control.
• Expandable with parallel operation support (up to 12 units, single or 3 phase).
• Features wireless parallel capability, eliminating the need for extra cables.
• RS485 communication interface for seamless integration with BMS.
• Wifi monitoring to keep track of your system's performance in real-time.
• Battery equalization to enhance battery lifespan and efficiency.

Specifications

Inverter Mode

• Rated Power: 5500VA / 5500W
• DC Input: 48VDC, 127A
• AC Output: 230VAC, 50/60Hz, 23.9A

AC Charger Mode

• AC Input: 230VAC, 50/60Hz, 40A
• DC Output: 54VDC
• Max. Charge Current (AC): 60A (default 30A)
• Max. Charge Current (PV+AC): 100A
• AC Output: 230VAC, 50/60Hz, 23.9A

Solar Charge Mode

• Max. PV Array Power: 5500W
• Min. Solar Voltage: 120VDC
• Max. Solar Voltage (VOC): 500VDC
• Max. MPPT Charge Current: 100A

Ingress Protection: IP21 (for indoor use)

Dimensions: 38 x 55 x 20 cm

Weight: 9.65 kg

For optimal performance, pair with ECCO batteries and solar panels. Important: Professional installation by a certified PV installer is necessary to ensure safety and compliance with regulations, along with a Certificate of Compliance.
