3KVA / 3000W 24V MUST Hybrid Inverter Plug & Play System + 2x 120AH Deep Cycle Gel Batteries (SOL...

3KVA / 3000W 24V MUST Hybrid Inverter Plug & Play System + 2x 120AH Deep Cycle Gel Batteries (SOLAR READY)

Description:

Reliable Backup Power for Load Shedding & Solar Integration

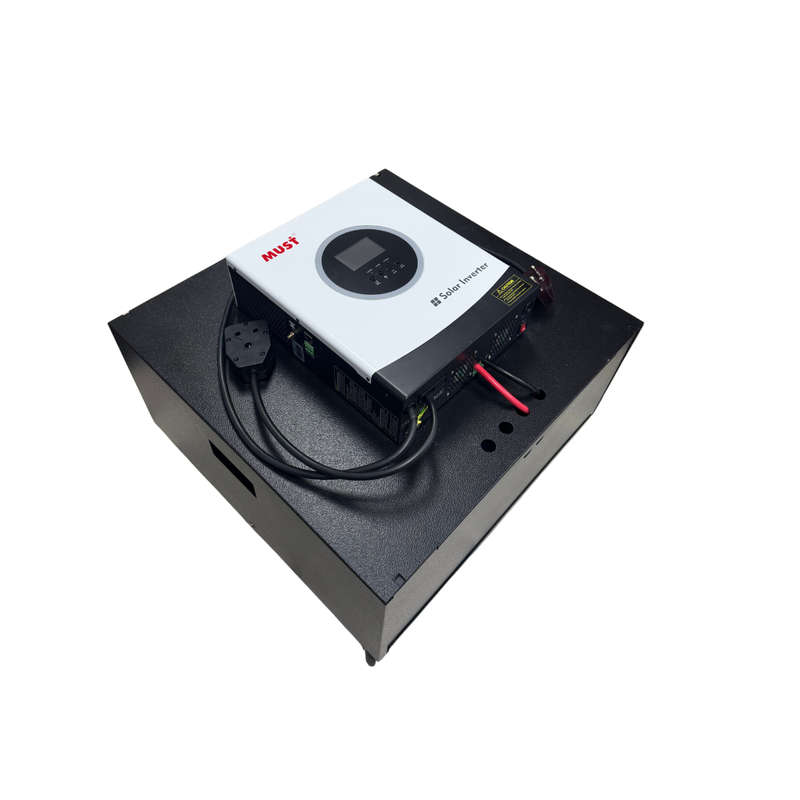

This portable all-in-one inverter system is designed for seamless power backup during load shedding. Featuring a MUST 3kW Hybrid MPPT Inverter and 2x 120AH Deep Cycle Gel Batteries, this system ensures uninterrupted power for WiFi, lights, TVs, computers, and essential appliances. Solar-ready for added efficiencysimply connect a solar panel to charge batteries even when grid power is unavailable.

A plug-and-play power system is a simple backup solution that provides electricity during load shedding or power outagesno complex installation required.

How It Works:

1. Plug it into a wall socket  The system charges its built-in battery while the power is on.
2. Automatic Power Switching  When the electricity goes off, the system instantly switches to battery power.
3. Keep Essentials Running  You can plug in WiFi, TV, lights, laptops, and chargers directly into the system.
4. Recharge When Power Returns  Once the electricity comes back, the system automatically recharges for the next outage.
5. Solar Ready (Optional)  You can add solar panels to charge the system even when there is no grid power.

Key Features:

Advanced Inverter Technology

• 3kW Pure Sine Wave Output for stable power delivery
• Smart LCD Display with customizable settings for voltage, charge current, and working modes
• Built-in 80A MPPT Solar Charger for efficient energy conversion
• Multiple Power Modes: Solar-Utility-Battery (SUB), Utility-Solar-Battery (USB)
• Parallel Operation Support (up to 3 units for 4kW/5kW models)
• Overload, short circuit, and deep discharge protection

Efficient Lithium Battery Storage

• Fast Charging for efficient power management
• BMS (Battery Management System) Protection against overcharging and deep discharge

Plug-and-Play Convenience

• Compact & Portable Design with a steel enclosure and lockable wheels
• Pre-installed Surge Plug & Disconnector for easy setup
• Double-sided female plug socket for quick appliance connection

Power Backup Duration

• Runs 150W Load (TV, WiFi, Lights, etc.) for 8-10 Hours
• Rechargeable via grid power or solar panels (optional)

Installation & Maintenance

• Must be installed by a qualified professional
• COC (Certificate of Compliance) required upon installation
• System should remain plugged in and switched on to maximize battery lifespan

Technical Specifications:

Inverter (MUST PV1800 - PV18-3024 VPM)

• Rated Power: 3000VA / 3000W
• DC Input: 24VDC, 130A
• AC Output: 230VAC 50/60Hz, 13A
• MPPT Solar Charger: 60A, supports 30-120VDC input
• Maximum Solar Input Voltage: 145VDC

What's in the Box?

1x MUST 3kW Hybrid Inverter (PV1800)
2x 12V 120AH Deep cycle gel Battery
1x Portable Steel Box with Lock Wheels

1x Surge Plug (1m 2.5mm Cabtyre Power Cable)
1x Double-Sided Female Plug Socket
1x Fuse + Disconnector
1x User Manual

Size & Weight:

• Dimensions: 60cm x 60cm x 45cm
• Total Weight: Approx. 50kg

Warranty & Compliance

• 2-Year Repair Warranty on INVERTER
• Installation must comply with SANS 10142 regulations
• Warranty claims require installation by a certified electrician with a valid COC
