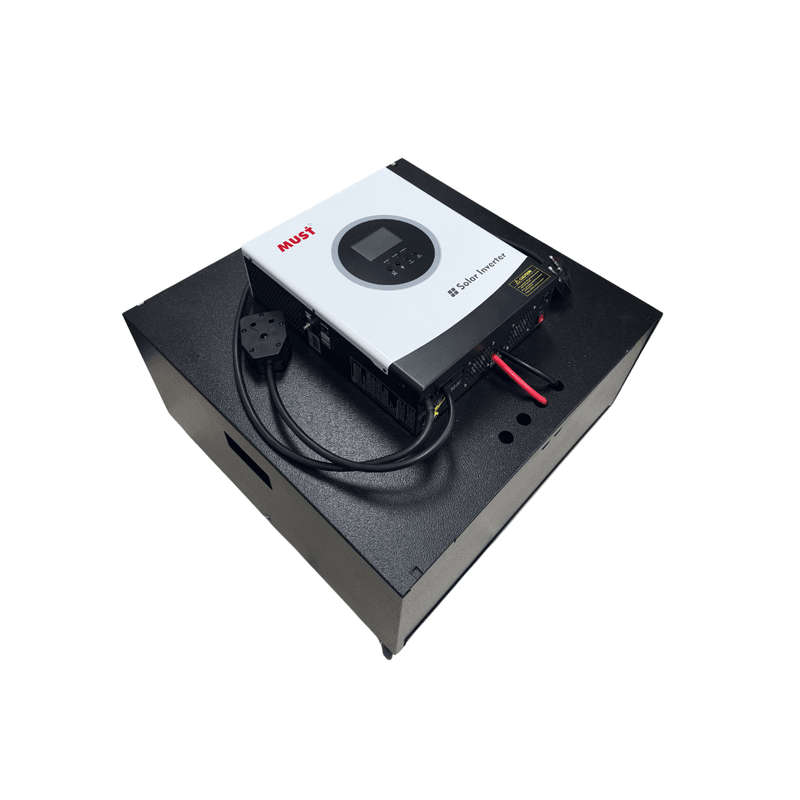

3KVA / 3000W 24V MUST Portable Plug And Play Power System + 2x 120AH Gel Batteries (Solar Ready)
Reliable Backup Power for Load Shedding & Off-Grid Use
The MUST 3KVA Hybrid Inverter System is a plug-and-play power backup solution, designed to keep essential appliances running during power outages. This all-in-one system is ideal for homes, small offices, and off-grid applications, providing seamless power transfer with the option to integrate solar panels for added energy efficiency.
Key Features:
3KVA / 3000W Pure Sine Wave Output Stable power for sensitive electronics
Hybrid Functionality Charges batteries from solar, grid power, or a generator
Smart LCD Display Provides easy monitoring & configuration
Built-in MPPT Solar Charge Controller (50A/60A) Maximizes solar energy efficiency
Automatic Load Transfer Instantly switches to battery power during outages
Multiple Protection Features Includes overload, short circuit, and deep discharge protection
Parallel Operation Expandable up to 3 units (4KW/5KW models only)
WIFI Remote Monitoring (Optional) Track system performance remotely
Heavy-Duty Steel Casing with Lock Wheels Durable and portable
How Long Will the Backup Last?
150W Load (TV, WiFi, Lights, Router): 8 - 10 hours
To extend battery life, keep your inverter plugged in and switched on to ensure a full charge at all times.
Technical Specifications
Inverter Specifications:
- Model Name: PV1800
- Capacity: 3KVA / 3000W
- Battery Voltage: 24V DC
- Parallel Capability: No
- Protection Class: Class I
- IP Rating: IP20 (Indoor Use)
Input (AC Power):
- Nominal Voltage: 230V AC
- Acceptable Voltage Range:
- 170-280V AC (Computers & Sensitive Electronics)
- 90-280V AC (General Appliances)
- Frequency: 50/60Hz (Auto Sensing)
Output (Power Supply):
- Nominal Voltage: 220/230V AC ±5%
- Surge Power: 7000VA
- Frequency: 50/60Hz
- Waveform: Pure Sine Wave
- Transfer Time:
- 10ms (Computers & Electronics)
- 20ms (General Appliances)
Solar Charger & Battery Charging:
- Solar Charger Type: MPPT (Maximum Power Point Tracking)
- Maximum PV Input Power: 1500W
- MPPT Voltage Range: 30V - 120V DC
- Maximum PV Open Circuit Voltage: 145V DC
- Maximum Solar Charge Current: 80A
- Maximum AC Charge Current: 20A / 30A
Battery Specifications:
2x 120AH Deep Cycle Gel Batteries
- Battery Type: Sealed Gel, Deep Cycle
- Capacity: 120Ah (Each)
- Voltage: 12V (Each) 24V System
- Maintenance-Free: No water refilling required
What's Included in the System?
1x 3KVA / 3000W MUST Hybrid MPPT Inverter (24V)
2x 120AH Deep Cycle Gel Batteries
1x Heavy-Duty Portable Steel Box (With Lock Wheels)
1x Multi-Plug
1x Battery Fuse
1x Male + Female Solar Connector
1x Power Cable with Surge Protection
1x User Manual
Warranty:
- Inverter: 2-Year Repair Warranty
- Batteries: 90-Day Replacement Warranty Only
Installation RequirementÂ
By law, this product requires installation by a qualified professional. A Certificate of Compliance (COC) must be issued upon installation to ensure safe and legal operation.
Why Choose This System?
Reliable Load Shedding Backup Power your essentials during outages
Plug & Play Convenience Ready-to-use setup with solar-ready expansion
Energy Efficient MPPT maximizes solar charging and extends battery life
Durable & Portable Design Heavy-duty casing with lockable wheels
Get yours today and enjoy uninterrupted power!
