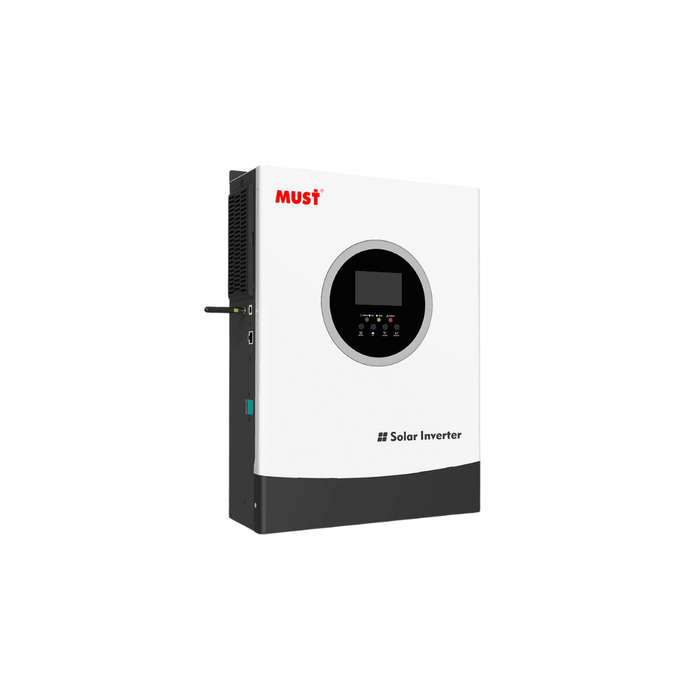

3KVA / 3000W Must 24V MPPT 100A Hybrid Inverter

PV1800 is the latest multi-function inverter/charger model from MUST, combining functions of inverter, MPPT solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

MUST 3KVA (3000W) 24V MPPT 100A Hybrid Solar Inverter Pure Sine Wave, Off-Grid Power Solution

Product Overview

The MUST PV1800 Hybrid Solar Inverter is a multi-function power solution that integrates an inverter, MPPT solar charge controller, and battery charger into a compact unit. Designed for off-grid applications, it ensures a reliable power supply with advanced features such as a pure sine wave output, high efficiency, and user-configurable settings via an LCD display. Ideal for residential and commercial use, this inverter supports various battery types, including lead-acid and lithium.

Key Features:

• Pure Sine Wave Output: Ensures stable power delivery for sensitive electronics.
• High Efficiency: Peak efficiency of 90-93% for optimal energy conversion.
• Advanced MPPT Technology: Maximizes solar power utilization with an input voltage range of 30V-360V DC.
• Flexible Charging Options: Supports solar and AC charging with a maximum charge current of 100A.
• User-Friendly LCD Interface: Allows easy configuration of battery charging current, AC/solar priority, and voltage settings.
• Multiple Safety Protections: Includes overcharge, over-discharge, short-circuit, and overload protection.
• Compact & Durable Design: Space-saving form factor with robust build quality.

Technical Specifications:

• Rated Power: 3000W (3KVA)
• Battery Voltage: 24V DC
• Surge Power: 6000W
• AC Voltage Regulation: 230V AC ±5%
• PV Input Voltage Range: 60V-360V DC
• Maximum Solar Charge Current: 100A
• Maximum AC Charge Current: 60A
• Transfer Time: 10ms (UPS mode) / 20ms (APL mode)
• Operating Temperature: 0°C to 50°C
• Humidity Tolerance: 5% to 95% (non-condensing)
• Warranty: 2 years

What's in the Box:

• 1 × MUST 3KW 24V MPPT Hybrid Solar Inverter
• 1 × User Manual

Note: WiFi dongle not included.
