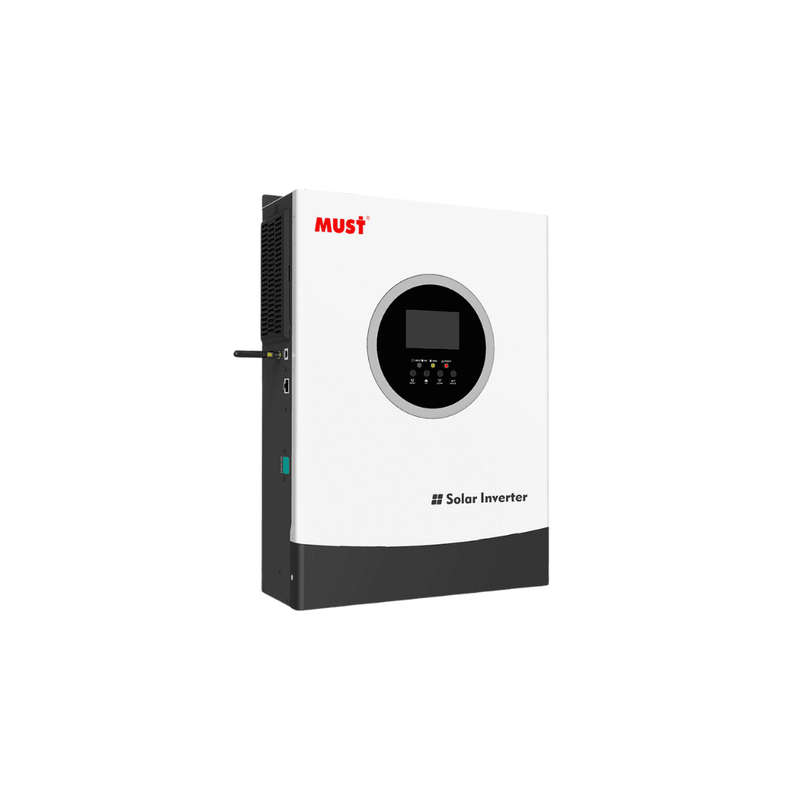

3KVA / 3000W Must 24V MPPT 60A Hybrid Solar Inverter with Pure Sine Wave

Product Overview

The PV1800 Must Hybrid Inverter is a versatile, all-in-one solution offering up to 3KVA/3000W of power for your solar energy needs. Featuring MPPT and battery charging capabilities, this inverter ensures continuous and efficient power supply.

Key Features

• Pure Sine Wave Output: Provides stable AC power for sensitive electronics.
• Advanced MPPT Charging: Efficient solar energy capture helps to minimize energy waste.
• Comprehensive LCD Display: User-friendly interface for easy operation and monitoring.
• Multi-Functional: Integrates inverter, solar charger, and battery charger.

Inverter Specifications

• Model: PV18-3024 PREM
• Rated Power: 3000VA/3000W
• Surge Power: 6000W
• Efficiency: 90-93%
• Transfer Time: 10ms (UPS) / 20ms (APL)

What's in the Box

• 1x 3KW 24V/80A Hybrid MPPT Inverter - MUST
• 1x User Manual
• Note: WIFI DONGLE NOT INCLUDED

Battery & Charging

• Nominal Voltage: 24VDC
• Floating Charge Voltage: 27.4VDC
• Overcharge Protection: 30VDC
• Maximum PV Input Current: 18A
• Charging Algorithm: 3-Step (Flooded, AGM, GEL), 4-Step (Lithium)

Mechanical Specifications

• Dimensions (W x H x D): 290 x 367 x 111 mm
• Net Weight: 6.6 kg
• Gross Weight: 7.6 kg

Environmental Conditions

• Operating Temperature: 0°C to 50°C
• Storage Temperature: -15°C to 60°C
• Humidity: 5% to 95% Relative Humidity (Non-condensing)

Warranty

This product comes with a 2-year warranty for peace of mind.
