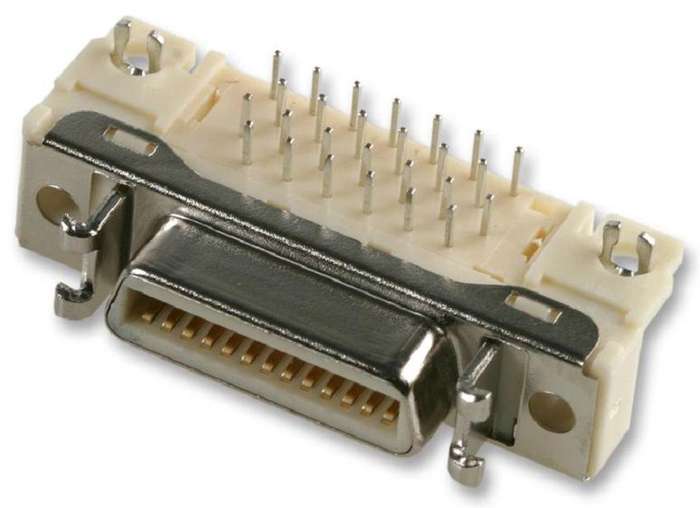

3M (10240-55G3PC) D Sub Connector, Right Angle, 40 Contacts

D Sub Connector, Right Angle, Mini D (Ribbon Connector), Receptacle, 102, 40Contacts, SolderProduct OverviewThe 102 series 0.05-inch Mini D Ribbon (MDR) Connector with board-mountthru-hole right angle shielded receptacle. It has copper alloy contact with30-micro-inch minimum gold wiping area, nickel under-plate plating and glassreinforced polyester insulation.Wiper-on-wiper contact for reliable repetitive pluggingRugged die cast metal case constructionSMT compatible PCT insulator materialScrew or ground lock for reliable PCB retentionInterface latch design for connection stabilityIEEE 1284C Interface as a 36 contact connector14, 20, 26, 36, 40, 50, 68, 80 and 100 contactsUL94V-0 Flammability rating5 x 10?R at 500VDC Insulation resistance1A Current rating-55 to 105°C Temperature rangeApplicationsCommunications & Networking, Computers & Computer Peripherals, Aerospace,Defence, MilitaryProduct InformationD Sub Connector Type: Mini D (Ribbon Connector)No. of Contacts: 40ContactsGender: Receptacle (View Associated Connectors)Product Range: 102Contact Termination Type: SolderConnector Mounting: Through Hole Mount Right AngleContact Material: Copper AlloyContact Plating: Gold Plated ContactsConnector Body Material: Steel Body
