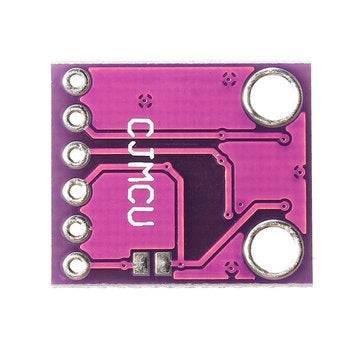

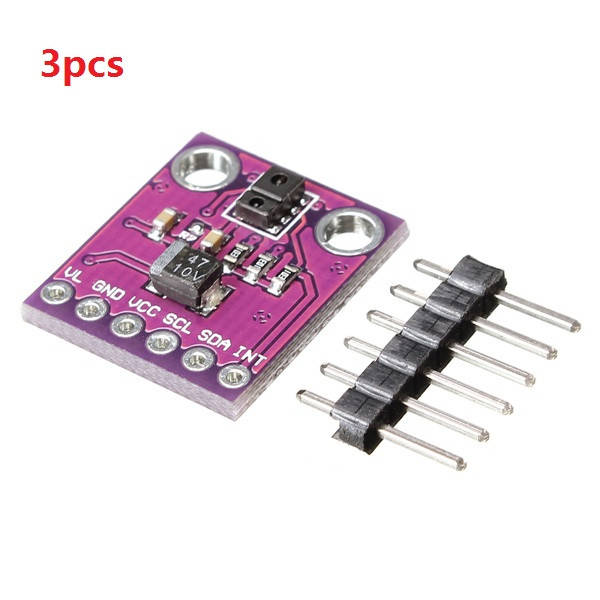

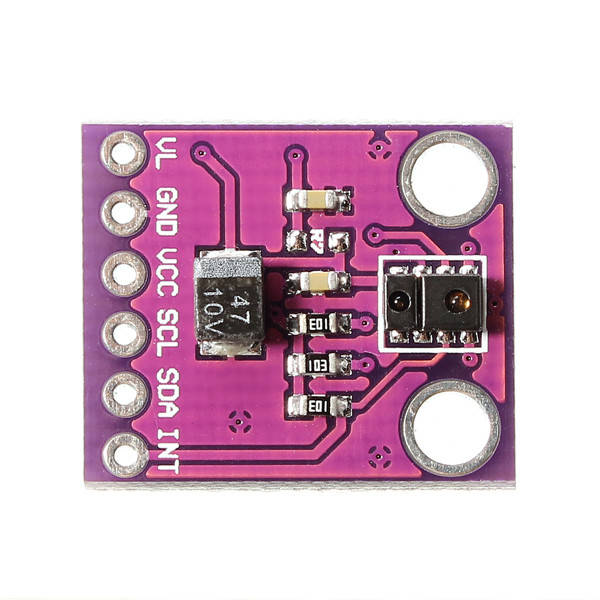

3pcs CJMCU-9930 APDS-9930 Proximity and Non Contact Gesture Recognition Detection Attitude Sensor

Features:

a Optical modules integrated with ALS, infrared LEDs and proximity detectors
a Ambient Light Sensing (ALS)
- Approximate human visual response
- Programmable interrupt capability with upper and lower thresholds
- Up to 16-bit resolution
- High sensitivity operation behind dark glass
- 0.01lux low lumen performance
a Proximity detection
- Fully calibrated to 100 mm detection
- Integrated infrared LED and synchronous LED driver
- Eliminates factory calibration of the proximity sensor
a Programmable wait timer
- Wait state power consumption - 90A typical
- Programmable range from 2.7 ms to more than 8 seconds
a I2C interface compatible
- Up to 400kHz (I2C fast mode)
- Dedicated interrupt pin
a Sleep Mode Power - 2.2A typical
a Small package 3.94 (L) x 2.36 (W) x 1.35 (H) mm

Applications:

a Adjustable light mobile phone backlight
a Notebook / display security
a ASutomatically enabled hands-free mode
a Digital camera eye sensor

Package included:

3 x Gesture Detection Attitude Sensor







, ,
