Overview: The module has a wide operating voltage range (DC5V-12V), high transmission power, low power consumption, and can be directly applied with a coding IC.
The data code and address code can be directly jumped, which is convenient and widely used in simple data wireless transmission, anti-theft alarm and other occasions.

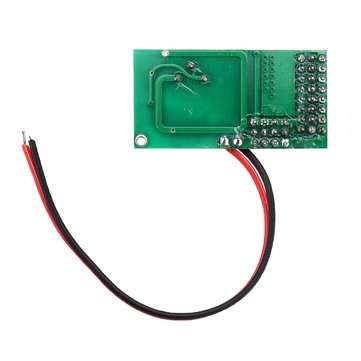

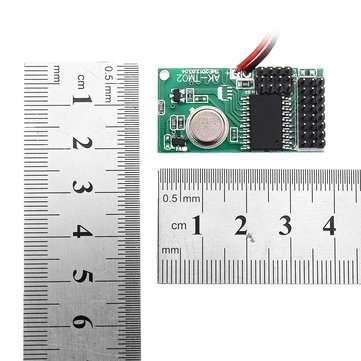

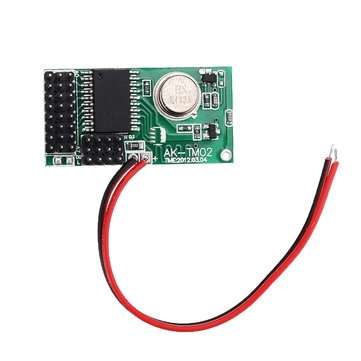

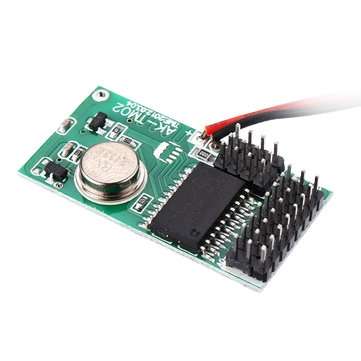

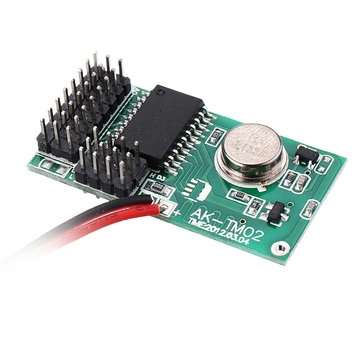

Instructions for use: The module has led two wires, which are connected to the positive and negative poles of the power supply, and the voltage is DC5-12V. Each launch can be realized directly by controlling the on/off of the power supply, and the time is not more than 5 seconds. A0~A7 is the 8-bit address code setting area, and the left side D0~D3 is the four-digit data code setting area. The cap sets the coding and data bits, and the antenna is connected (the multi-strand copper wire is about 23CM). Technical parameter: Working voltage: 5-12V Emission current: 10mA Transmission frequency: 433MHZ Shooting distance: 200 meters (empty, receiving sensitivity -110dB) Size: 38.2*19.5*8.7mm Coding chip: SC2262 (PT2262) Coding method: Jumper cap interpolation Oscillation resistance: 4.7M

Package includes:

3 xWireless Transmitter Module
