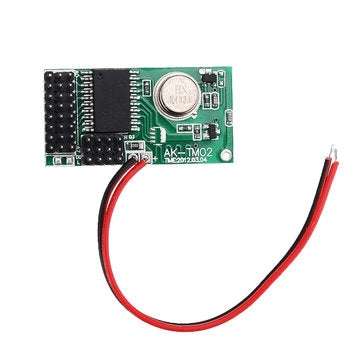

DC5-12V With Coded Wireless Transmitter Module 433MHz Remote Control

20 available / new

R400.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3505

93.45 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

643377292

Overview: The module has a wide operating voltage range (DC5V-12V), high transmission power, low power consumption, and can be directly applied with a coding IC.
The data code and address code can be directly jumped, which is convenient and widely used in simple data wireless transmission, anti-theft alarm and other occasions.

Instructions for use: The module has led two wires, which are connected to the positive and negative poles of the power supply, and the voltage is DC5-12V. Each launch can be realized directly by controlling the on/off of the power supply, and the time is not more than 5 seconds. A0~A7 is the 8-bit address code setting area, and the left side D0~D3 is the four-digit data code setting area. The cap sets the coding and data bits, and the antenna is connected (the multi-strand copper wire is about 23CM). Technical parameter: Working voltage: 5-12V Emission current: 10mA Transmission frequency: 433MHZ Shooting distance: 200 meters (empty, receiving sensitivity -110dB) Size: 38.2*19.5*8.7mm Coding chip: SC2262 (PT2262) Coding method: Jumper cap interpolation Oscillation resistance: 4.7M

Package includes:

1 xWireless Transmitter Module
