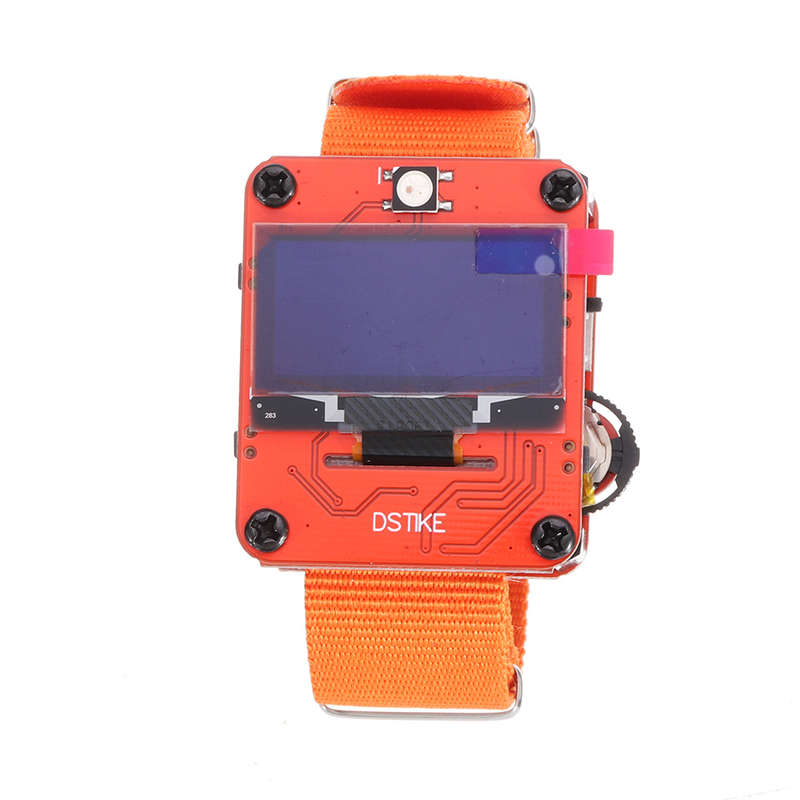

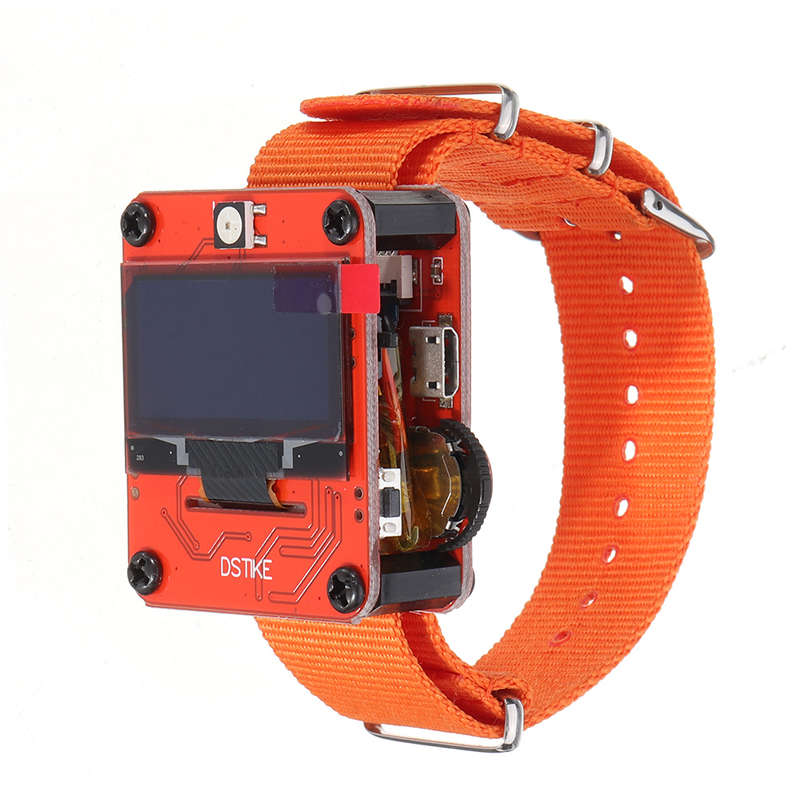

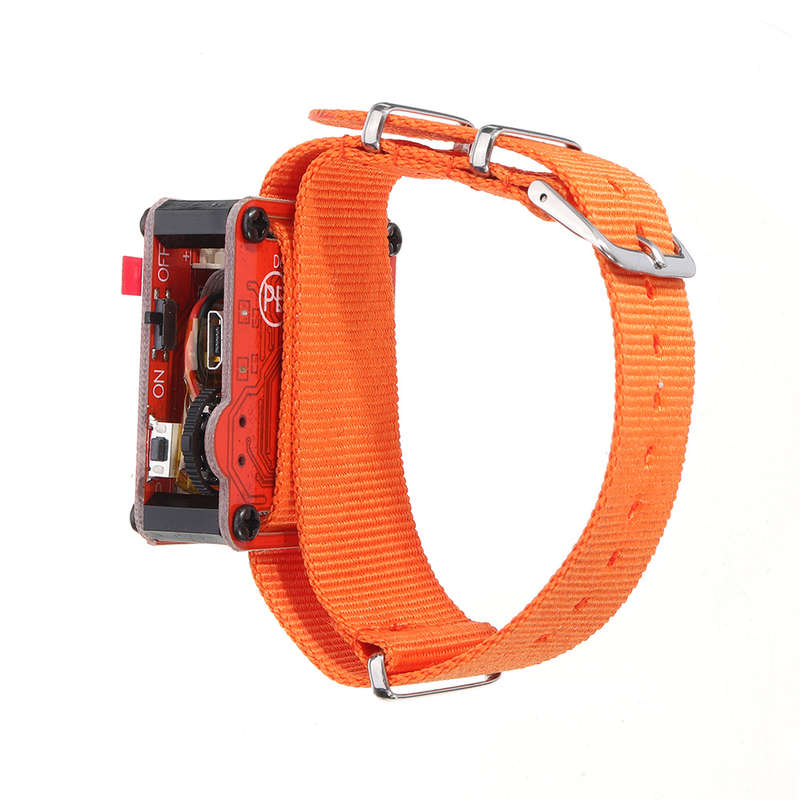

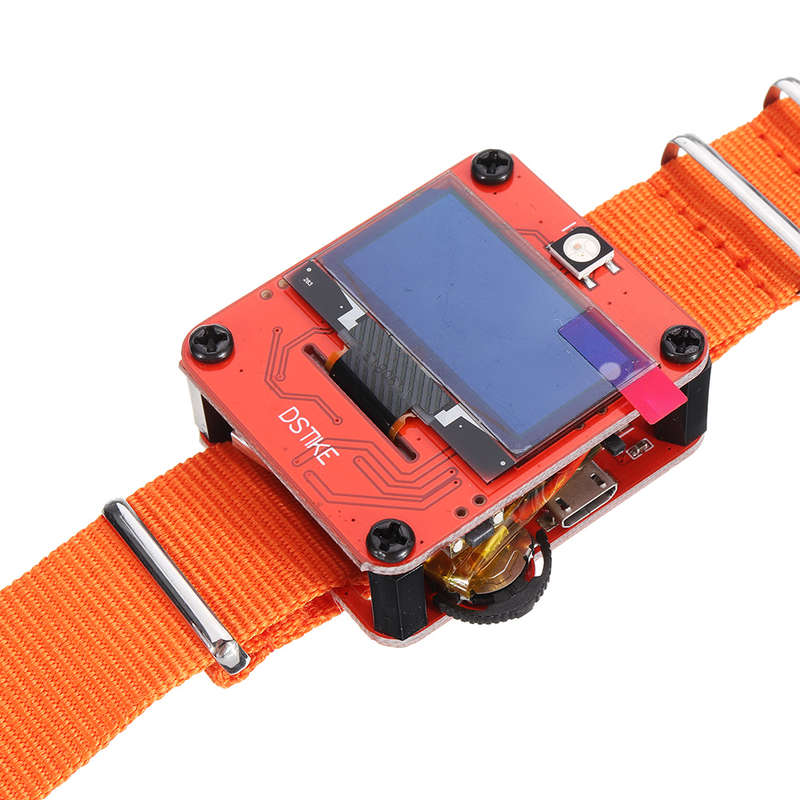

3pcs DSTIKE Orange Deauther Wristband /Deauther Watch NodeMCU ESP8266 Programmable WiFi Development

Warmly NOTE: The ORANGE color board will be converted to a RED color board, During the period of version replacement, random delivery. (board color does not affect the function)
What is it

1. Deauther Watch is still an ESP8266 development board, but you can wear it like a smartwatch.
2. This ESP8266 development board comes with a 600mAh battery, OLED display and a 3-way momentary slide switch.
3. It comes installed with the latest ESP8266 Deauther software. With this software, you can perform different attacks to test WiFi networks.

Please note that the ESP8266 does only support 2.4GHz. For more details on the software, visit

You can also use it to develop your own software. It is simple to use, just like any other ESP8266 development board.

GPIOs and hardware info

Display: SH1106 1.3 OLED
Display SDA: GPIO 5 (D1)
Display SCL/SCK: GPIO 4 (D2)
WS2812b LED: GPIO 15 (D8)
Button Up: GPIO 12
Button Down: GPIO 13
Button Select: GPIO 14
High Light LED: GPIO 16
Side Button: GPIO0,GPIO2,RST

Why did you make it

I designed this development board especially for Spacehuhn`s great project:

What makes it special

Only 80mA power usage
Up to around 7 hours work time
200 mA charging current
Indicate charging LED (Red means charging, off means full)
Included 8dB antenna and 2dB antenna
Power Switch (Strongly recommend turn it off when charging)
Protection: short, overcharging, over discharging, temperature

Usage
You can use it with the

You can also connect to pwned with the password deauther and use the

If you lost the password you can it.

Disclaimer

Use it only for testing and educational purposes against your own devices! I don`t take responsibility for what you do with it.

Please check the legal regulations for your country to make sure you don`t violate any laws.

Specs and Docs

CP2102 Driver .




Package Included:

3 x DSTIKE Orange Deauther Wristband /Deauther Watch ESP8266 Development Board
