3pcs Low Voltage High Performance Transmitting Module 315MHz TX8 DC1.8V-3.6V ASK TTL Super Heterodyn

20 available / new

R311.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3478

93.48 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

641108815

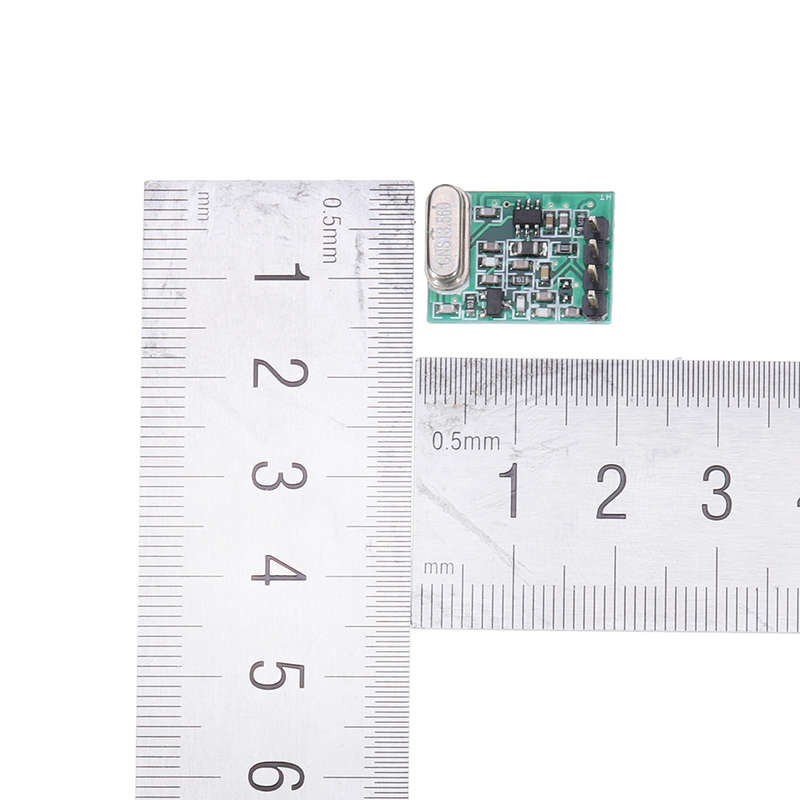

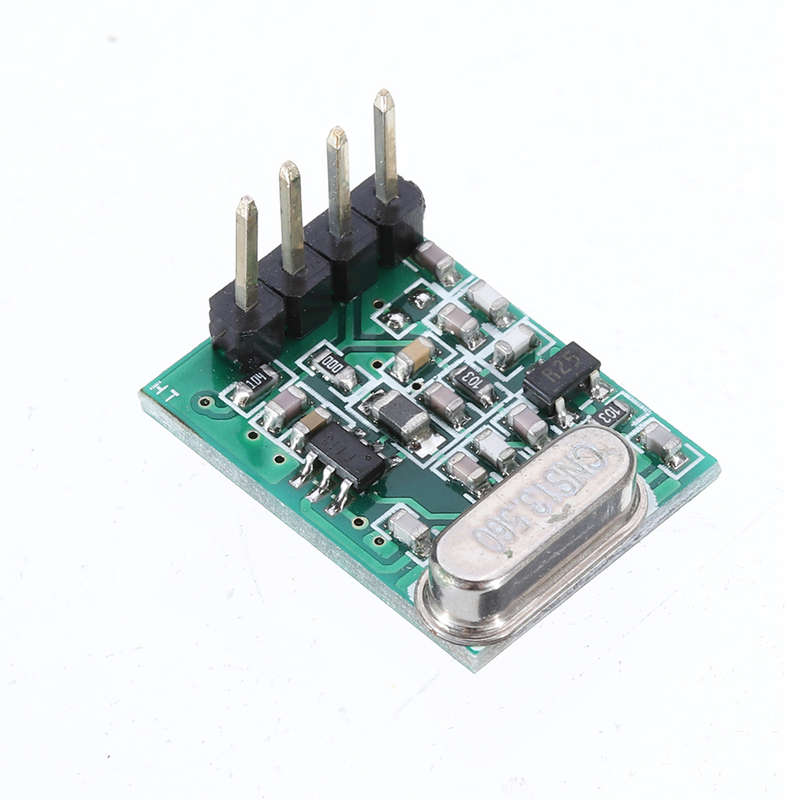

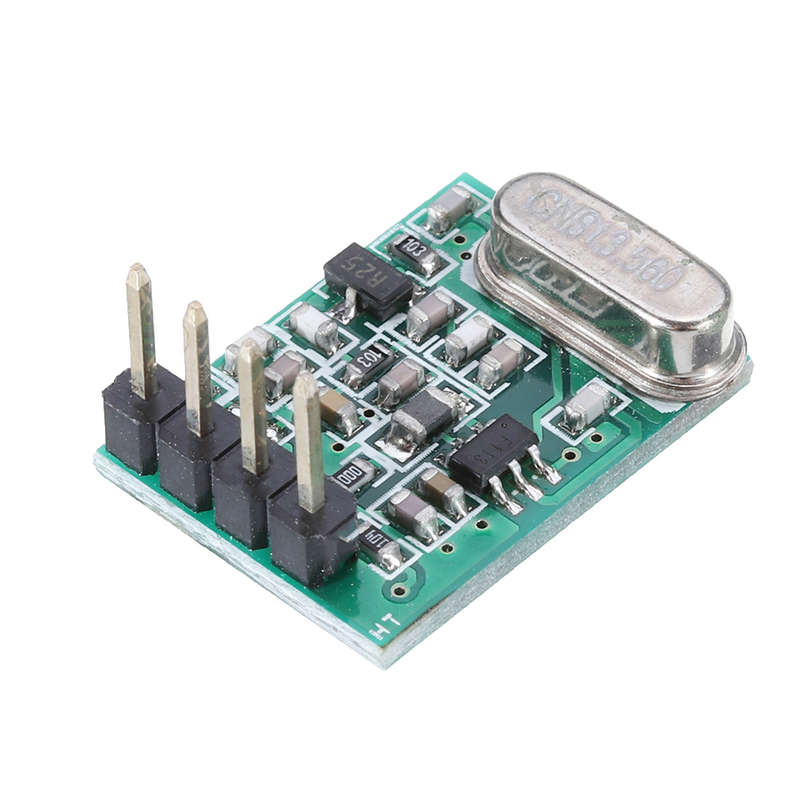

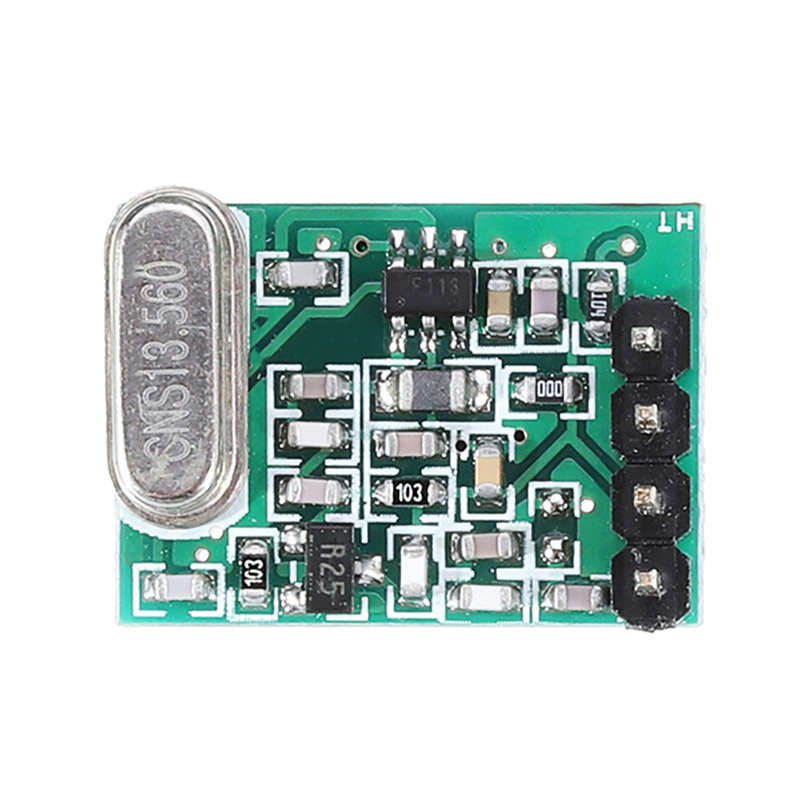

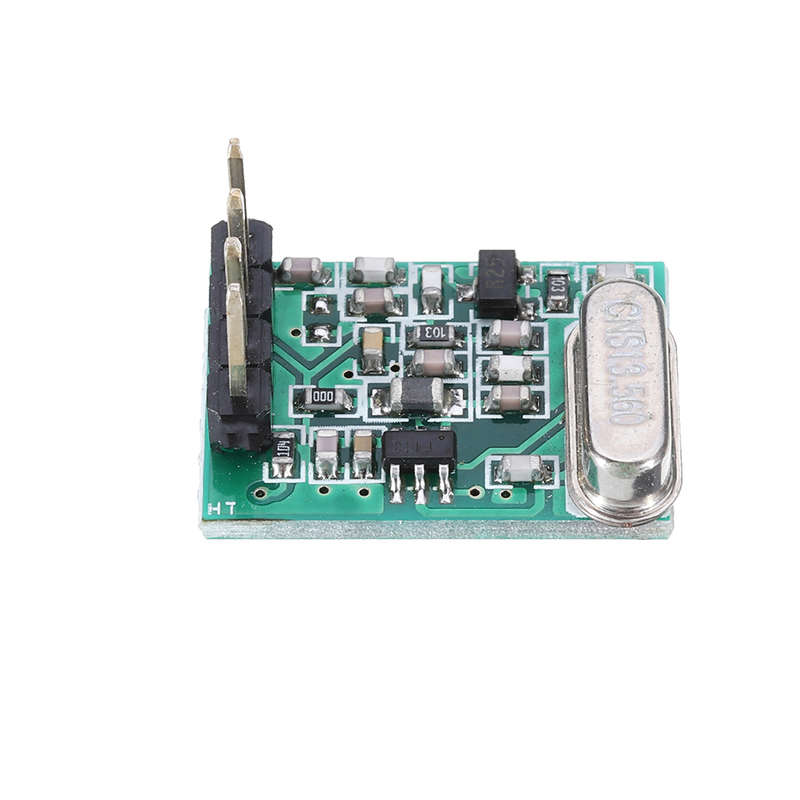

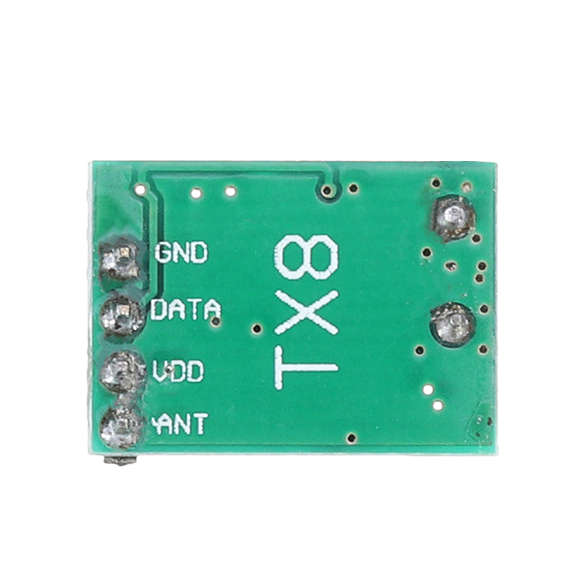

Characteristic: (1) The transmission power is large, and the transmission power is greater than 40mW; (2) Wide operating voltage: 1.8V-3.6V;Rated current: 8 (mA) (3) Operating frequency: 315 MHz (4) Using PLL frequency stabilization (+-50KHZ), the working frequency is stable; (5) With the RXB8 receiving module, the distance can reach 500 meters; (6) The static power consumption is low, the current consumption during transmission is 20 mA, and there is basically no current consumption when there is no data transmission; (7) Working temperature: -40 ﾣ C ~ +80 ﾣ C; (8) Dimensions: 11x16x5.5mm; (9) Frequency stability: &pm;50 KHZ; (10) Modulation rate: 3 KB/S; (11) Input signal: TTL level. Application range: 1) Car remote door switch (RKE); 2) Remote control door opener and gate; 3) Wireless security alarm; 4) remote control curtain machine; 5) Wireless industrial controller; 6) Wireless data transmission.

Package includes:

3 xTransmitting Module
