3pcs OPT101 Illumination Sensor Light Intensity Sensor Module Monolithic Photodiode

20 available / new

R391.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3553

93.34 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

643364898

Feature: The OPT101 is an illuminance photosensor that integrates a photodiode and a specially optimized op-amp. The transparent package allows the photodiode to have a larger sensing surface with higher sensitivity and a wide spectral response range (infrared to visible light 300nm-1000nm).

Parameter: Working voltage: 2.7 ~ 36V Working temperature: 0ﾣC~70ﾣC Photodiode light irradiation area: 5.2mm2 Photocurrent: 0.45A/W ( = 650nm) Output voltage ratio: 0.45V/uW Analog voltage output range: Vs-1.15 Bandwidth: 14KHz Static power consumption: 120uA

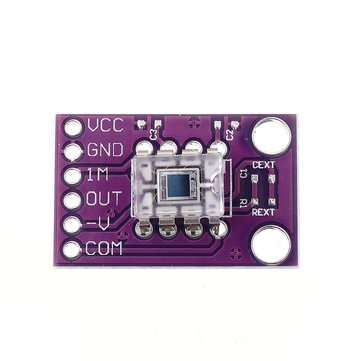

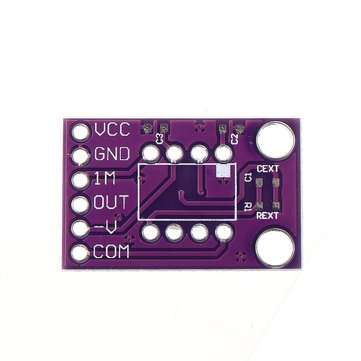

PIN Description: VCC: power supply positive pin -V: negative supply -IN: the inverting input of the internal op amp and the negative of the internal photodiode, Do not connect or apply feedback that is abandoned in the operation 1M: Internal 1M feedback resistor input OUT: Amplifier output COM: Internal photodiode positive, generally connected to GND Note: The module does not solder the CEXT external capacitor and the REXT external resistor, leaving the pad for easy extension.

Package includes:

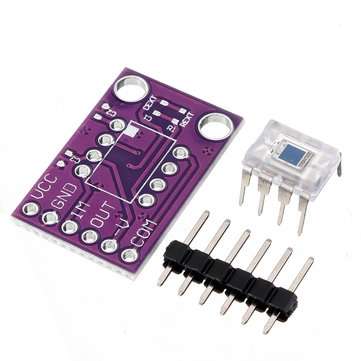

3 xOPT101 Illumination Sensor
