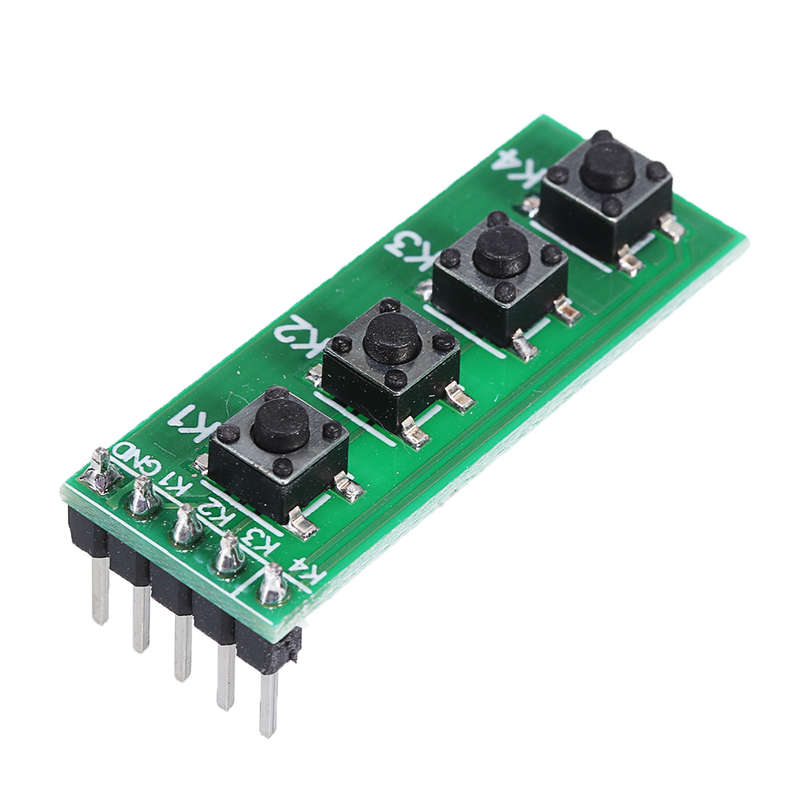

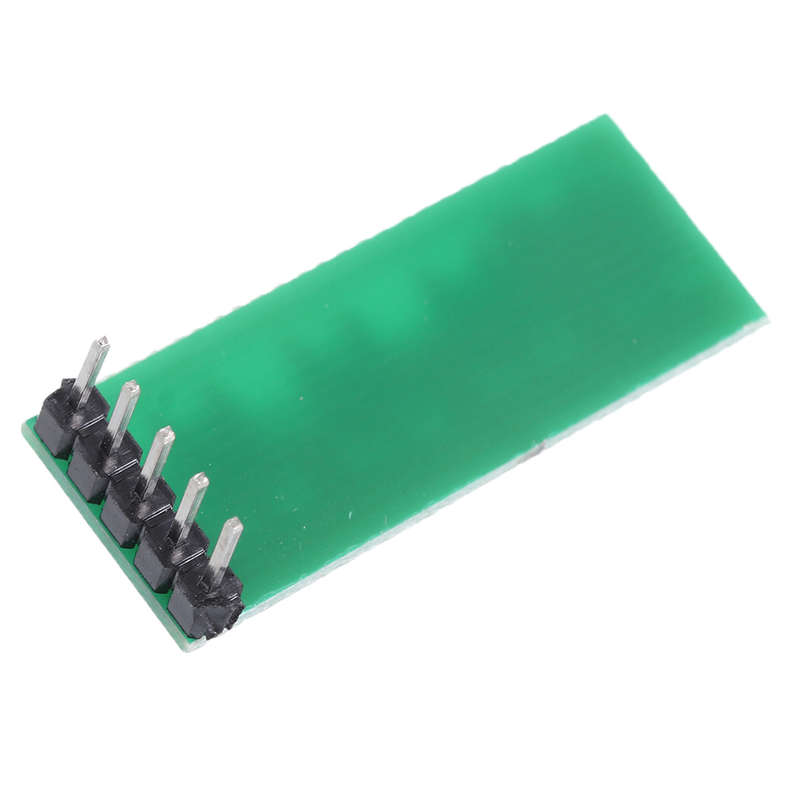

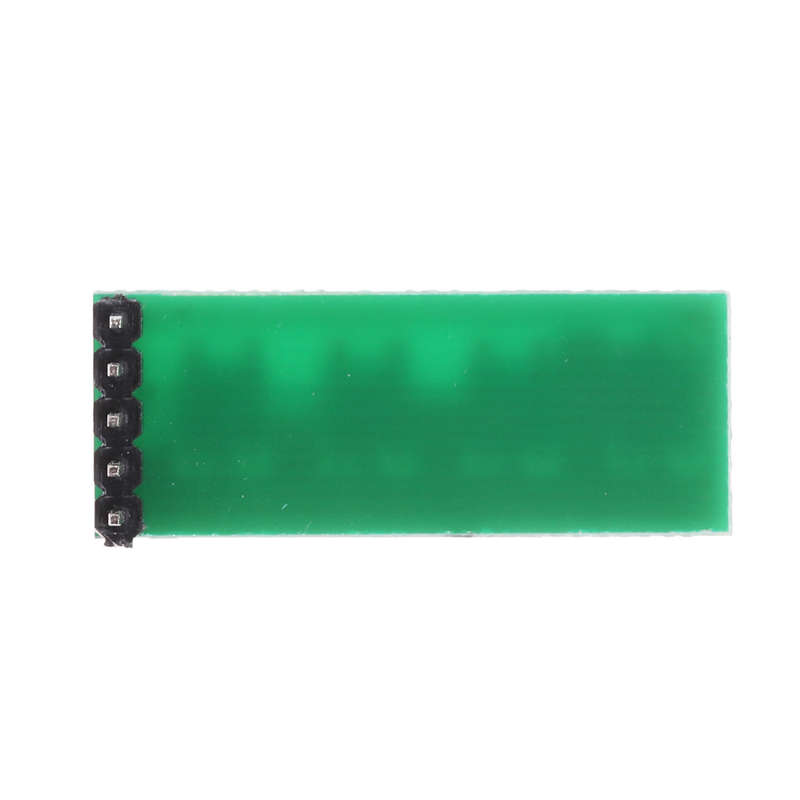

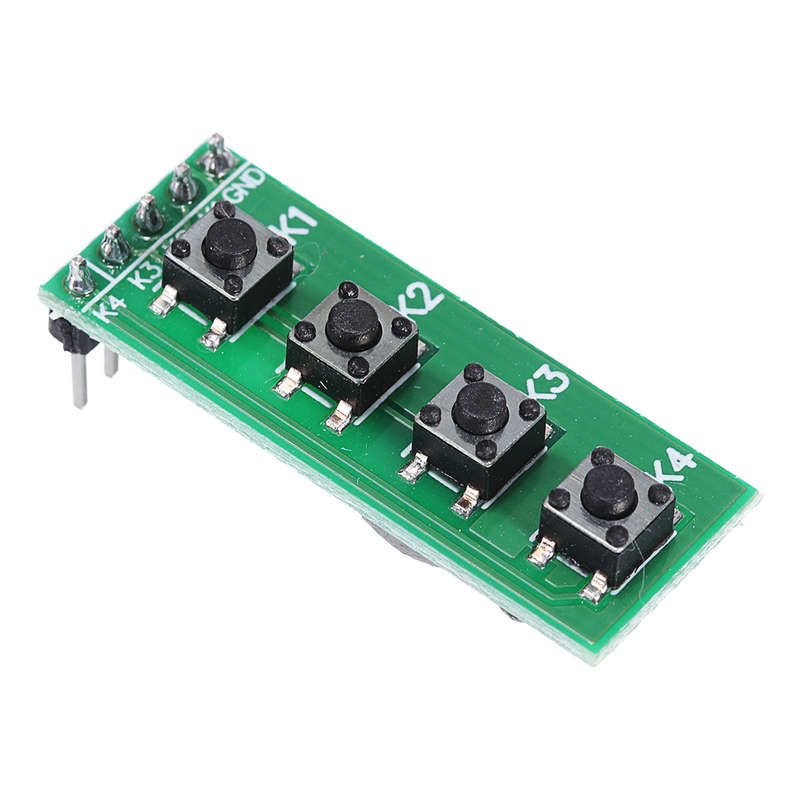

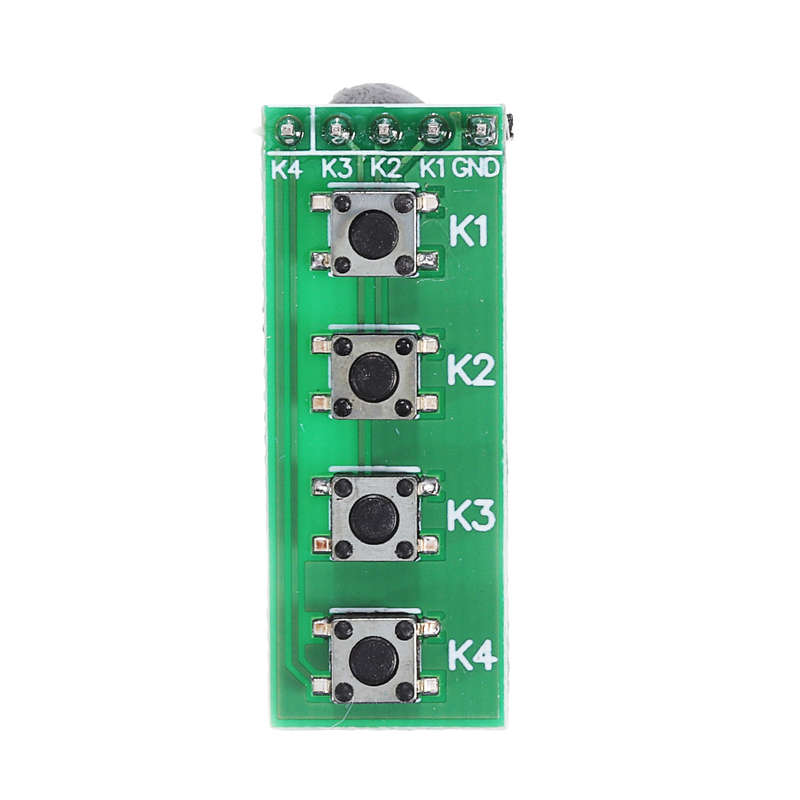

Description: 1. 4-button Common Cathode key module(When pressed output low level). 2. GND K1 K2 K3 K4 4 PIN OUT 2.54mm 3. Working voltage: DC 0-48V 4. Size: 12.7 x 33mm 5. It can be inserted directly into Arduiuouno3mega2560 due,for linking up to your Arduiuouno3Mini Nano Mega2560 Breadboard for raspberry pi banana pi etc,or others MCU PLD CPU ( AVR STM32 ARM PIC C51 NRF24LE1 CC2530 MSP430 STM8 FPGA CPLD etc.)
Circuit schematics:
Arduiuouno3/mega2560 Code //******************************************************// /* Arduiuo_4key_uart
This example code is in the public domain. */
// Define key pin int K1 = 13; int K2 = 12; int K3 = 11; int K4 = 10;
// variables will change: int buttonState = 0; // variable for reading the pushbutton
// the setup routine runs once when you press reset: void setup() { // initialize the keys pin as an input.
pinMode(K1, INPUT); pinMode(K2, INPUT); pinMode(K3, INPUT); pinMode(K4, INPUT);
//Activate key pin internal pull-up resistors digitalWrite(K1, HIGH); digitalWrite(K2, HIGH); digitalWrite(K3, HIGH); digitalWrite(K4, HIGH);
// initialize serial communications at 9600 bps: Serial.begin(9600); }
// the loop routine runs over and over again forever: void loop() {
buttonState = digitalRead(K1); if(!buttonState)Serial.print(k1 n ); do { buttonState = digitalRead(K1); } while(!buttonState);//Wait button release
buttonState = digitalRead(K2); if(!buttonState)Serial.print(k2 n ); do { buttonState = digitalRead(K2); } while(!buttonState);//Wait button release
buttonState = digitalRead(K3); if(!buttonState)Serial.print(k3 n ); do { buttonState = digitalRead(K3); } while(!buttonState);//Wait button release
buttonState = digitalRead(K4); if(!buttonState)Serial.print(k4 n ); do { buttonState = digitalRead(K4); } while(!buttonState);//Wait button release
delay(100); } //******************************************************//
Package Included:
3 x4 Key MCU Keyboard Matrix Button Board
