3pcs TCA9548A 1-to-8 I2C 8-way 8CH Channel Multi-channel Expansion Board IIC Module Development Boar

Feature:

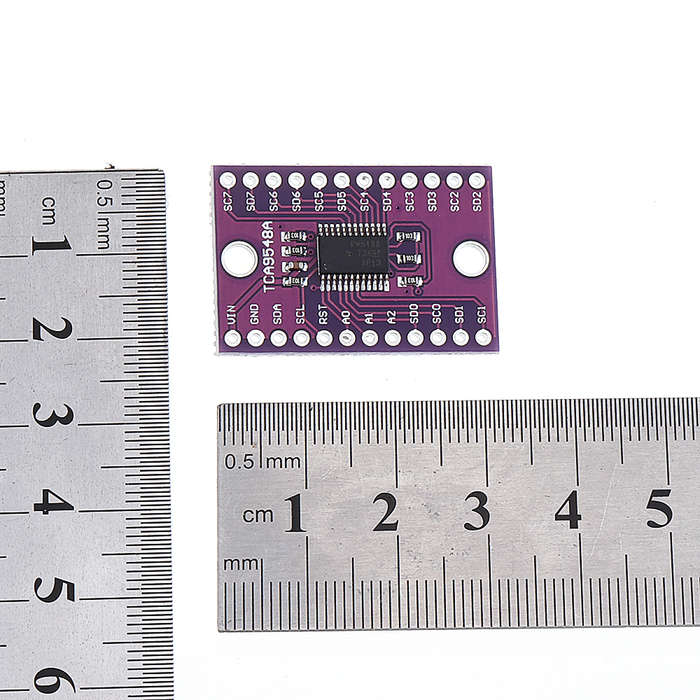

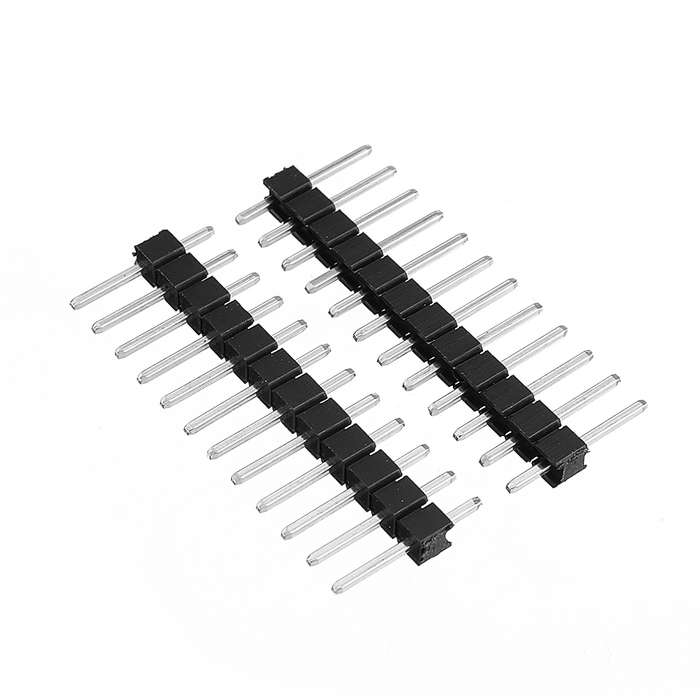

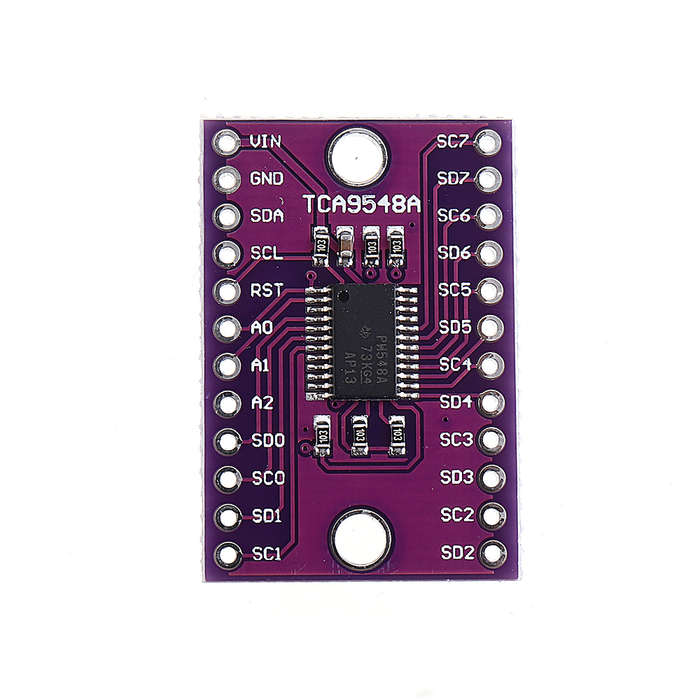

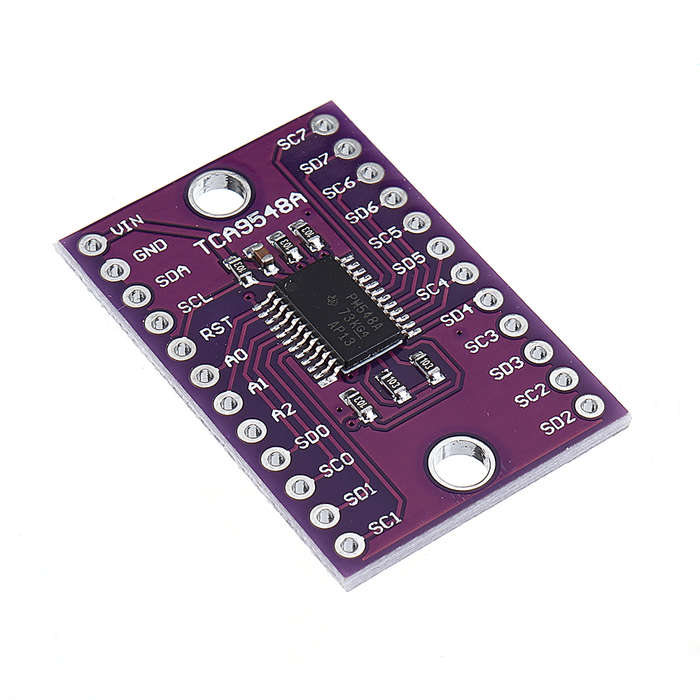

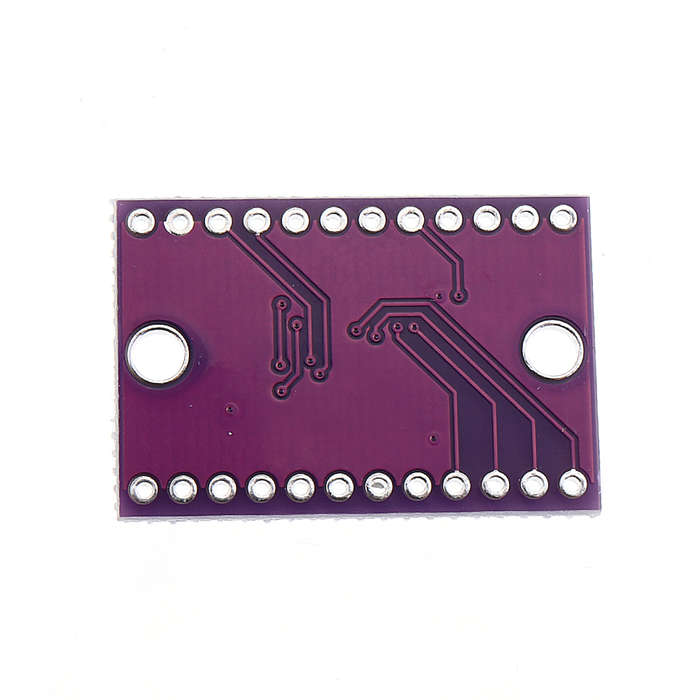

You just found the perfect I2C sensor, and you want to wire up two or three or more of them to your when you realize Uh oh, this chip has a fixed I2C address, and from what I know about I2C, you cannot have two devices with the same address on the same SDA/SCL pins! Are you out of luck You would be, if you didn't have this ultra-cool CJMCU-9548 1-to-8 I2C multiplexer! Finally, a way to get up to 8 same-address I2C devices hooked up to one microcontroller - this multiplexer acts as a gatekeeper, shuttling the com mands to the selected set of I2C pins with your com mand. Using it is fairly straight-forward: the multiplexer itself is on I2C address 0x70 (but can be adjusted from 0x70 to 0x77) and you simply write a single byte with the desired multiplexed output number to that port, and bam - any future I2C packets will get sent to that port. you could have 8 of these multiplexers on each of 0x70-0x77 addresses in order to control 64 of the same-I2C-addressed-part. We put this nice chip on a break out for you so you can use it on a breadboard with capacitors, and pullups and pulldowns to make usage a snap. Some header is required and once soldered in you can plug it into a solderless-breadboard. The chip itself is 3V and 5V compliant so you can use it with any logic level. Package includes:

3 xExpansion Board
