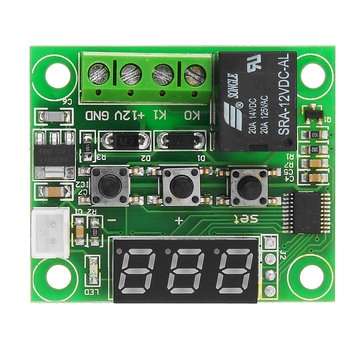

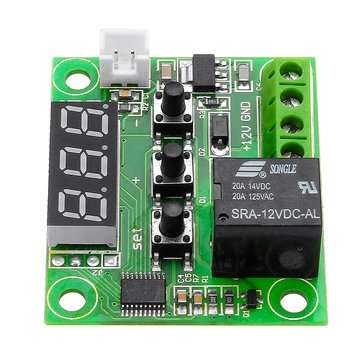

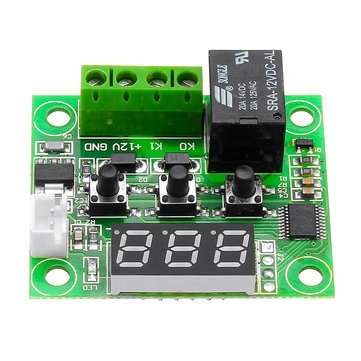

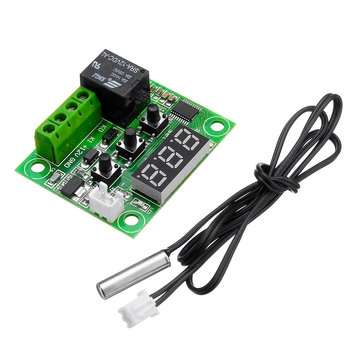

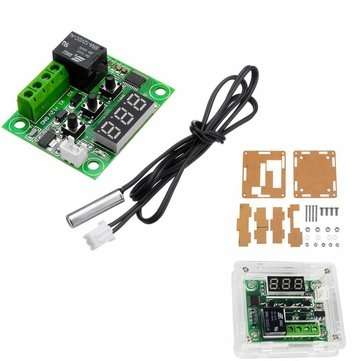

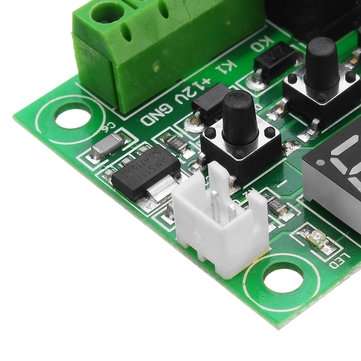

3pcs XH-W1209 DC 12V Thermostat Temperature Control Switch Thermometer Controller With Digital LED D

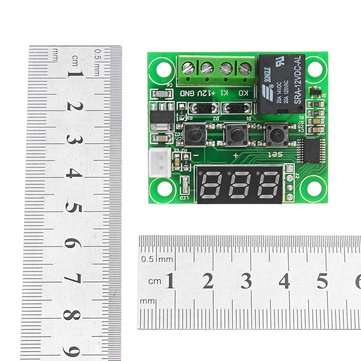

Features: 1.100% complete machine chip, wave soldering, stable performance, good consistency 2. Embedded central processor chip (MCU), more intelligent, lower power consumption 3. Power-off settings automatically memory (MCU built-in EEPROM storage unit) 4. The control accuracy of 0.1 degrees Celsius 5. Hysteresis 0.1 from the set, you can control the decimal (0.1-15.0) Technical Parameters: Temperature control range: -50 ~ 110 ﾣ Resolution: -9.9 ~ 99.9 when the other temperature of 0.1 ﾣ 1 ﾣ Temperature measurement accuracy: 0.1 ﾣ Control accuracy: 0.1 ﾣ Hysteresis accuracy: 0.1 ﾣ Refresh rate: 0.5 S Input power: DC 5V, DC 12V, DC 24V Measurement input: NTC (10K 0.5%) Waterproof sensor Output: 1 relay output, capacity = 20A 125VAC, 20A 14VDC Environmental requirements: -10 ~ 60 ﾣ Humidity 20% -85% Specifications Size: 48.5 * 40mm Total power consumption: Quiescent current: a 10MA Pull-in current: a 65MA Usage: - Press the + button to set the desired temperature (press and hold + - to move up and down quickly) Set the temperature of the display. - Press SET to confirm the completion of return, then the controller automatically by setting the relay off! The Thermostat output for the 20A relay to meet a variety of high-power load, connect the control circuit, you can supply power to the thermostat, this display shows the ambient temperature - Indicator: Flashing indicates the cooling or heating start delay. If the indicator is on, it indicates that the relay is closed - Digital control: display LL sensor is open, please follow the instructions to connect the sensor; display HH is outside the measuring range will force the relay to disconnect the thermostat; display high temperature alarm. Package Included: 3 x XH-W1209 Temperature Controller
