4 Channel Wireless RF Remote Control Transmitter Receiver Module

20 available / new

R395.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3462

93.46 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

641109461

Specification:

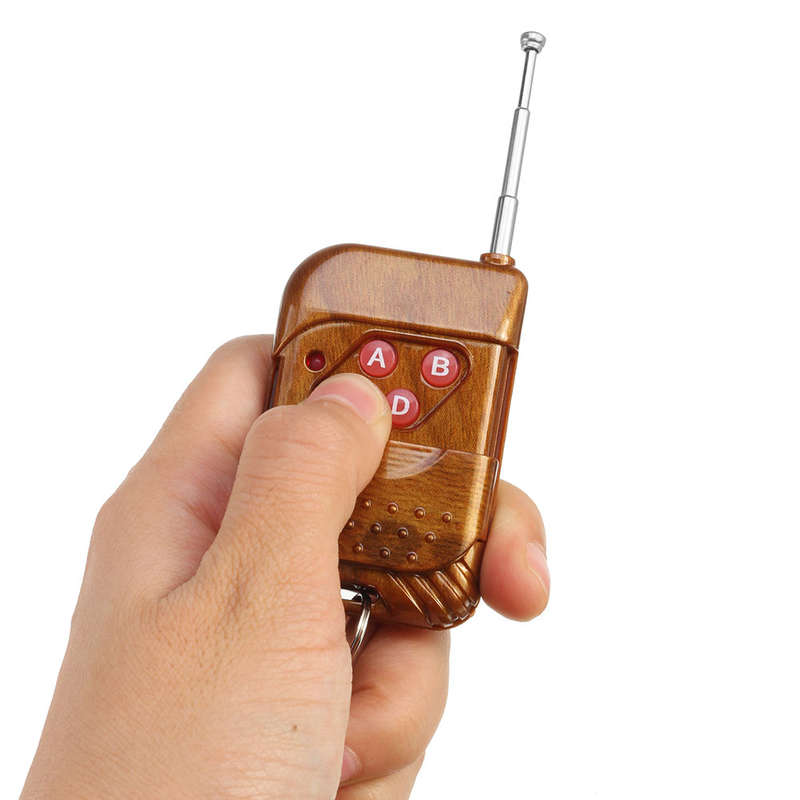

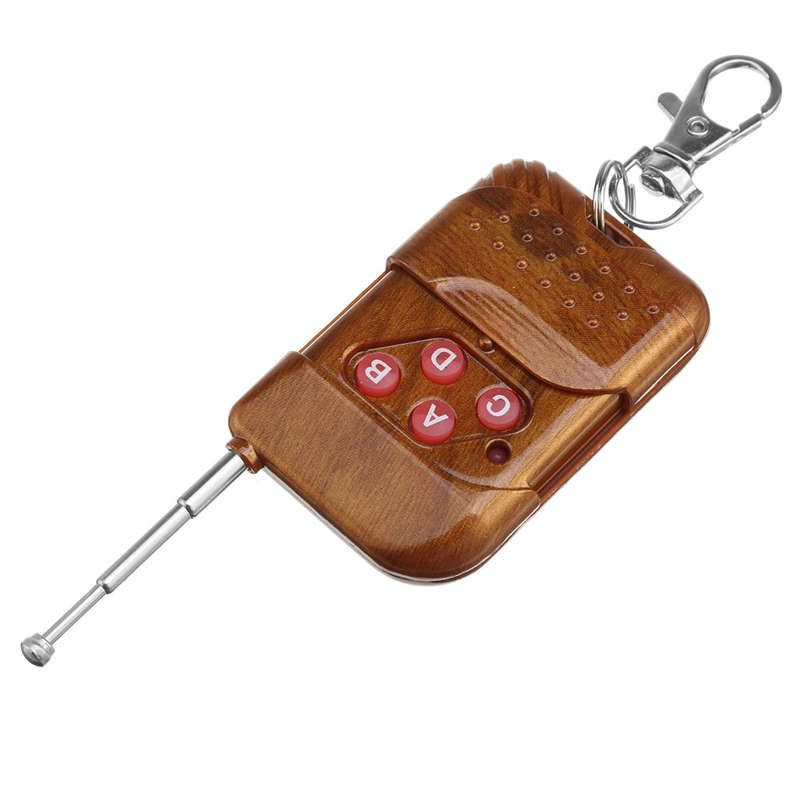

Remote control:

Operating voltage: DC 12V(27A / 12V battery x 1)
Operating current: 10mA at 12V
Radiated power: 10mW at 12V
Transmission distance: 50m - 100m (open field, the receiver sensitivity of -100dbm)
Transmitting frequency: 315MHZ
Modulation mode: ASK (Amplitude Modulation)
Encoder types: fixed code

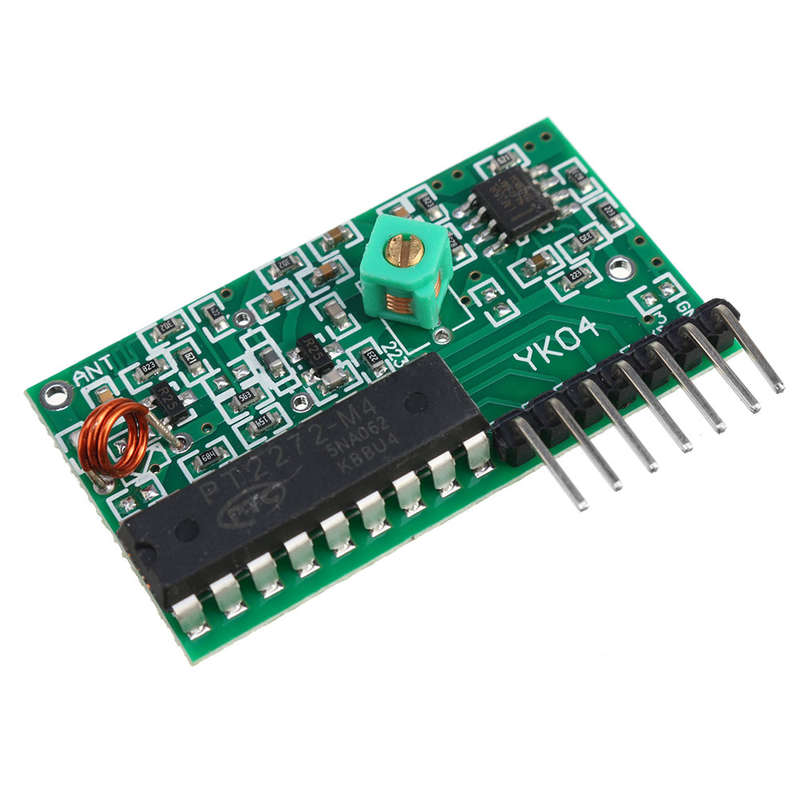

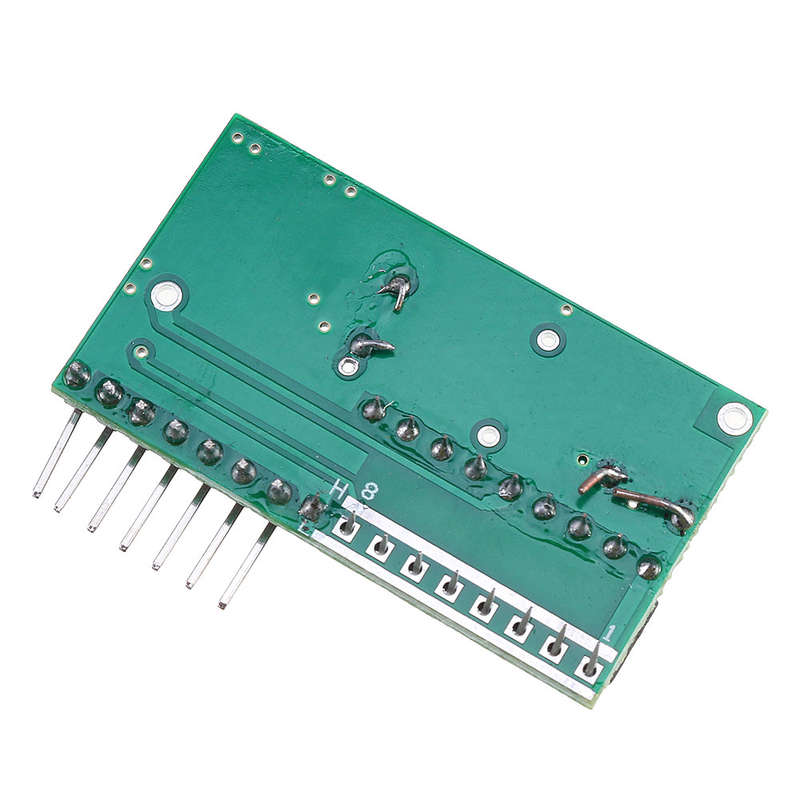

Decoding receiver board:

Operating voltage: DC 5V
Receiver sensitivity is -98dB

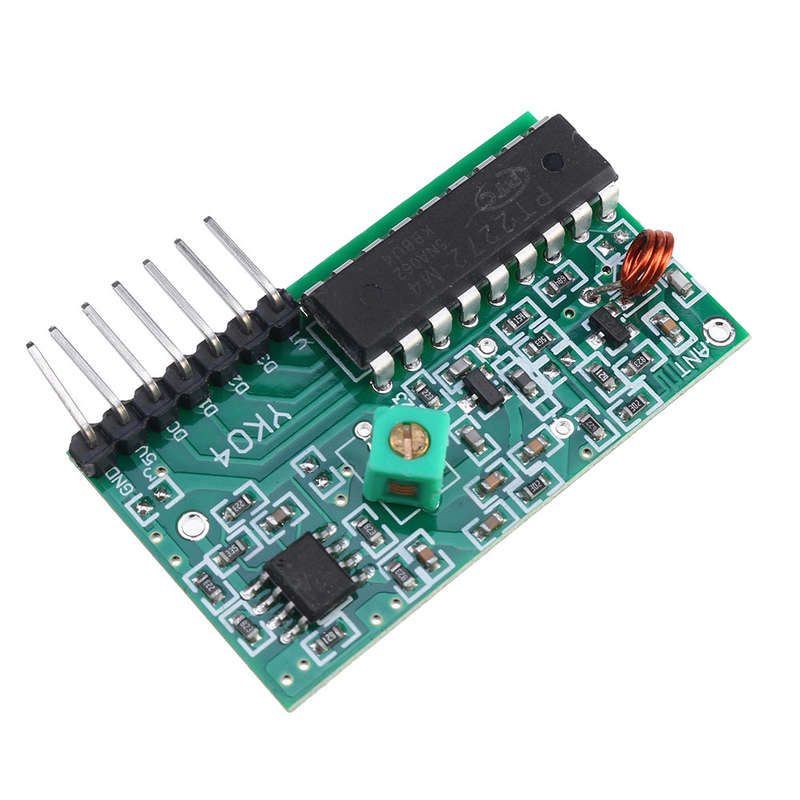

Leg 7 bits: VT, D3, D2, D1, D0, +5V and GND
VT is a valid signal high output pin upon receiving a valid signal, the pin output high, may also drive the relay

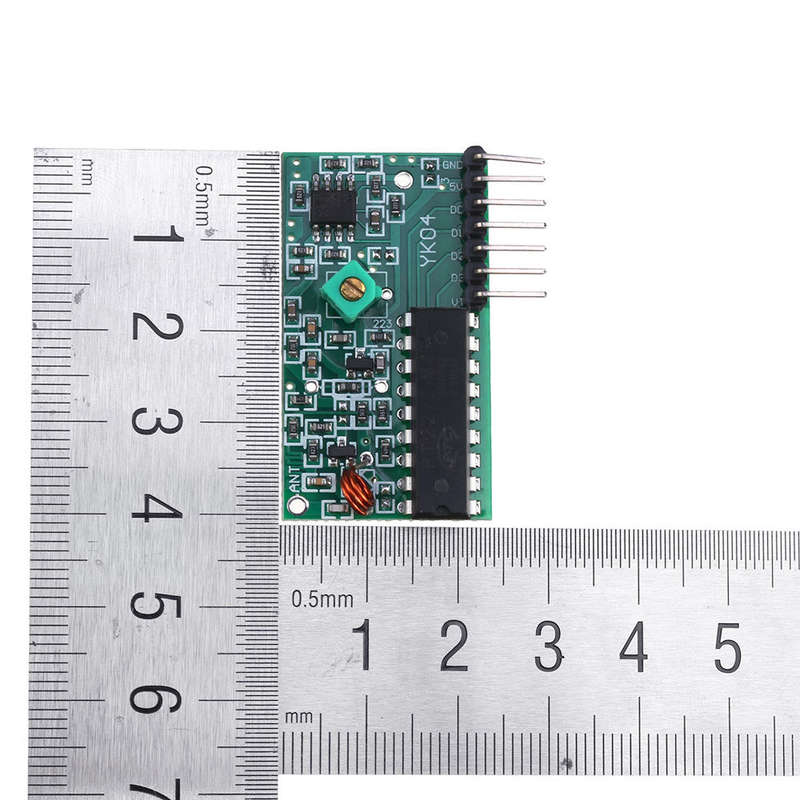

Size: 6.6 x 22 x 41mm

Note:

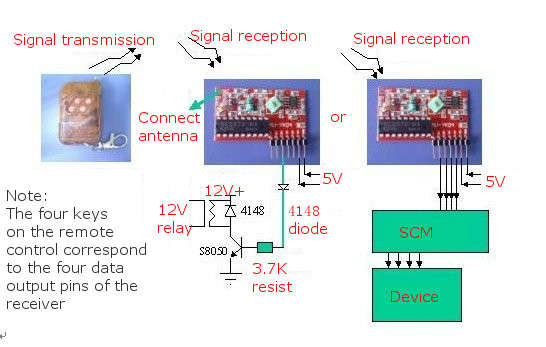

There are four buttons on the remote control, and respectively correspond to the four data bits to the receiving board output pin D0, D1, D2, and D3.
Press the buttons transmit signals, the corresponding data bit is output high.

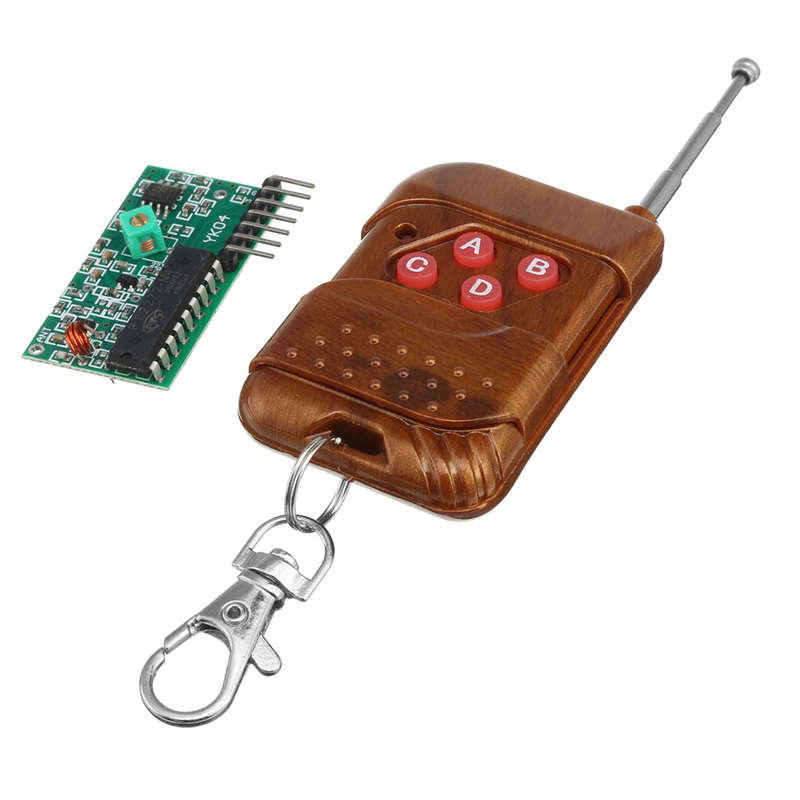

Package included:

1 x Remote control
1 x Decoding receiver board
