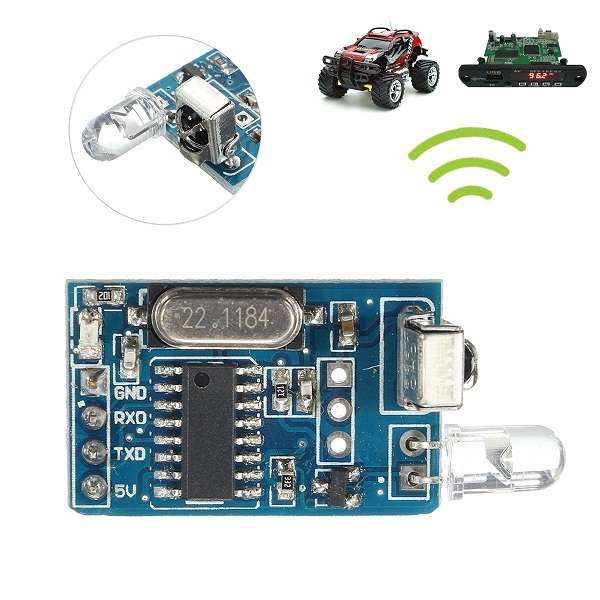

DIY 5V Wireless IR Infrared Remote Decoder Encoding Transmitter Receiver Module DIY 5V Wireless IR Infrared Remote Decoder Encoding Transmitter Receiver Module
DIY 5V Wireless IR Infrared Remote Decoder Encoding Transmitter Receiver Module DIY 5V Wireless IR Infrared Remote Decoder Encoding Transmitter Receiver Module

DIY 5V Wireless IR Infrared Remote Decoder Encoding Transmitter Receiver Module

20 available / new
R400.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
641121818
Features:

1. With the infrared emission function
2. With infrared encoding.

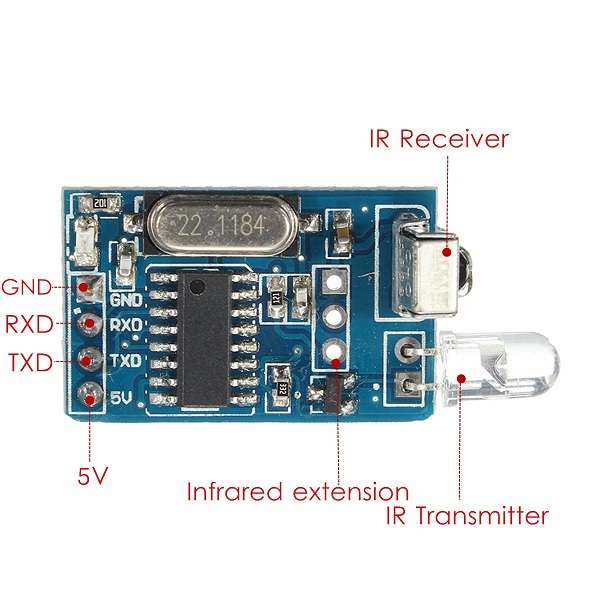

3. With the infrared emission head expansion interface.
4. With serial communication functions, communication level is TTL.
5. It can control 99% of the infrared format devices,including televisions, fans and other electrical and electronic equipment.
6. Support for NEC encoding chips :( typical encoding chips such as uPD6121, uPD6122, TC9012 and numerous
7. Compatible chip model, such as the PT2221, PT2222, SC6121, SC6122, SC9012, etc.)
8. Can be used as an infrared wireless data communication, data transmission, control and other functions IR
9.Applications:
Smart home, student electronic design, infrared turn wireless, intelligent industrial equipment, MP3 controller, IR remote control, IR
decoding equipment, electronic building blocks kit, electronic equipment control, infrared wireless switch design, coding equipment
intelligent infrared remote control car.

Specification:

1. Size:27''17mm
2. Supply voltage: 5V
3. Communication: Serial communication (TTL level)
4. Firing distance: 6-10 meters (OUR actual environmental testing eight meters Stability Control)

FAQs:

1. Can it controlled (or decoded) TV, air conditioning and other appliances
A: This module is NEC codec module, which supports only NEC encoding equipment, appliances for the restaurant can not determine which NEC
coding, design intent is not used to control appliances. Mainly for professional customers DIY electronic applications.

2. Can it output high-low
A: The serial communication module, no extra IO port, requires a combination of micro controller or other serial devices to send and receive data,
control functions of a wireless infrared.

3. Can Infrared barrier function use it Can it transmit a series of data
A: This module is not available for infrared barrier function, infrared transmitter and receiver are mutually independent from each other can not work
simultaneously; this module can not send a string of data at once, you can only send 5 bytes, but more can be continuously secondary
transmission until the data can also be finished.

Package included:

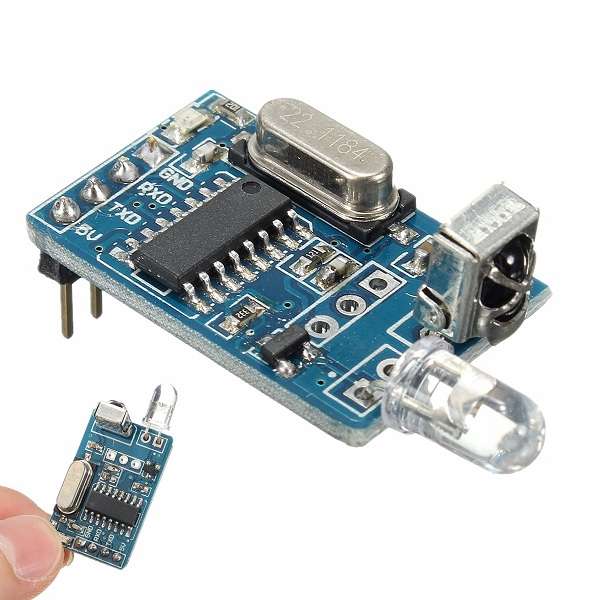

1 x IR Infrared Decoder Module







, ,
