4 PORT USB 3.0 EXPANSION CARD

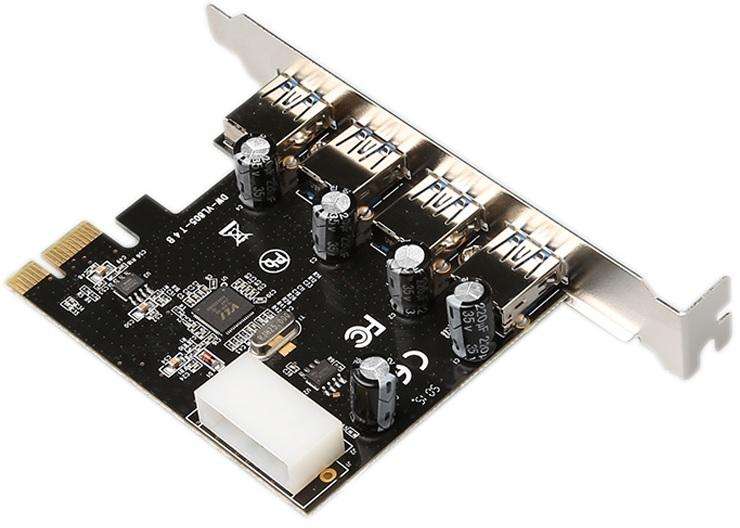

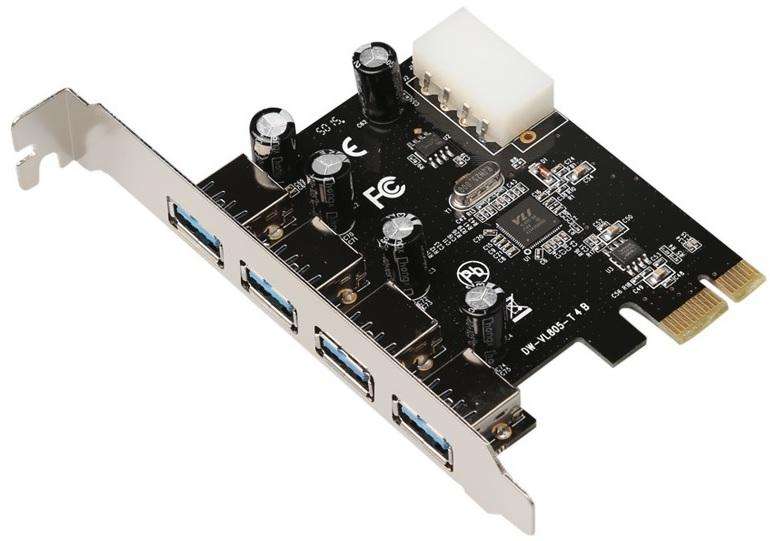

4 PORT USB 3.0 EXPANSION CARD - TXB048

Model number: TXB048

Chipset: VIA/VL805

Port number: 4 x USB3.0

Interface: PCI Express 1x slot

Dimension: 65.4 x 80 x 16.6mm

Support OS

Windows 10(32/64), 8 / 8.1 (32/64), 7 (32/64), Vista(32/64), XP(32/64), 2000

Windows Server 2012, 2008 R2, 2003(32/64)

Mac OS 10.x (Intel based, tested up to 10.9)

Linux 2.4.x and later (Tested up to 3.5)

Environment

Operating Temperature: 0?-50 ?

Relative Humidity: 10%-90%(non-condensing)

Storage Temperature: -0?-80?

Relative Humidity: 5%-90%(non-condensing)

Features

USB3.0 Specification compliant, backward compatible with USB2.0 & USB1.1

2 external USB3.0 ports, 10x faster than USB2.0

Supports PCI-Express Rev. 1.0a

USB3.0 data transfer rate up to 5Gbps

Plug and play installation

External power supply

Key Features

Compliant to Universal Serial Bus 3.0 Specification Revision 1.0

Compliant to Universal Serial Bus 2.0 Specification

Compliant to eXtensible Host Controller Interface (xHCI) Specification Revision 1.0

Support Legacy USB Function

Compliant with PCI Express Base Specification 2.0

In-house USB PHY employs advanced CMOS process to reduce power consumption

Support Battery Charging Specification

Firmware upgrade options include integrated firmware in system BIOS

Software

Initial Driver Support for Windows 8,7, Vista, and XP

USB Attached SCSI Protocol (UASP) - Support various

Support various Linux kernels
