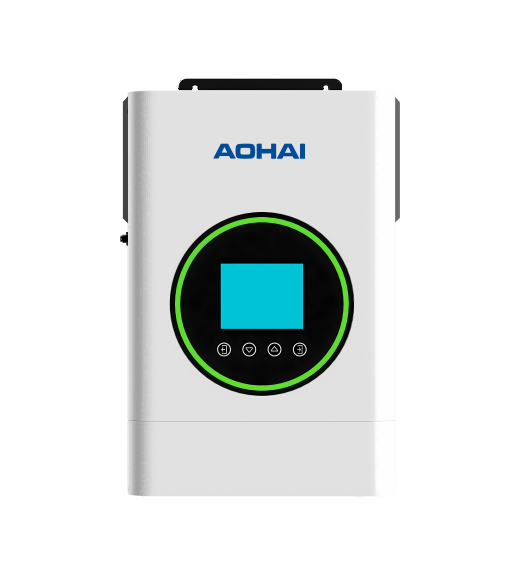

4000W 4KVA 24V Hybrid Inverter-AOHAI

AOHAI 4000W 4KVA 24V Hybrid Inverter Key Features

1. High Power Output 4000W / 4KVA

• Provides stable and sufficient power for running home appliances, office equipment, and small industrial tools.

• Ideal for households and small businesses requiring consistent backup.

2. 24V DC Input

• Compatible with 24V battery banks, making it suitable for medium-sized solar systems.

• Improves energy storage capacity for longer power supply duration.

3. Pure Sine Wave Output

• Delivers clean and stable electricity, safe for sensitive electronics like TVs, laptops, and medical equipment.

• Prevents noise and damage to appliances.

4. Built-in MPPT Solar Charge Controller

• Maximizes solar energy harvesting with high-efficiency MPPT (Maximum Power Point Tracking) technology.

• Allows direct connection of solar panels, ensuring optimal charge performance.

5. Hybrid Functionality

• Supports multiple power sources: solar, battery, and grid.

• Automatically switches between sources to ensure uninterrupted power supply.

6. Intelligent LCD Display

• User-friendly interface displays real-time system status: voltage, battery level, load, and charging data.

• Makes monitoring and troubleshooting easy.

7. Battery Priority and Charging Options

• Customize charging modes: solar first, utility first, or battery first.

• Efficient energy management based on your needs.

8. Overload, Overcharge & Short-Circuit Protection

• Built-in safety features protect the inverter and connected devices.

• Ensures safe operation and long service life.

9. Quiet and Efficient Operation

• Low noise levels make it suitable for indoor use.

• Built with a high-efficiency cooling system to prevent overheating.

Features:
Pure sine wave output
Smart LCD setting (Working modes, Charge Current, Charge Voltage, etc).
Built-in MPPT solar charge controller
Wide PV input voltage range
Generator Input
Combining solar system, AC utility, and battery power source to
supply continuous power
Overload, short circuit and Deep discharge protection
Cold start function
Support RS485,CAN monitoring function
Dual outputs for smart load management
Can communicate with lithium batteries (CAN port)

Inverter Mode:
Rated Power(Main+Second Load):4000VA/4000W
DC Input: 24VDC, 137A
AC Output: 230VAC, 50/60Hz, 15.7A
Output Power Factor: 1.0
AC Charger Mode:
AC Input: 230VAC, 50/60Hz, 17.7A,10
DC Output: 24VDC,60A

Lithium Battery Activation: YES

Lithium Battery Communication : CAN/RS485

Solar Charger Mode:

Max Solar Charger Current:120A
MPPT Voltage Range(Typ): 90-450VDC
Max Solar Voltage(VOC): 500VDC
Max PV Input Current: 18A
Max MPPT Power: 4400W
Max.Charge Current: 100A

What's in the box
1x Inverter
1x User Manual

1 Year Warranty

Warranties:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
