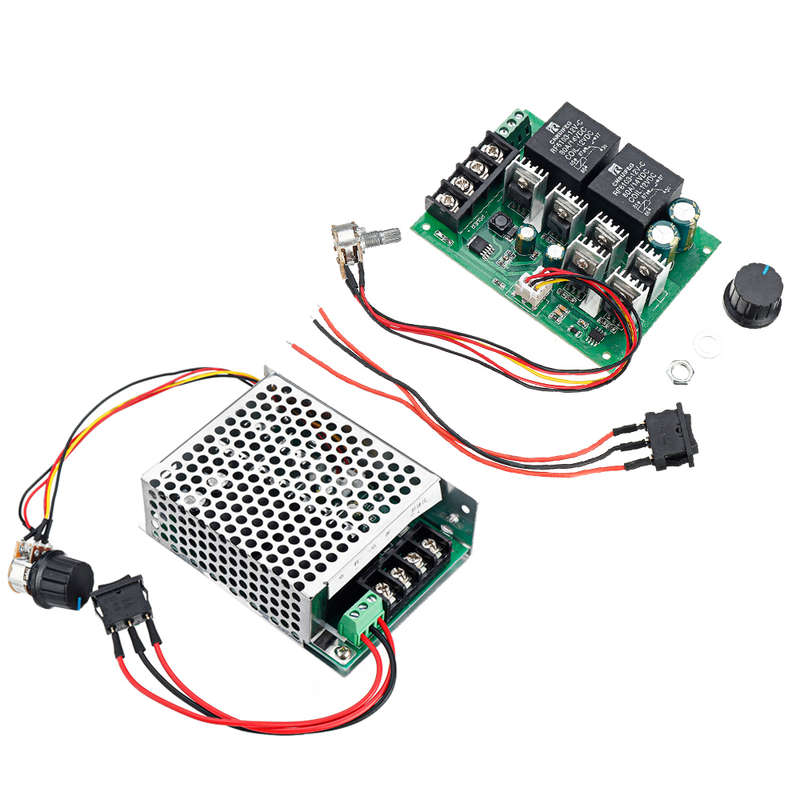

40A 2000W PWM DC Motor Controller Reverse Speed Switch Forward and Reverse Moto... (TYPE: BOARDONLY)

40A 2000W PWM DC Motor Controller Reverse Speed Switch Forward and Reverse Moto... (TYPE: BOARDONLY)

20 available / new
R393.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
641109807

SELECTED OPTION:
TYPE: BOARDONLY

With positive and negative switch, potentiometer knob with switch, you can use PLC to control positive and negative.
Specifications: Input voltage: DC10-50V Output voltage: linear under load Output limit current: 40A (use 20A for a long time, pay attention to keep the module smooth and heat dissipation conditions) Ultimate power: 2000W Speed regulation type: flow regulation Speed regulation method: potentiometer (linear) Speed control duty cycle range: 0-100% Control frequency: 25KHZ Wiring type: Barrier terminal block Knob cord length: 20CM Module size: 110*78*38mm Net product: 245g Motherboard installation size: 100*76*28mm Potentiometer opening according to installation: 7MM Note:
Before powering on, make sure that the positive and negative connections are correct. Do not touch the heat sink with the wiring, which may burn the circuit board. Note that this is not a power supply module, it must be connected to the motor to adjust the speed, the output of the multimeter will not change without the motor, and it cannot be connected to AC power.
Package Included:
1 x40A 2000W PWM DC Motor Controller(you can choose with case or not)
