Name: 40A 24-48V MICROCARE Auto Solar LCD Charge Controller (20-150 Voc) made in SA
SKU: MPPT-LCD-40A-LI
Price: 7500.00 ZAR
Availability: SoldOut

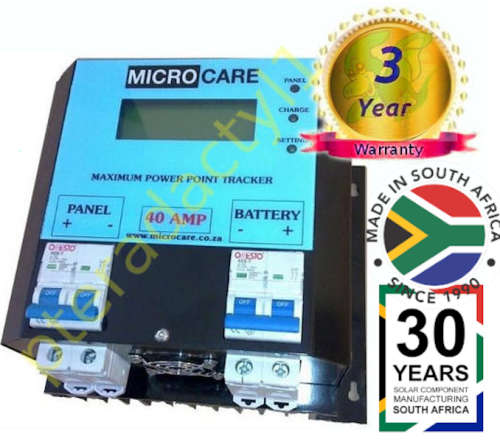

40A 24-48V MICROCARE Auto Solar LCD Charge Controller (20-150 Voc) made in SA

New

4 were available

R7,500.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 10 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

pteradactyl11124

100.00 % Positive ratings

Buyer protection

How you're covered

Returns

Warranty Type: Manufacturer Installation must be approved by Microcare and is against defects in workmanship and materials, fair wear and tear accepted, for a period of 3 (three) years from date of delivery/collection and is based on a carry-in basis, T&Cs applicable.

Get it now, pay later

Condition

New

Location

South Africa

Product code

MPPT-LCD-40A-LI

Bob Shop ID

606063469

Microcare 40A 24-48V Auto SOLAR LCD Charge Controller is suitable to charge Lead Acid/AGM/GEL and Lithium-Ion batteries.
Product Overview:

12v LCD model (specifically 12v only) available on special request for price use Q&A.

MPPT OPERATION DESCRIPTION:

Above and below schematics show how an MPPT functions during the course of a day.

In the morning, as soon as the MPPT detects that the Panel Voltage is at a usable level (MPPT charge entry voltage): it starts to charge
the batteries at maximum efficiency in a BOOST mode which has a nominal voltage of 14.5V per 12V battery bank. If however the batteries
are detected to not be uniformly discharged, the MPPT will go into EQUALISE mode to restore the battery bank balance before switching to
BOOST mode as its primary charge mode.
The MPPT maintains this mode until the batteries reach the boost voltage and the charge current decreases to a level below a nominal changeable level of 6 Amps.
The MPPT then steps down the charge voltage to a nominal voltage of 13.8V per 12V battery bank in FLOAT mode. The MPPT will attempt to maintain
FLOAT mode for as long as the panel voltage is present.
If no panel voltages present, the MPPT goes into a sleep state until it detects a rise in panel voltage indicating a new day for charging.

Why you should consider buying this MICROCARE product:
Proudly South African with 30 years of manufacturing with many units having been sold locally and internationally.
Service and repair of the products at a minimum cost due to local manufacture.

Order Lead Time: Normally in stock at Microcare and orders take approx 48 hours working days to process on receipt of your payment.
Should this MPPT be out of stock and needs to be built it will take approx 5 - 7 working days before order will be ready for shipping.
When ordering if to be used with Li-Ion batteries please supply battery info so that the correct software can be configured.
Order payment within 2 days preferred, maximum 7 days.

Warranty: See warranty tab for details.
