Description : The gadget is a wireless remote control key fob, which comes with ultra-strong Duplicating & Cloning function, Ultra-small error of copying data code and copy oscillation resistance. It support remotely and wirelessly control your roller shutter door, garage door and other telecommand equipments within 50m (free space).
Features : *Duplicate Your Existing Remote Controllers Such as,Vehicle Central Locking Systems, Garage Doors Access Control System, Electronic Gates, Electrical Appliances control, Car Sunroofs Control, Heating Systems Control, Light Switch, etc.
*Encoding Type Supported:Support for CAME TOP Series Remote Control and the most of other remote controls.
*Ultra-small error of copying data code and copy oscillation resistance.
*Easy to use:Easy to install and use, the 4 channel remote control system lets you take control of your gadgets, car and home or garage. Practical and Convenient. Support One-key smart-copying, High accuracy of copying and high effective of copying
*Widely Use:Perfect Suitable for controlling electrically Gate, Retractable Door, Garage Door, Electric Curtain Automobile, Motorcycle and other telecommand equipments(short-range), etc.
*Strong Coping Performance(Works with the following remote control IC modules):Support Coping the following Codes: 2260(all manufacturers), 2262(All manufacturers), PT2264, 5326(All manufacturers), SC5262, HT600, HT680, HT6207, HT6010, HT6012, HT6014, SMC918series, 527(All manufacturers), 1527(All manufacturers), 2240(All manufacturers), HCS101, HCS200 HCS201(part code), HCS300 HCS301, part single chip microcomputer, etc. encoding chip(With this remote duplicator you can clone all 433.92MHz fixed code key fobs. Some remotes that use this frequency are listed above. If you fail in copying with proper operation, you might have to check whether your device has a chip above).
Specification : Material: Metal and PVC
Product Type:Learning Code (1527) Remote Control Key Fob
RF Frequency: 433.2 MHz
Match Code Way: Copying Via Face to Face(One to one key copy).
Channel Supported: Four Channel
Encoding Type: Learning Code(1527), Fixed Code(2262).
Button: 4 Buttons(A,B,C,D)
Powered By: 27A 12V Battery
Modulation System: ASK
Operating Voltage: DC12V
Operating Current:<25mA
Transmitting Power: +13dbm
Frequency Windage: ±0.2MHz
Transmission Distance: 50m (Free Space)
Color: Black
Main Item Size: 5.8x3.0x1.3cm / 2.28x1.18x0.51in
Main Item Weight: 58g/0.59oz
Package Size: 6.0x3.5* 1.5cm / 2.35x1.37x0.59in
Package Weight: 30g/1.05oz
Note:
1. It can't copy original car remote control, two-way remote control and rolling code remote control (Rolling code chips start with HCS commonly, such as HCS200, HCS201, HCS300, HCS301, etc.)
Operation Instructions:
Our remote control can copy the fixed codes and learning codes
1.Clear Out Code:
Press the A button and B button at the same time, the LED indicator will enter into the fast flashing status, it means that all the memory data is cleared (Please see the video above). You can repeat the above operating steps if the memory clear operation is not successful.
2.Duplicating (Learning)/Face to Face Copying(One to One Copying):
After cleared the memory, you can operate Face to Face Copying(One to One Copying), you left hands press the original remote control and your right hands press the duplicating remote control at the same time; put the two remote controls together as close as possible. For example, press the Button A of the 2 remote controls at the same time, the LED Indicator flashes fast, and you press the Button A of the duplicating remote control again, the LED indicator long light, it means that the original remote control of the A button A code has been copied into the duplicating remote control. The other 3 buttons are the same operation.
Package includeds : 1 x 433MHz RF 4-Channel Remote Control(Battery is Included)

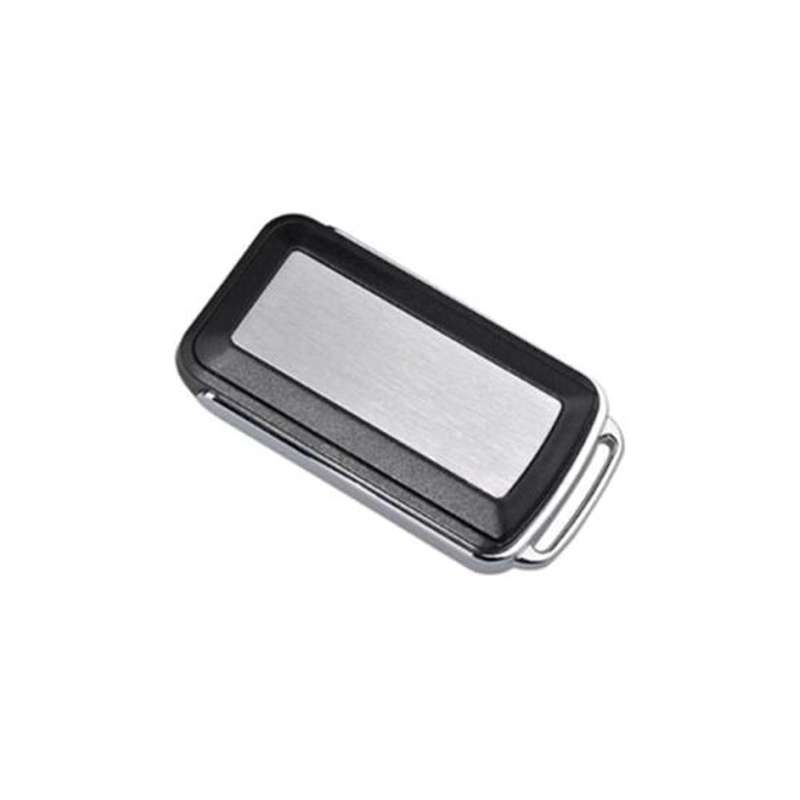

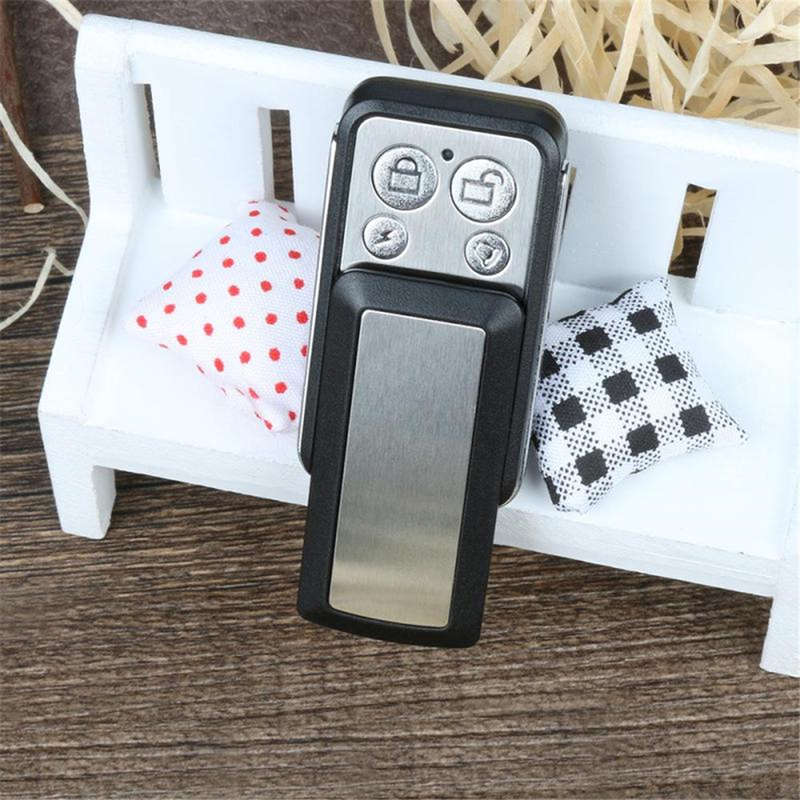

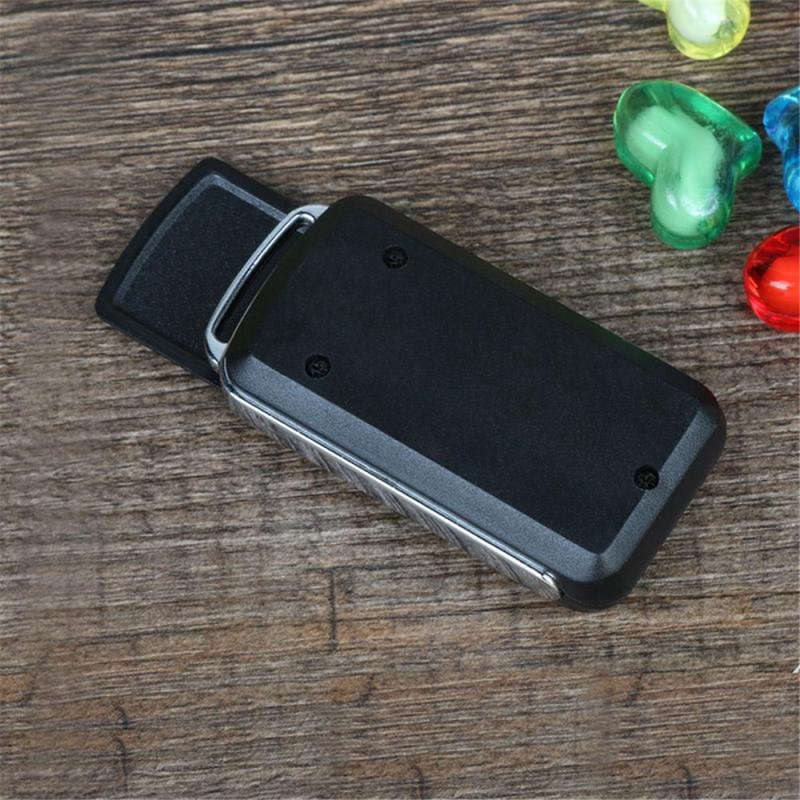

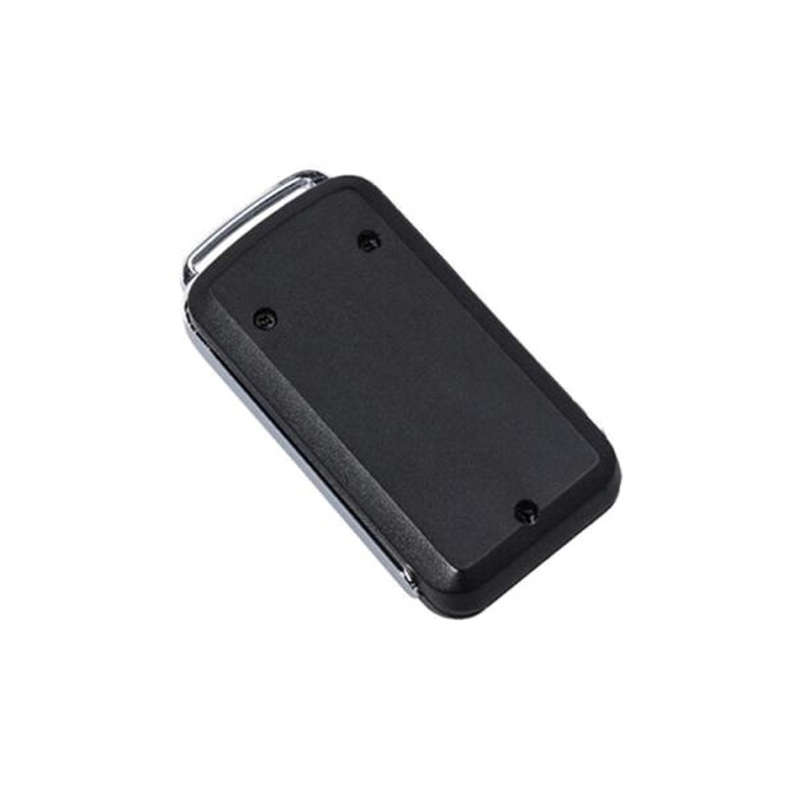

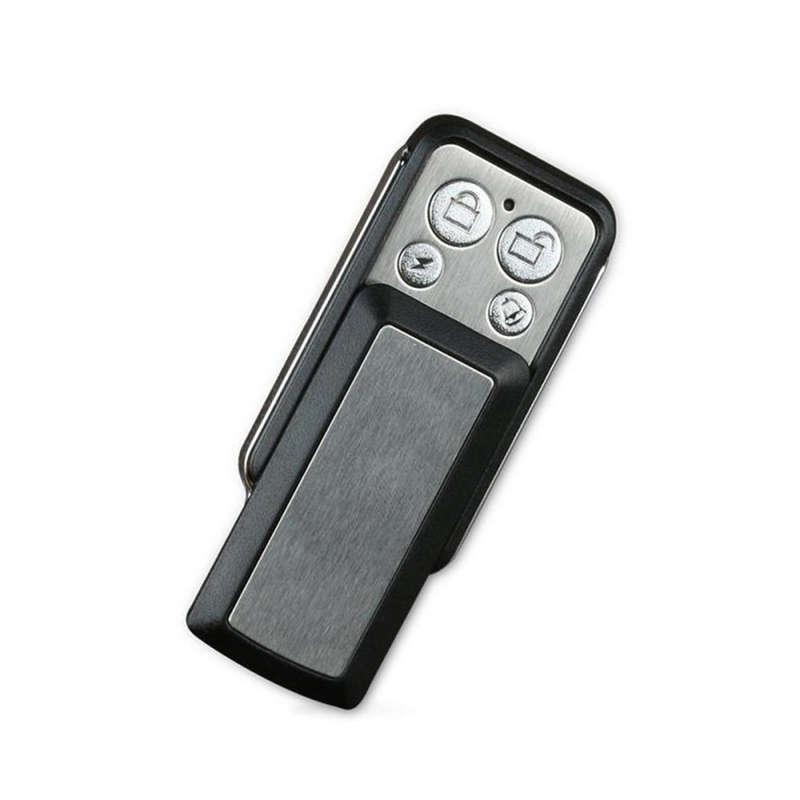

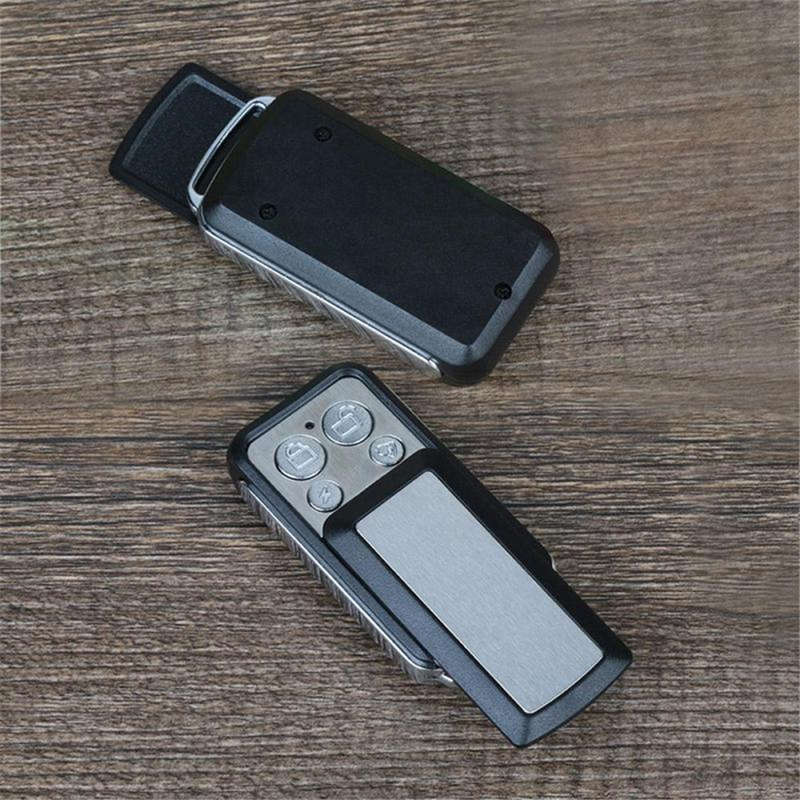

Details pictures :
