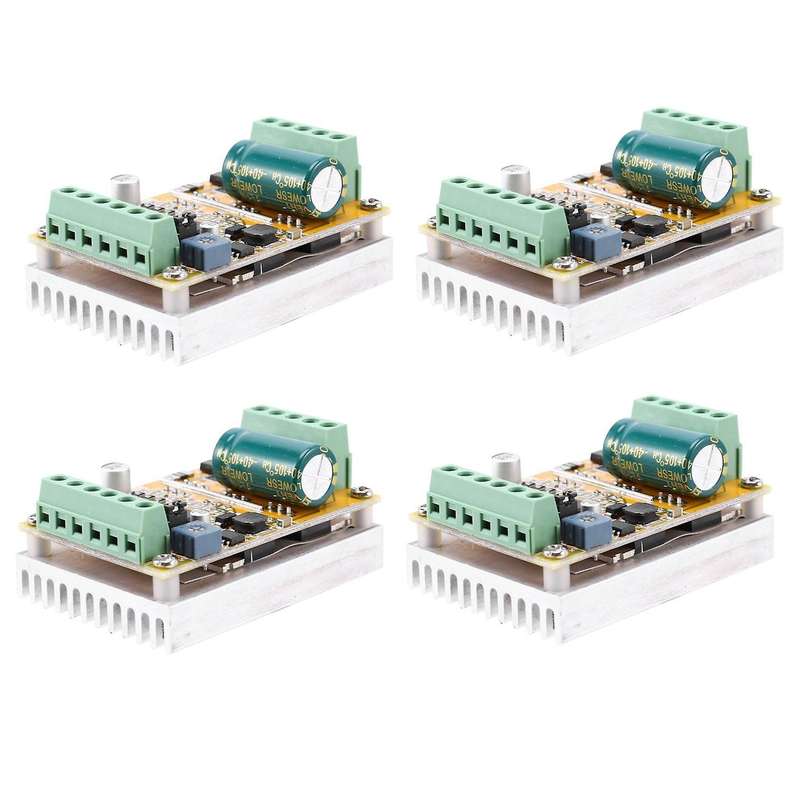

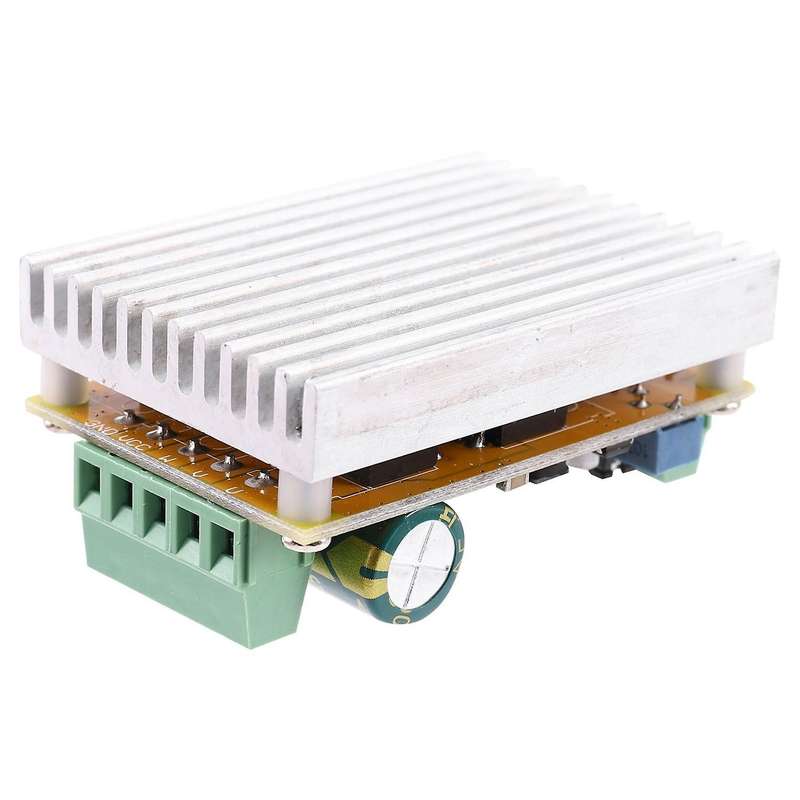

4x 380w 3 Phases Brushless Motor Controller Board

Interface Description:MA MB MC phase line output motor;5V GND motherboard with its own power supply (current does not exceed 30 mA);VDC GND main motor power supply (external DC power supply);SC speed pulse signal output;Control interface forward and backward (can also drive external switch);VR speed signal input (the integrated potentiometer speed control can also be connected to the external 0-5V speed control;brakeOverheat protection: Yes (more than 100, half the power is reduced)Maximum speed: 224000 RPM (2-pole motor), 74000 RPM (6-pole motor), 40000 RPM (12-pole motor), 35000 RPM (14-pole motor)Motherboard specifications:Product Name: 380W Brushless DC Motor DriverOperating voltage: 6.5-50VMaximum current: Nominal peak from 16 to 20AMaximum power: 380 WOvercurrent protection: no (external fuse required)Blocking protection: Yes (the current will be lowered automatically after blocking)Colour:yellowMaterial:plasticSize:length 63 MM x width 45 MM x height 30 MMPackage Contents:4xMotor controller boardPrecautions:1. The power circuit of the main board has no fuse, and the built-in self-addition will cause the board chip to be permanently damaged (even if it is 2 seconds).2. During normal operation, there is a sampling overcurrent protection at the motor output. Since the power and current of the module are very large, do not short circuit when the module does not work normally. Once the short circuit has the possibility of burning the line, the first wiring test machine uses low current and low voltage, after ok, high current and high voltage passes, because it is a bare board module for sale , pay attention to the wiring line insulation, strong voltage is not allowed to touch the board parts.3. Do not connect the motor that is clearly inconsistentwith the voltage and current of the drive module or that is far from each other.Only the above package content, other products are not included.Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
