4x4 Ultra HD 4k HDR HDMI Matrix Switch / Splitter | HDMI v2.0b with IR Remote & EDID

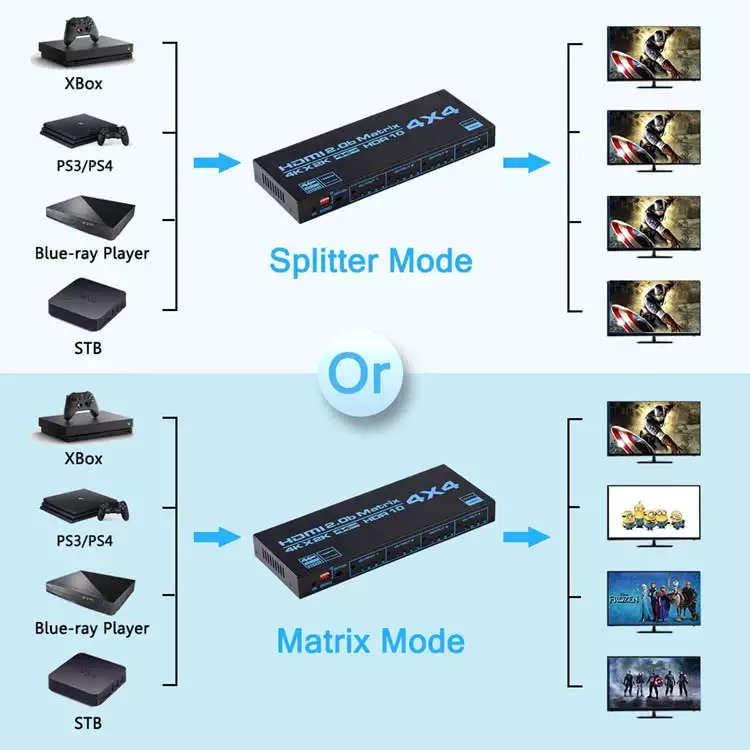

Make the 4x4 True Matrix Switch / Splitter the heart of any truly complex and impressive home theater system. The device features 4 inputs and 4 independently assignable outputs giving you true flexibility and the ability to have various media playing on different screens. Great for choreographing an awe inspiring multi-media experience or simply allowing multiple members of the family the freedom to watch from whatever source they choose on their own screen.

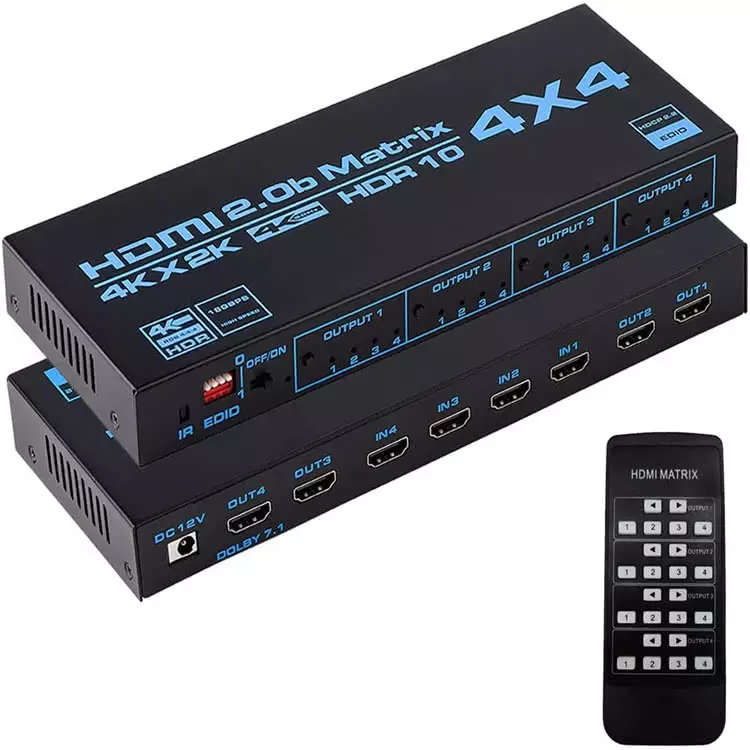

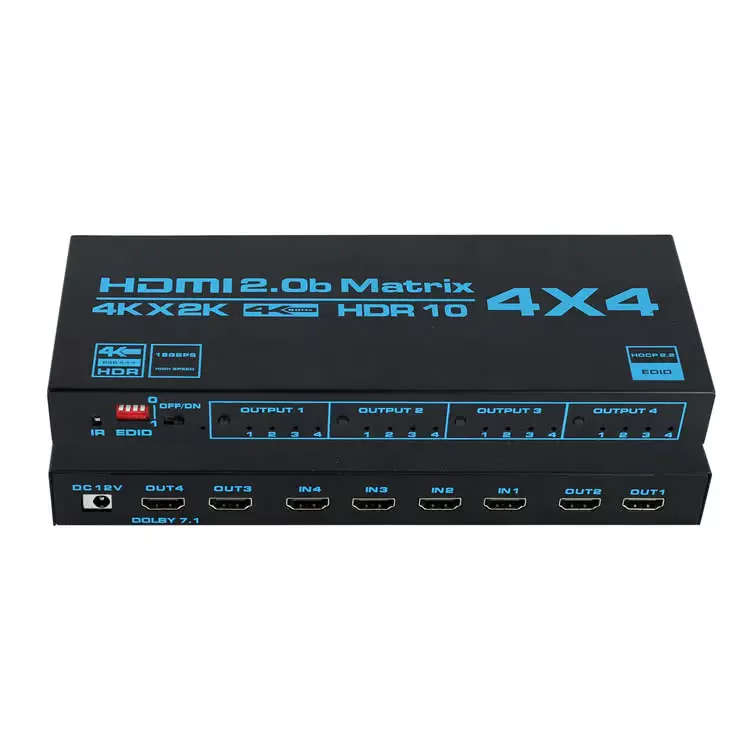

Please note: The image displayed on product is the back and front how unit looks like.
Specifications :
- Support for Deep Color and HDR on 4k Ultra HD.
- Auto skip for unconnected inputs.
- Operating temp: -5 to +35 degrees C (-41 to +95 degrees F)
- Max working current: 1800mA

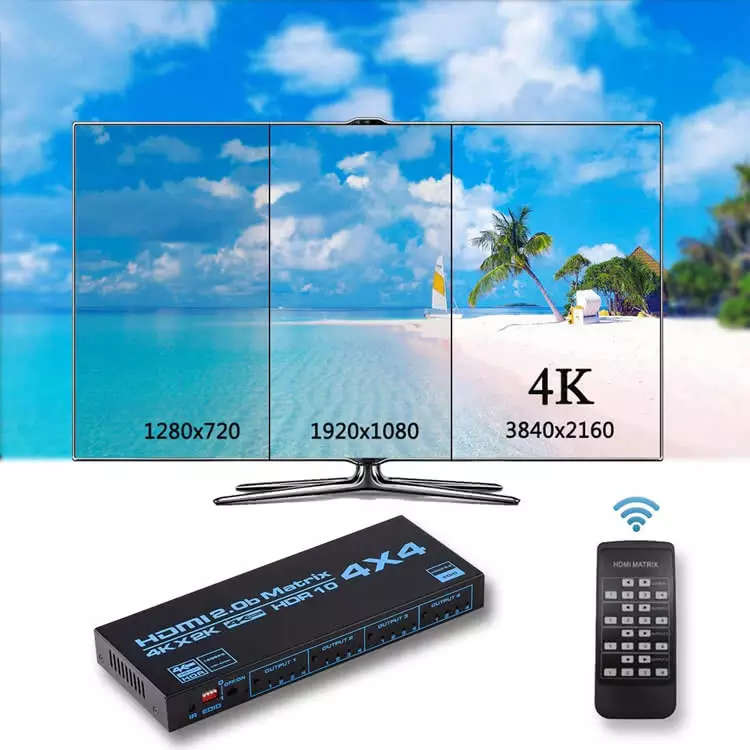

- Support Resolution : Ultra HD 4k / 3840 x 2160 @ 60hz, 60hz @ 1080p / 1080i / 720p / 576p / 480p / 576i / 480i
Full-HD Chain: 4k/1080p which can be cascaded above 6 layers - HDMI v2.0b
- Support video color format: deep color 24bit/36bit
- Support audio format: PCM, Dolby-AC3, DTS 7.1, DSD, Dolby True HD, Dolby Master Audio
- HDMI output cable distance: <=15m (can be extended with amplifier in most cases)

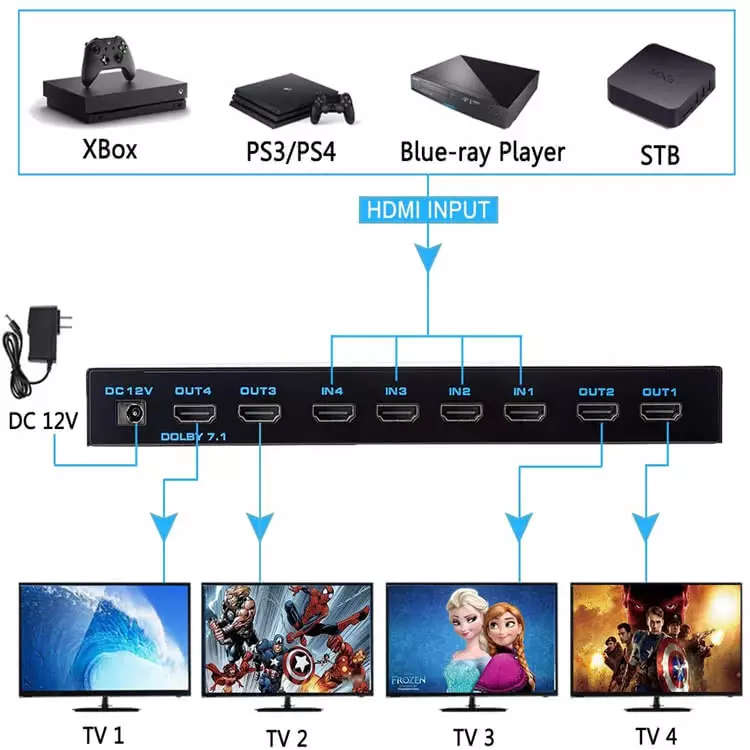

HDMI Matrix Switcher Installation and Wiring Setup Video
?v=ra30gqiHlEc
Features:
High bandwidth pass through with support for deep color / HDR and advanced digital audio formats.
4 inputs and 4 independent outputs.
IR remote control.
AC/DC Power Adapter included.
| EDID Mode | |
| 0000 | Reads EDID from Display |
| 0001 | 1080p ,2CH AUDIO |
| 0010 | 1080P, DOLBY/DTS 5.1 |
| 0011 | 1080p,HD AUDIO 7.1 |
| 0100 | 3D,2CH AUDIO |
| 0101 | 3D,DOLBY/DTS 5.1 |
| 0110 | 3D,HD AUDIO 7.1 |
| 0111 | 4K30,2CH AUDIO |
| 1000 | 4kK30,DOLBY/DTS 5.1 |
| 1001 | 4K30,HD AUDIO 7.1 |
| 1010 | 4K60{4:2:0} 2CH AUDIO |
| 1011 | 4K60{4:2:0} DOLBY/DTS 5.1 |
| 1100 | 4K60{4:2:0} HD AUDIO 7.1 |
| 1101 | 4K60,2CH AUDIO |
| 1110 | 4K60,DOLBY/DTS 5.1 |
| 1111 | 4K60,HD AUDIO DOLBY/DTS 7.1 |
HDMI CABLES AND EQUIPMENT SHOULD NEVER BE CONNECTED / DISCONNECTED WHILE YOUR EQUIPMENT IS POWERED ON SINCE THE HDMI PORT CARRIES A LOW VOLTAGE BUT CAN CAUSE DAMAGE TO EQUIPMENT WHEN PLUGGED / UNPLUGGED WHILE POWERED ON.
