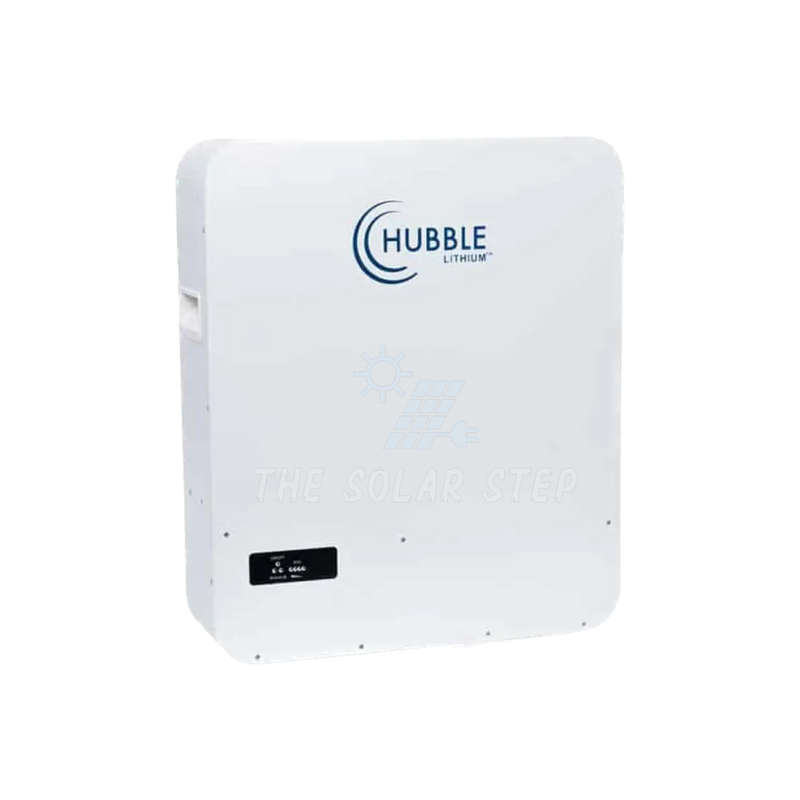

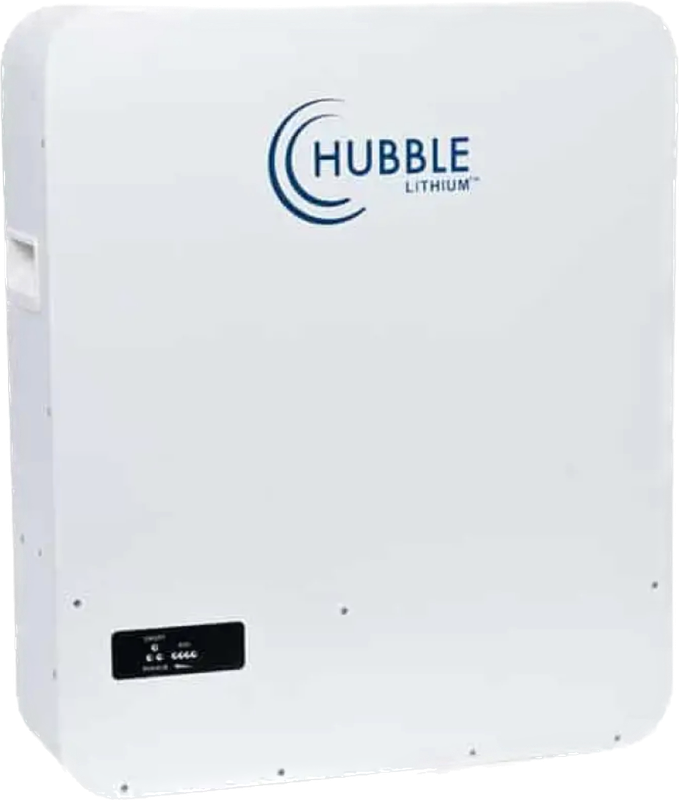

5.12kWh Hubble AM-5 LiFePO4 51.2V Battery

Hubble AM-5 LiFePO4 5.12kWh 51.2V Battery

The AM-5 is the first of its series to have LFP prismatic cells, featuring a 5.12kWh system capacity as well as monitoring capabilities via the Hubble Cloudlink.

Specification: 51.2V 5.12KWh
Rating: 1C
Parallel: up to 8 packs with full communications
Extras: Battery Link, rawl bolts, and wall bracket
CAN Bus: Yes
Hubble Cloudlink Ready: Yes

 Features:

• Low self discharge

• High cycle and service Life

• 1C High-performance lithium battery

• Easy wall mount or shelf rack installation

• Excellent high temperature performance

• Advanced BMS with current limiting function

• Compatible with most inverters and chargers

• High energy density and conversion efficiency

• Complete with integrated Battery Management System

• Hubble Cloudlink integration ready for cloud monitoring

• Heavy duty side handles for easy handling and mounting on the wall

• Built in protection for over-charge, over-discharge & over-temperature

• CAN Bus, fully integrates and communicates with leading Inverter brands

Technical Specifications:

Rated Capacity (5HR):  100Ah

Nominal Voltage: 51.2V

Design Capacity: 5.12KWH

Equalized Charge Voltage: 55.2V

Max. Continuous Charging Current: 100A

Max. Continuous Discharging Current: 100A

C Rating: 1C

Weight: Approx. 51kg

Monitoring: Cloudlink

Parallel: Parrallel connection up to 8 packs with full communications

Dimensions (WxDxH): 509.62mm x 173mm x 599.67mm

Ports: CAN-bus, Battery Link Ports

Cells: Prismatic LiFePO4

Design Life: ± 15 Years

Cycle Life: UNLIMITED CYCLES WITHIN THE HUBBLE LITHIUM 10-YEAR WARRANTY. (Ts & Cs Apply)

Certification: CE IEC UN38.3

Outer Package Material: White Bake Lacquer Steel Case

Operating Temperature

• Charging: -10°...
