5.2KVA / 5200W MUST Portable Plug & Play Power System + 4x 120AH Deep Cycle Gel Batteries (SOLAR ...

Description:

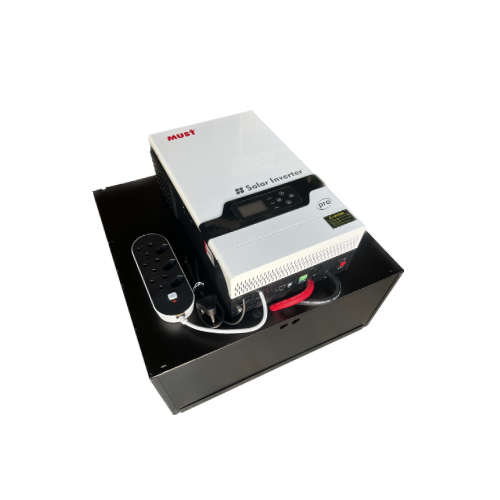

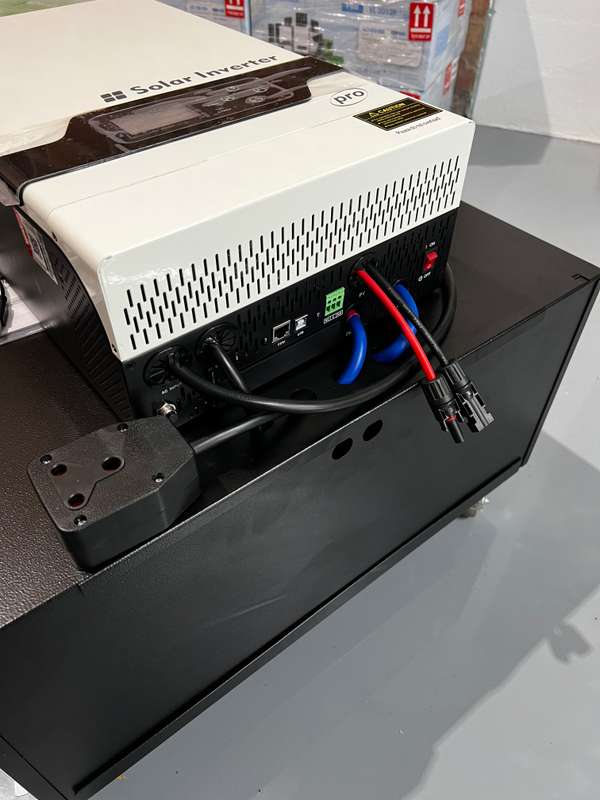

The all-in-one portable plug & play inverter battery trolley system is a heavy-duty backup power solution designed for load shedding. This compact unit, equipped with lockable wheels and sturdy handles, ensures easy mobility and operation. Ideal for homes, offices, and small businesses, it powers TVs, Wi-Fi, lights, computers, and essential electronics during outages.

With its solar-ready compatibility, users can integrate solar panels for extended off-grid power supply, making it a versatile and energy-efficient backup system.

Key Features:

Uninterrupted Backup Power

• Instant power transfer during load shedding
• Auto battery recharge when grid power is restored
• Supports essential loads (TV, Wi-Fi, lighting, computers) for up to 8-10 hours on a 250W load
• Solar-ready: Add solar panels to charge batteries without grid power

Hybrid Inverter (48V 5.2kVA / 5200W) MUST

• 5200W continuous output, 10400W surge capacity
• Pure sine wave output for clean, stable power
• Smart LCD settings for customized operation
• Built-in MPPT solar charge controller
• Max PV array open circuit voltage: 450V
• Battery-less operation: Can supply power directly from solar or grid
• Overload, short circuit, and deep discharge protection
• Cold start function for power restoration
• Supports USB & RS485 monitoring (Wi-Fi dongle available separately)

Technical Specifications:

Inverter Specifications:

• Rated Power: 5200W
• Surge Power: 10400W
• AC Input Voltage: 230V
• AC Output Voltage (Battery Mode): 230V ± 5%
• Efficiency (Peak): 93%
• Transfer Time: 10ms (PCs), 20ms (Home Appliances)
• Waveform: Pure sine wave

Battery & AC Charger:

• Battery Voltage: 48V
• Float Charge Voltage: 54.8V
• Overcharge Protection: 60V
• Max Charge Current: 80A

Solar Charger:

• Max PV Array Open Circuit Voltage: 450V
• MPPT Voltage Range: 150-430V
• Max Solar Charge Current: 80A

System Components:

• 1x Heavy-Duty Portable Steel Box (Lockable Wheels & Handles)
• 1x Surge Plug (1m, 2.5mm cabtyre)
• 1x Double-Sided Female Plug Socket
• 1x Fuse + Disconnector (Battery to Inverter)
• 1x MUST 5200W Hybrid Inverter
• 4x 120AH Deep Cycle Gel Batteries
• Dimensions: 60 cm x 60 cm x 45 cm

Battery Care & Maintenance

• Keep system plugged in to maintain full charge
• Avoid deep discharges for extended battery lifespan
• Use solar charging to reduce grid dependence

Warranty & Installation Requirements

• 2-Year Repair Warranty on inverter
• Installation must be performed by a qualified electrician with a valid Certificate of Compliance (COC)
• System must be installed in compliance with SANS 10142 standards
• Warranty claims require:
  • Installation photos
  • Valid COC certificate
  • Proof of installation by a certified professional
