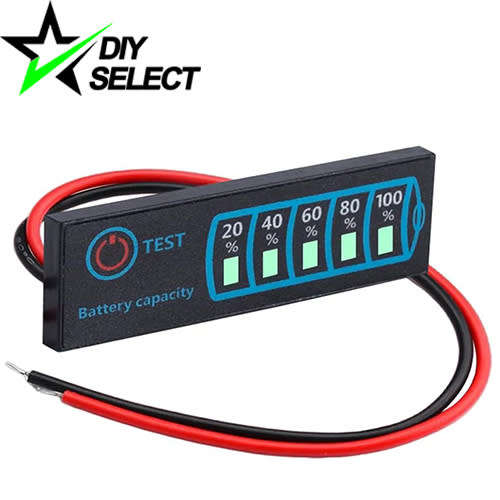

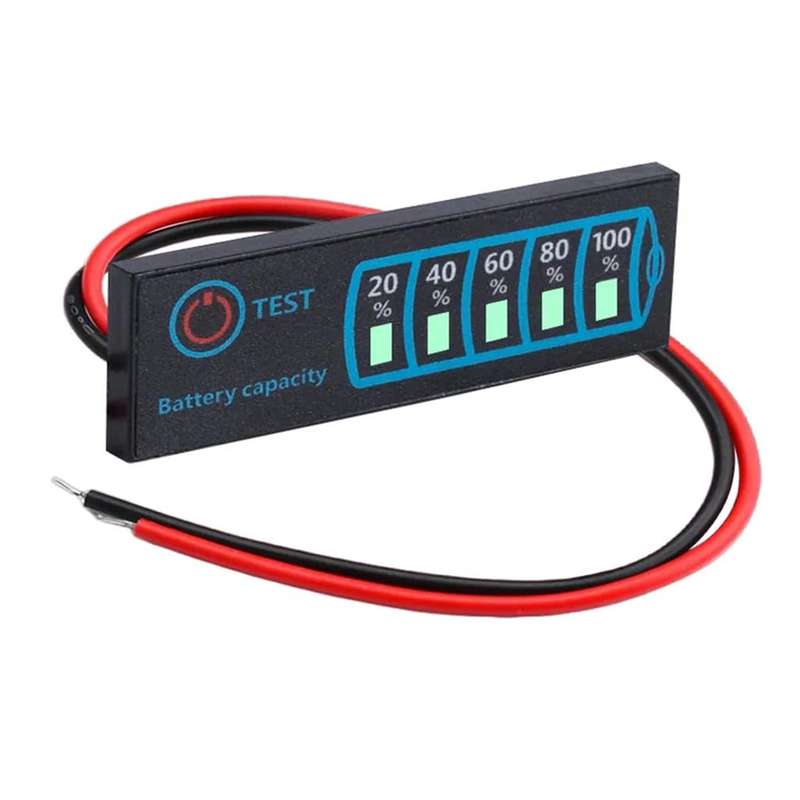

5-30V DC Lithium/Lipo/Lead Acid Battery Capacity Level Indicator 2S-8S **LOCAL STOCK**

5-30V DC Lithium/Lipo/Lead Acid Battery Capacity Level Indicator 2S-8S:

Specifications:

Voltage: 5 - 30V DC

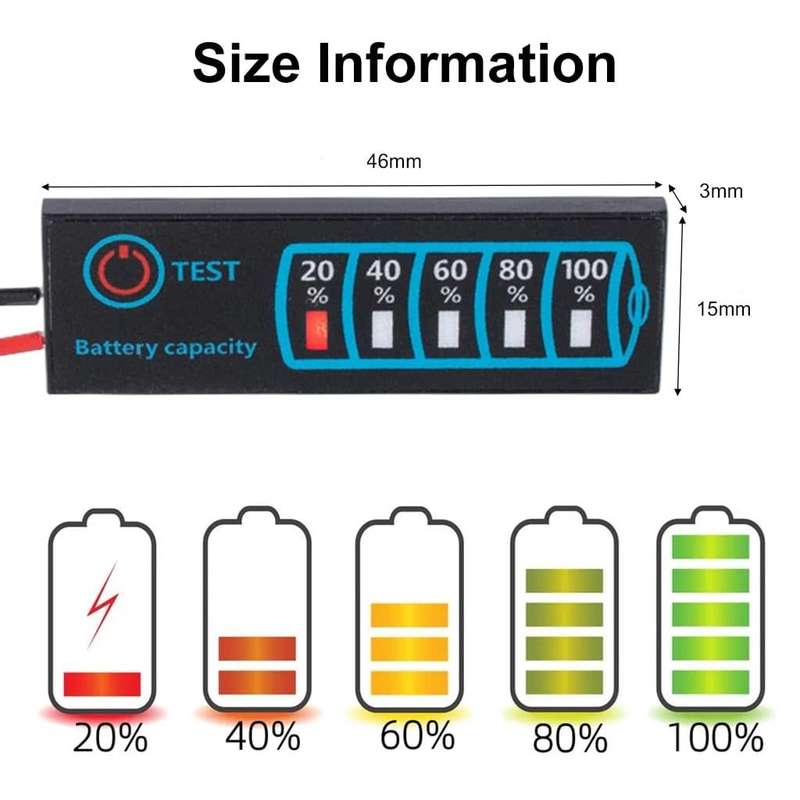

Size: 46 x 15 x 3mm

This advanced battery level indicator is suitable for 2S-8S 18650 Li-ion, Lipo, and Lead Acid batteries, with an operating voltage range of 5-30V. It ensures that you can test a wide range of battery types with a single, convenient device, ideal for a variety of electronics enthusiasts and professionals.

Easily differentiate between battery types thanks to the LED indicators that glow in specific colors (Red for lithium ternary, Green for lithium iron phosphate, Yellow for lead acid)

Press and hold the button for seamless navigation through setting modes, choosing the battery type, setting the string number, or voltage for precise monitoring. Save your settings with a long press or automatically after 5 seconds of inactivity, making it efficient and straightforward to use.

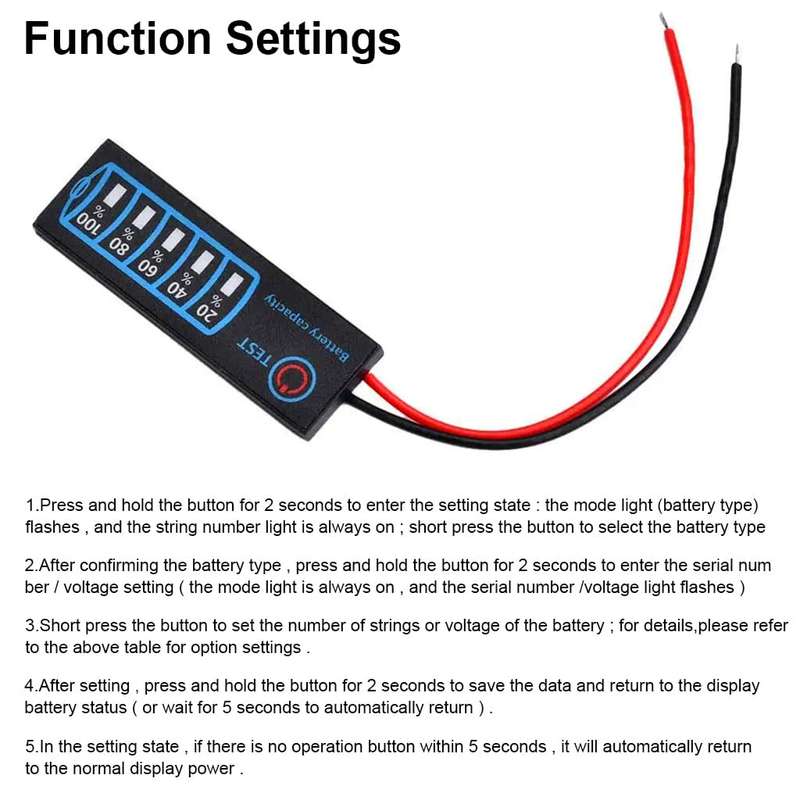

Programming the Unit:

The first time the product is powered on, the default is 3S voltage of ternary lithium battery. In the normal display state, if there is no operation key within 10 seconds, the product will automatically shut down, display and enter low power consumption.

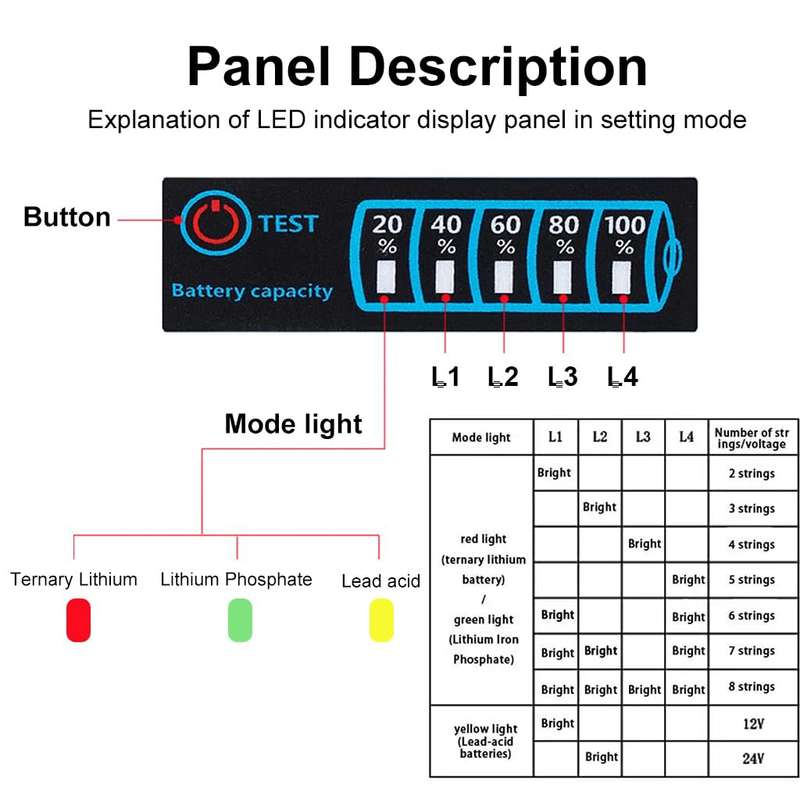

1. Press and hold the test button for 2 seconds to enter the setting state. The first led will light flash. Press the key to select your battery type based on the chart below. (Red, Green or Yellow)
2. After confirming the battery type, press and hold the key for 2 seconds to enter the string number/voltage setting (the mode light is always on, and the string number/voltage light flashes)
3. Press the button to set the battery string number or voltage; Please refer to the table for settings options.
4. After setting, press and hold the key for 2 seconds to save the data and return to the display of 4 power status (or wait for 5 seconds to automatically return)
5. In the setting state, if there is no operation button within 5 seconds, the power will automatically return to the normal display.
